HS 960 - Husqvarna Tow-Behind Sweeper (1991-04) Brush Assembly Parts Diagram

Tow-Behind Sweeper

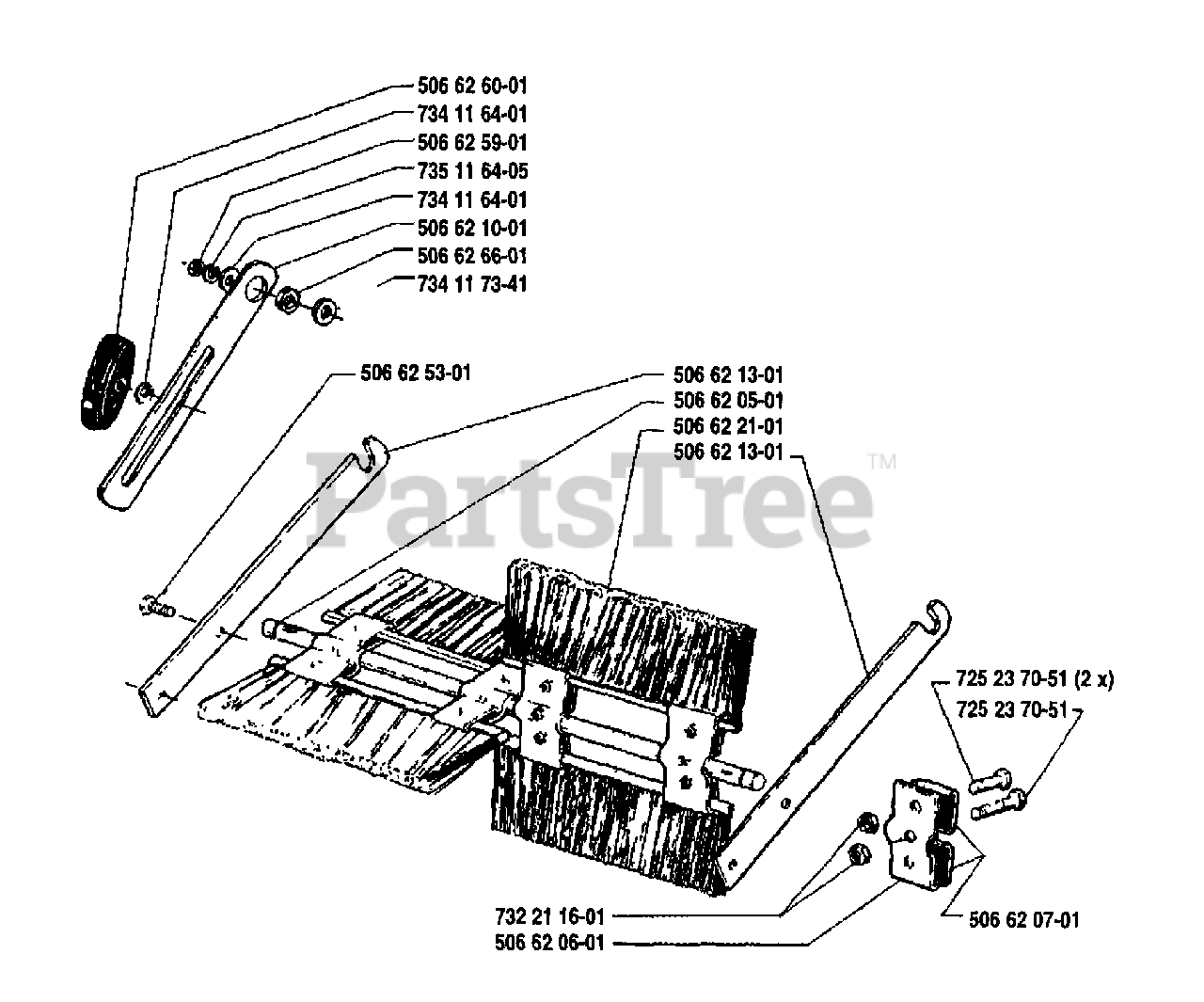

Brush Assembly Parts Diagram

  • Title
506626001

$

$

Not available

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

506625901

Husqvarna 506625901

HEX NUT
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

735116405

$

$

Not available

734116401

Husqvarna 734116401

WASHER BRB 8.4X17

$6.99

$

In Stock, only 4 left!

0

506621001

Husqvarna 506621001

HEIGHT ADJUSTMENT STRAP

$

$

Not available

506626601

$

$

Not available

734117341

Husqvarna 734117341

WASHER FL.

$

$

Not available

506625301

Husqvarna 506625301

HEX BOLT
(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

732211601

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$3.49

$

In Stock, Qty 11

0

506620601

Husqvarna 506620601

BRUSHRETAINER DOUBLE

$9.49

$

Usually ships in 3-10 days

0

725237051

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

725237051

Husqvarna 725237051

SCREW M6S 6X20
(Superseded to 725237071)

$7.49

$

Usually ships in 3-10 days

0

506620701

Husqvarna 506620701

BRUSH RETAINER SINGLE

$

$

Not available

506621301

Husqvarna 506621301

HOPPER MOUNT ARM

$

$

Not available

506620501

Husqvarna 506620501

BRUSHSHAFT-38Ä
(Superseded to 601002177)

$

$

Not available

506622101

Husqvarna 506622101

SWEEPER BRUSH
(Superseded to 601000974)

$

$

Not available

506621301

Husqvarna 506621301

HOPPER MOUNT ARM

$

$

Not available
