HS 720 R (41AJHS-C954) - Cub Cadet Trimmer Plus Hedge Trimmer Attachment General Assembly Parts Diagram

Trimmer Plus Hedge Trimmer Attachment

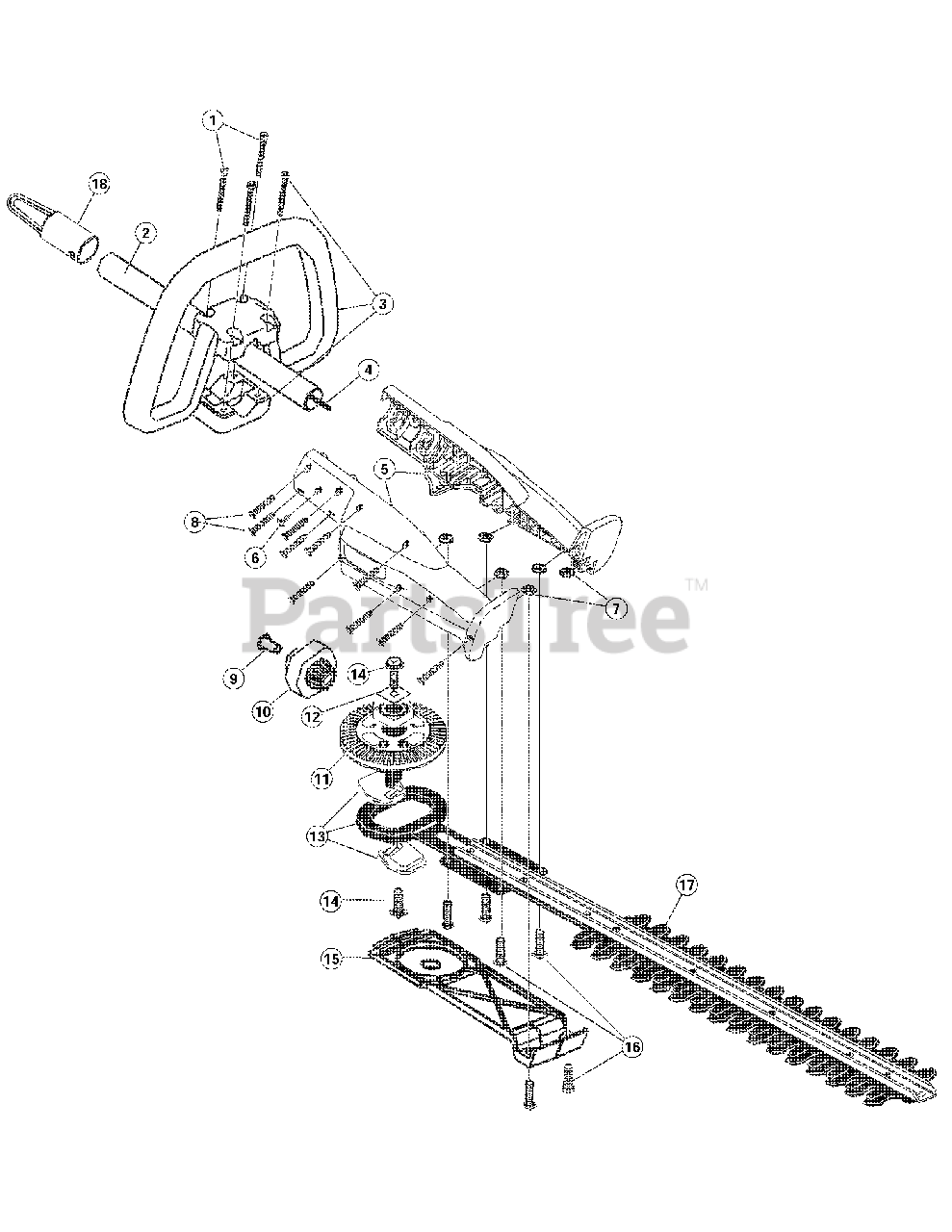

General Assembly Parts Diagram

  • Title

1

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-1220

Drive Shaft Housing Assembly

$

$

Not available

3

Cub Cadet 791-180869

Loop Handle Assembly

$

$

Not available

4

Cub Cadet 791-181840

Drive Shaft Assembly

$

$

Not available

5

Cub Cadet 753-1219

Housing Set

$

$

Not available

6

Cub Cadet 791-181629

Anti-Rotation Screw

$

$

Not available

7

Cub Cadet 791-181843

Nut

$

$

Not available

8

Cub Cadet 791-181844

Housing Screw

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-181851

Insulator

$7.49

$

In Stock, Qty 6

0

10

Cub Cadet 791-181845

Pinion Gear

$

$

Not available

11

Cub Cadet 791-181846

Bevel Gear Asm (Includes items 12-14)

$

$

Not available

12

Cub Cadet 791-182169

Washer

$

$

Not available

13

Cub Cadet 791-181847

Cam Assembly

$

$

Not available

14

Cub Cadet 791-181848

Screw

$

$

Not available

15

Cub Cadet 791-181849

Bottom Plate

$

$

Not available

16

Cub Cadet 791-181827

Screw

$

$

Not available

17

Cub Cadet 791-181660

Cutting Blade Assembly

$

$

Not available

18

Cub Cadet 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

Cub Cadet 791-180870

Handle Mounting Hardware (4 screws, item 1, with 4 Nuts)

Note: Not Shown

$

$

Not available
