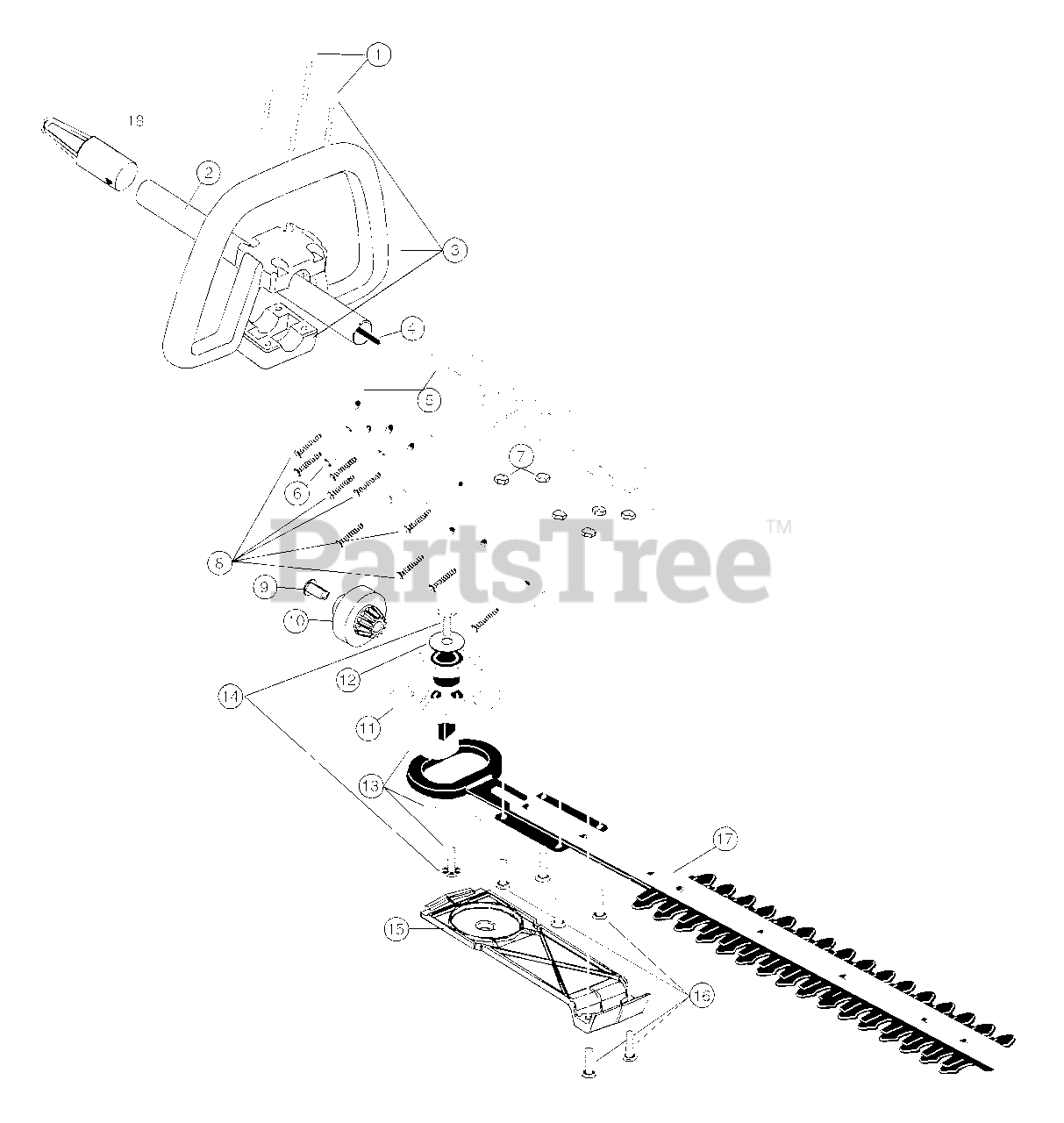

HS 720 R (41AJHS-A034) - Ryobi Trimmer Plus Hedge Trimmer Attachment Replacement Parts Parts Diagram

Trimmer Plus Hedge Trimmer Attachment

Replacement Parts Parts Diagram

  • Title

1

MTD 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

2

MTD 753-1220

Drive Shaft Housing Assembly

$

$

Not available

3

MTD 791-180869

Loop Handle Assembly

Note: (includes 1)

$

$

Not available

4

MTD 791-181840

Drive Shaft Assembly

$

$

Not available

5

MTD 791-181842

Housing Set

$

$

Not available

6

MTD 791-181629

Anti-Rotation Screw

$

$

Not available

7

MTD 791-181843

Nut

$

$

Not available

8

MTD 791-181844

Housing Screw

$6.49

$

Usually ships in 3-6 days

0

9

MTD 791-181851

Insulator

$7.49

$

In Stock, Qty 6

0

10

MTD 791-181845

Pinion Gear

$

$

Not available

11

MTD 791-181846

Bevel Gear Assembly

Note: (includes items 12-14)

$

$

Not available

12

MTD 791-182169

Washer

$

$

Not available

13

MTD 791-181847

Cam Assembly

Note: (includes 14)

$

$

Not available

14

MTD 791-181848

Screw

$

$

Not available

15

MTD 791-181849

Bottom Plate

$

$

Not available

16

MTD 791-181827

Screw

$

$

Not available

17

MTD 791-181660

Cutting Blade Assembly

$

$

Not available

18

MTD 791-612605

Hanger
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0
