HS 420 - Husqvarna Tow-Behind Sweeper (2007-05) PRODUCT COMPLETE Parts Diagram

Tow-Behind Sweeper

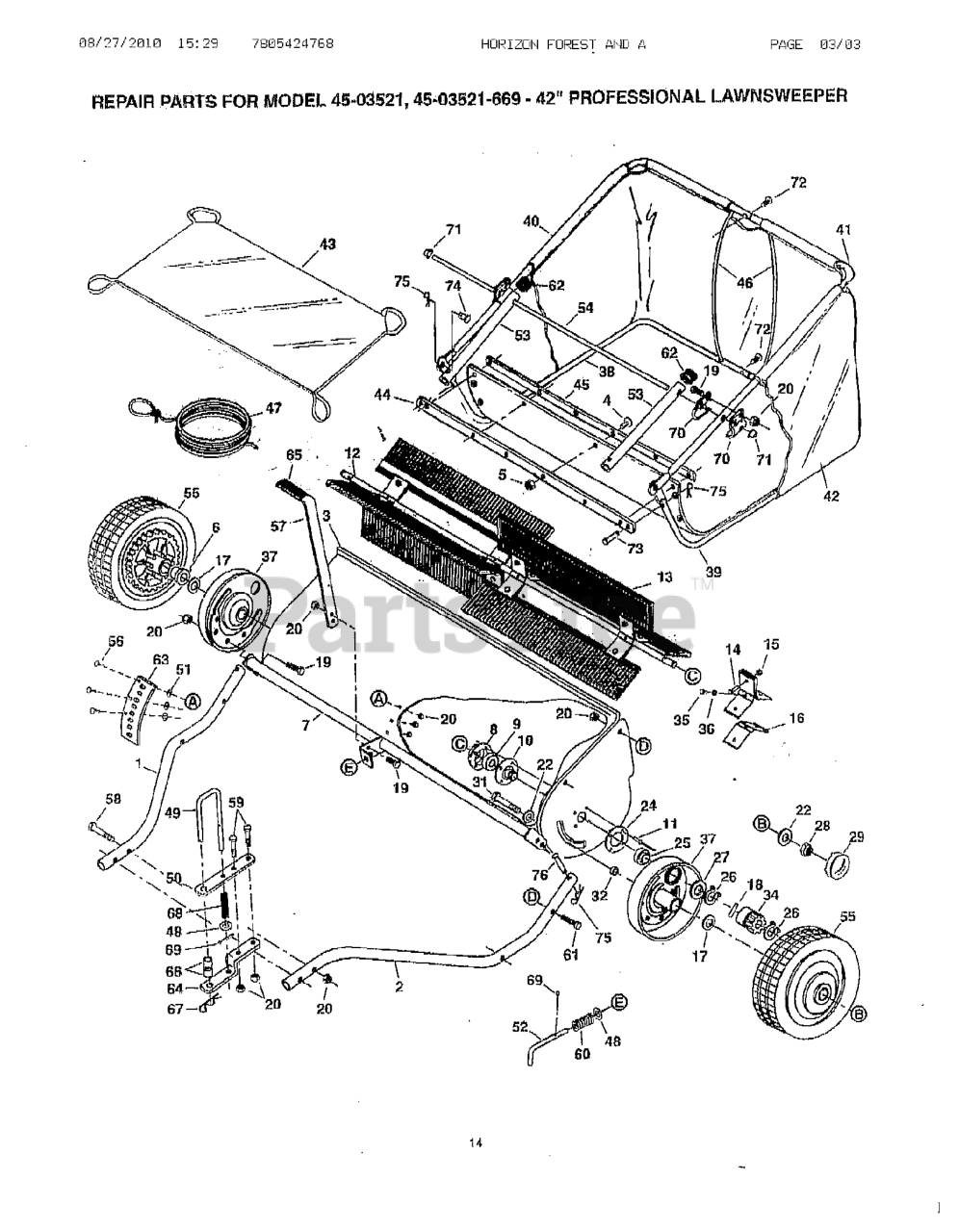

PRODUCT COMPLETE Parts Diagram

  • Title

4

Husqvarna 43346

Truss Hd. Slotted Scr. #10-32 x 5/8" Lg.

$

$

Not available

41

Husqvarna 46735

Tube, Upper Hopper Frame L.H.

Note: LH

$

$

Currently unavailable

11

Husqvarna 49152

Rivet

$

$

Currently unavailable

63

Husqvarna 25531

NEEDS DESCRIPTION

$

$

Currently unavailable

37

Husqvarna 64559

Dust Cover Assembly

$

$

Currently unavailable

33

Husqvarna 48652

Gear, Pinion R.H.

Note: "RH, NOT SHOWN"

$

$

Currently unavailable

7

Husqvarna 65923

NEEDS DESCRIPTION

$

$

Currently unavailable

69

Husqvarna 142

Pin, Cotter 1/8" x 3/4" Lg

$

$

Currently unavailable

13

Husqvarna 48557

Brush, 42"

$

$

Currently unavailable

52

Husqvarna 49608

NEEDS DESCRIPTION

Note: LOWER

$

$

Currently unavailable

22

Husqvarna 141

Washer, Flat 1-1/2" x .375" x .062"

$

$

Currently unavailable

28

Husqvarna 1038

Nut, Hex Lock 3/8-24 Thread

$

$

Currently unavailable

1

Husqvarna 46776

Hitch Tube, R.H.

Note: RH

$

$

Currently unavailable

44

Husqvarna 25430

Strap, Bag Frame

$

$

Currently unavailable

58

Husqvarna 46782

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Currently unavailable

56

Husqvarna 44326

Carriage Bolt, 5/16" x 1" (Grade 5)

$

$

Currently unavailable

55

Husqvarna 40247

NEEDS DESCRIPTION

Note: WITH BEARINGS

$

$

Currently unavailable

68

Husqvarna 44230

Spring, Hitch Pin

$

$

Currently unavailable

60

Husqvarna HA2394

NEEDS DESCRIPTION

$

$

Currently unavailable

65

Husqvarna 43943

Grip, Height Adjust

$

$

Currently unavailable

36

Husqvarna 43177

WASHER, 1/4" SPRING LOCK

$

$

Not available

62

Husqvarna 44481

Cap, Vinyl

$

$

Currently unavailable

30

Husqvarna 25440

Washer, Hub Cap

$

$

Currently unavailable

26

Husqvarna 1650-21

Retaining Ring - .594" I.D.

$

$

Currently unavailable

49

Husqvarna 49493

NEEDS DESCRIPTION

$

$

Currently unavailable

70

Husqvarna 23331

Hopper Mounting Clamps

$

$

Currently unavailable

10

Husqvarna 64733

Brush Bushing Ass'y.

$

$

Currently unavailable

31

Husqvarna 44961

Bolt, Hex 3/8-24 x 3-1/4" Lg.

$

$

Currently unavailable

66

Husqvarna 23368

Hitch Adjustment Tubes

$

$

Currently unavailable

15

Husqvarna 47189

Hex Nut, Nylock 1/4-20 Thread

$

$

Currently unavailable

53

Husqvarna 46781

Tube, Bag Arm

$

$

Currently unavailable

74

Husqvarna 48366

Pin, Clevis 3/8" x 1/2" (Special)

$

$

Not available

23

Husqvarna 44006

Washer, Flat .596 x .859 x .025

$

$

Currently unavailable

42

Husqvarna 46738

Hopper Bag

$

$

Currently unavailable

18

Husqvarna 47046

Dowel Pin (Drive)

Note: DRIVE

$

$

Currently unavailable

59

Husqvarna 43224

Bolt, Hex 5/16-18 x 2-1/4" Lg.

$

$

Currently unavailable

34

Husqvarna 48651

Gear, Pinion L.H.

Note: LH

$

$

Currently unavailable

29

Husqvarna 257432

NEEDS DESCRIPTION

$

$

Currently unavailable

16

Husqvarna 25137

Brush Retainer

$

$

Currently unavailable

47

Husqvarna 43737

Hopper Rope

$

$

Currently unavailable

76

Husqvarna 46867

Pin, Clevis 1/4" x 1-1/2" Lg.

$

$

Currently unavailable

21

Husqvarna 44911

Spacer, .41" x 1.125" x .50"

$

$

Currently unavailable

67

Husqvarna 43343

Hairpin Cotter, 3/32" x 2-5/16"

$

$

Not available

14

Husqvarna 43661

Hex Bolt 1/4-20 x 1.0" Lg.

$

$

Currently unavailable

20

Husqvarna 47810

Hex Nut, Nylock 5/16-18 Thread

$

$

Currently unavailable

2

Husqvarna 46777

Hitch Tube, L.H.

Note: LH

$

$

Currently unavailable

61

Husqvarna 43084

Hex Bolt, 5/16-18 x 1-3/4" (Grade 5)

$

$

Currently unavailable

9

Husqvarna 44232

BEARING. BALL

$

$

Currently unavailable

27

Husqvarna 44007

Fl.-Washer (Shim) .596 x 1.125 x .025

$

$

Currently unavailable

43

Husqvarna 46739

Wind Screen

$

$

Currently unavailable

38

Husqvarna 46732

Tube, Lower Hopper Frame R.H.

Note: RH

$

$

Currently unavailable

8

Husqvarna 1629-56

Retainer, Dust Cover

$

$

Currently unavailable

3

Husqvarna 68164

NEEDS DESCRIPTION

$

$

Currently unavailable

46

Husqvarna 43938

Hopper Support Rod 34" Lg.

$

$

Currently unavailable

17

Husqvarna 44008

WASHER, FLAT 3/4ID X 1-1/8 00 X .030 THK

$

$

Currently unavailable

32

Husqvarna 23400

Spacer 13/32 x 5/8 x 3/16

$

$

Currently unavailable

64

Husqvarna 23687

Bracket, Hitch

$

$

Currently unavailable

39

Husqvarna 46733

Tube, Lower Hopper Frame L.H.

Note: LH

$

$

Currently unavailable

5

Husqvarna 47171

Nylock Nut, #10-32

Note: "42"""

$

$

Currently unavailable

12

Husqvarna 25138

Brush Shaft

$

$

Currently unavailable

6

Husqvarna 45088

Wheel Bearing

$

$

Currently unavailable

48

Husqvarna 43070

Washer, 3/8" Std. Wrt.

$

$

Not available

50

Husqvarna 24192

Bracket, Hitch (Straight)

Note: STRAIGHT

$

$

Currently unavailable

71

Husqvarna 44917

Palnut, 3/8"

$

$

Currently unavailable

25

Husqvarna 46219

Spacer, .78" x 1.25" x .50"

$

$

Currently unavailable

51

Husqvarna 23625

Spacer, 3/8" I.D. x 5/8" O.D. x 1/4"

Note: UPPER

$

$

Currently unavailable

24

Husqvarna 23336

Washer, Special

$

$

Currently unavailable

19

Husqvarna 43182

Bolt, Hex 5/16-18 x 3/4" Lg.

$

$

Currently unavailable

72

Husqvarna 48402

Plug, 1/4"

$

$

Not available

40

Husqvarna 46734

Tube, Upper Hopper Frame R.H.

Note: RH

$

$

Currently unavailable

75

Husqvarna 43055

Hairpin Cotter, 3/32" x 1.8"

$

$

Currently unavailable

45

Husqvarna 24190

Retainer, Bag

$

$

Currently unavailable

57

Husqvarna 25537

NEEDS DESCRIPTION

$

$

Currently unavailable

54

Husqvarna 46823

Rod, Hopper Bag Pivot

$

$

Currently unavailable

35

Husqvarna 43866

Hex Bolt 1/4" x 5/8" Lg.

$

$

Currently unavailable
