HS 420 - Husqvarna Tow-Behind Sweeper (2005-04) PRODUCT COMPLETE Parts Diagram

Tow-Behind Sweeper

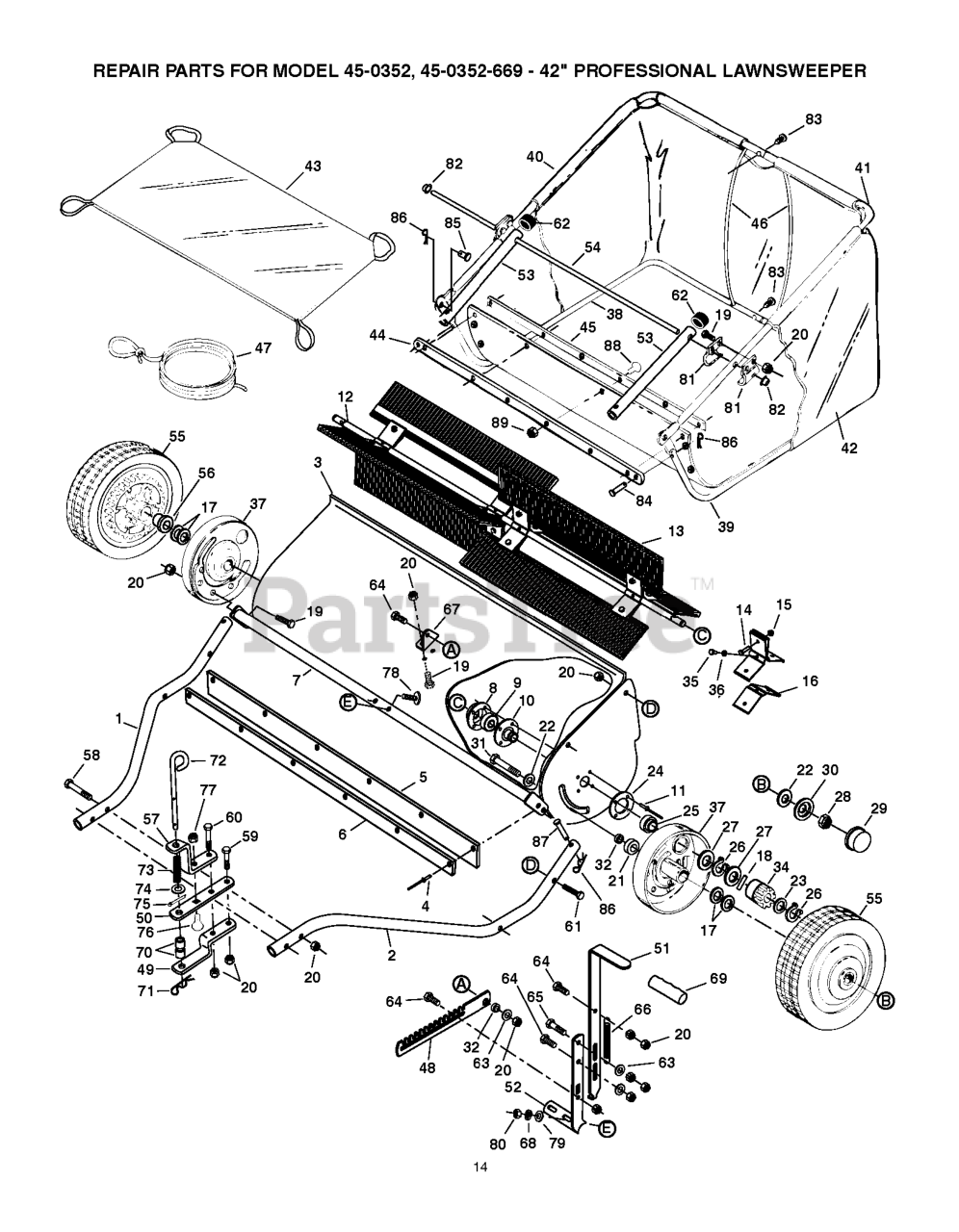

PRODUCT COMPLETE Parts Diagram

  • Title

25

Husqvarna 46219

Spacer, .78" x 1.25" x .50"

$

$

Currently unavailable

62

Husqvarna 44481

Cap, Vinyl

$

$

Currently unavailable

87

Husqvarna 46867

Pin, Clevis 1/4" x 1-1/2" Lg.

$

$

Currently unavailable

69

Husqvarna 43943

Grip, Height Adjust

$

$

Currently unavailable

48

Husqvarna 24864

Strap, Height Adjustment

$

$

Currently unavailable

58

Husqvarna 46782

Bolt, Hex 5/16-18 x 3" Lg.

$

$

Currently unavailable

41

Husqvarna 46735

Tube, Upper Hopper Frame L.H.

Note: LH

$

$

Currently unavailable

73

Husqvarna 44230

Spring, Hitch Pin

$

$

Currently unavailable

34

Husqvarna 48651

Gear, Pinion L.H.

Note: LH

$

$

Currently unavailable

81

Husqvarna 23331

Hopper Mounting Clamps

$

$

Currently unavailable

15

Husqvarna 47189

Hex Nut, Nylock 1/4-20 Thread

$

$

Currently unavailable

61

Husqvarna 43084

Hex Bolt, 5/16-18 x 1-3/4" (Grade 5)

$

$

Currently unavailable

20

Husqvarna 47810

Hex Nut, Nylock 5/16-18 Thread

$

$

Currently unavailable

30

Husqvarna 25440

Washer, Hub Cap

$

$

Currently unavailable

24

Husqvarna 23336

Washer, Special

$

$

Currently unavailable

7

Husqvarna 63463

Height Adjustment Tube Ass'y.

$

$

Currently unavailable

40

Husqvarna 46734

Tube, Upper Hopper Frame R.H.

Note: RH

$

$

Currently unavailable

49

Husqvarna 23687

Bracket, Hitch

$

$

Currently unavailable

21

Husqvarna 44911

Spacer, .41" x 1.125" x .50"

$

$

Currently unavailable

1

Husqvarna 46776

Hitch Tube, R.H.

Note: RH

$

$

Currently unavailable

23

Husqvarna 44006

Washer, Flat .596 x .859 x .025

$

$

Currently unavailable

11

Husqvarna 49152

Rivet

$

$

Currently unavailable

72

Husqvarna 46816

Pin, Hitch

$

$

Currently unavailable

45

Husqvarna 24190

Retainer, Bag

$

$

Currently unavailable

33

Husqvarna 48652

Gear, Pinion R.H.

Note: "RH, NOT SHOWN"

$

$

Currently unavailable

79

Husqvarna 44695

Washer, Bowed 1" x .32" x .06"

$

$

Currently unavailable

17

Husqvarna 1540-31

Washer, Flat .78" x 1.25" x .06"

$

$

Currently unavailable

8

Husqvarna 1629-56

Retainer, Dust Cover

$

$

Currently unavailable

82

Husqvarna 44917

Palnut, 3/8"

$

$

Currently unavailable

29

Husqvarna 43014

Hub Cap

$

$

Currently unavailable

88

Husqvarna 43346

Truss Hd. Slotted Scr. #10-32 x 5/8" Lg.

$

$

Not available

63

Husqvarna 43081

Washer, Flat 5/16" Std. Wrt.

$

$

Not available

28

Husqvarna 1038

Nut, Hex Lock 3/8-24 Thread

$

$

Currently unavailable

27

Husqvarna 44007

Fl.-Washer (Shim) .596 x 1.125 x .025

$

$

Currently unavailable

71

Husqvarna 43343

Hairpin Cotter, 3/32" x 2-5/16"

$

$

Not available

3

Husqvarna 64753

Housing Assembly

$

$

Currently unavailable

89

Husqvarna 47171

Nylock Nut, #10-32

$

$

Currently unavailable

51

Husqvarna 24865

Handle, Upper Height Adjustment

Note: UPPER

$

$

Currently unavailable

36

Husqvarna 43177

WASHER, 1/4" SPRING LOCK

$

$

Not available

76

Husqvarna 43350

Bolt, Carriage 3/8-16 x 1" (Grade 5)

$

$

Not available

74

Husqvarna 43352

Washer, 7/16" Flat

$

$

Not available

75

Husqvarna 142

Pin, Cotter 1/8" x 3/4" Lg

$

$

Currently unavailable

60

Husqvarna 44292

Bolt, Hex 5/16-18 x 2-1/2"

$

$

Currently unavailable

56

Husqvarna 49306

Wheel Bearing

$

$

Currently unavailable

67

Husqvarna 25407

Angle Bracket

$

$

Currently unavailable

31

Husqvarna 44961

Bolt, Hex 3/8-24 x 3-1/4" Lg.

$

$

Currently unavailable

26

Husqvarna 1650-21

Retaining Ring - .594" I.D.

$

$

Currently unavailable

53

Husqvarna 46781

Tube, Bag Arm

$

$

Currently unavailable

42

Husqvarna 46738

Hopper Bag

$

$

Currently unavailable

22

Husqvarna 141

Washer, Flat 1-1/2" x .375" x .062"

$

$

Currently unavailable

13

Husqvarna 48557

Brush, 42"

$

$

Currently unavailable

14

Husqvarna 43661

Hex Bolt 1/4-20 x 1.0" Lg.

$

$

Currently unavailable

37

Husqvarna 64559

Dust Cover Assembly

$

$

Currently unavailable

43

Husqvarna 46739

Wind Screen

$

$

Currently unavailable

2

Husqvarna 46777

Hitch Tube, L.H.

Note: LH

$

$

Currently unavailable

46

Husqvarna 43938

Hopper Support Rod 34" Lg.

$

$

Currently unavailable

47

Husqvarna 43737

Hopper Rope

$

$

Currently unavailable

38

Husqvarna 46732

Tube, Lower Hopper Frame R.H.

Note: RH

$

$

Currently unavailable

39

Husqvarna 46733

Tube, Lower Hopper Frame L.H.

Note: LH

$

$

Currently unavailable

18

Husqvarna 47046

Dowel Pin (Drive)

Note: DRIVE

$

$

Currently unavailable

55

Husqvarna 49308

Wheel & Tire Ass'y.

Note: WITH BEARINGS

$

$

Currently unavailable

44

Husqvarna 25430

Strap, Bag Frame

$

$

Currently unavailable

50

Husqvarna 24192

Bracket, Hitch (Straight)

Note: STRAIGHT

$

$

Currently unavailable

83

Husqvarna 48402

Plug, 1/4"

$

$

Not available

10

Husqvarna 64733

Brush Bushing Ass'y.

$

$

Currently unavailable

54

Husqvarna 46823

Rod, Hopper Bag Pivot

$

$

Currently unavailable

66

Husqvarna 43000

Spring, Extension

$

$

Currently unavailable

70

Husqvarna 23368

Hitch Adjustment Tubes

$

$

Currently unavailable

64

Husqvarna 43063

Hex Bolt, 5/16-18 x 1" (Grade 5)

$

$

Not available

57

Husqvarna 23684

Bracket, Hitch Pin

$

$

Currently unavailable

19

Husqvarna 43182

Bolt, Hex 5/16-18 x 3/4" Lg.

$

$

Currently unavailable

5

Husqvarna 46778

Skirt, 42"

Note: "42"""

$

$

Currently unavailable

52

Husqvarna 24866

Handle, Lower Height Adjustment

Note: LOWER

$

$

Currently unavailable

65

Husqvarna 43840

Hex Bolt, 5/16-18 x 1-1/4" Lg.

$

$

Currently unavailable

77

Husqvarna HA21362

Hex Nut, Nylock 3/8-16 Thread

$

$

Currently unavailable

80

Husqvarna 43083

Nut, Hex 5/16-18 Thread

$

$

Not available

9

Husqvarna 44232

BEARING. BALL

$

$

Currently unavailable

4

Husqvarna 9M5732

Rivet

$

$

Currently unavailable

85

Husqvarna 48366

Pin, Clevis 3/8" x 1/2" (Special)

$

$

Not available

6

Husqvarna 24186

Retainer, Skirt

$

$

Not available

59

Husqvarna 43224

Bolt, Hex 5/16-18 x 2-1/4" Lg.

$

$

Currently unavailable

32

Husqvarna 23400

Spacer 13/32 x 5/8 x 3/16

$

$

Currently unavailable

86

Husqvarna 43055

Hairpin Cotter, 3/32" x 1.8"

$

$

Currently unavailable

84

Husqvarna 48365

Pin, Clevis 1/4" x 1-1/8" (Special)

$

$

Not available

78

Husqvarna 44947

Bolt, Cvd. Hd. 5/16-18 x 1-5/8" Lg.

$

$

Currently unavailable

16

Husqvarna 25137

Brush Retainer

$

$

Currently unavailable

12

Husqvarna 25138

Brush Shaft

$

$

Currently unavailable

68

Husqvarna 43086

Spring Lock Washer 5/16"

$

$

Not available

35

Husqvarna 43866

Hex Bolt 1/4" x 5/8" Lg.

$

$

Currently unavailable
