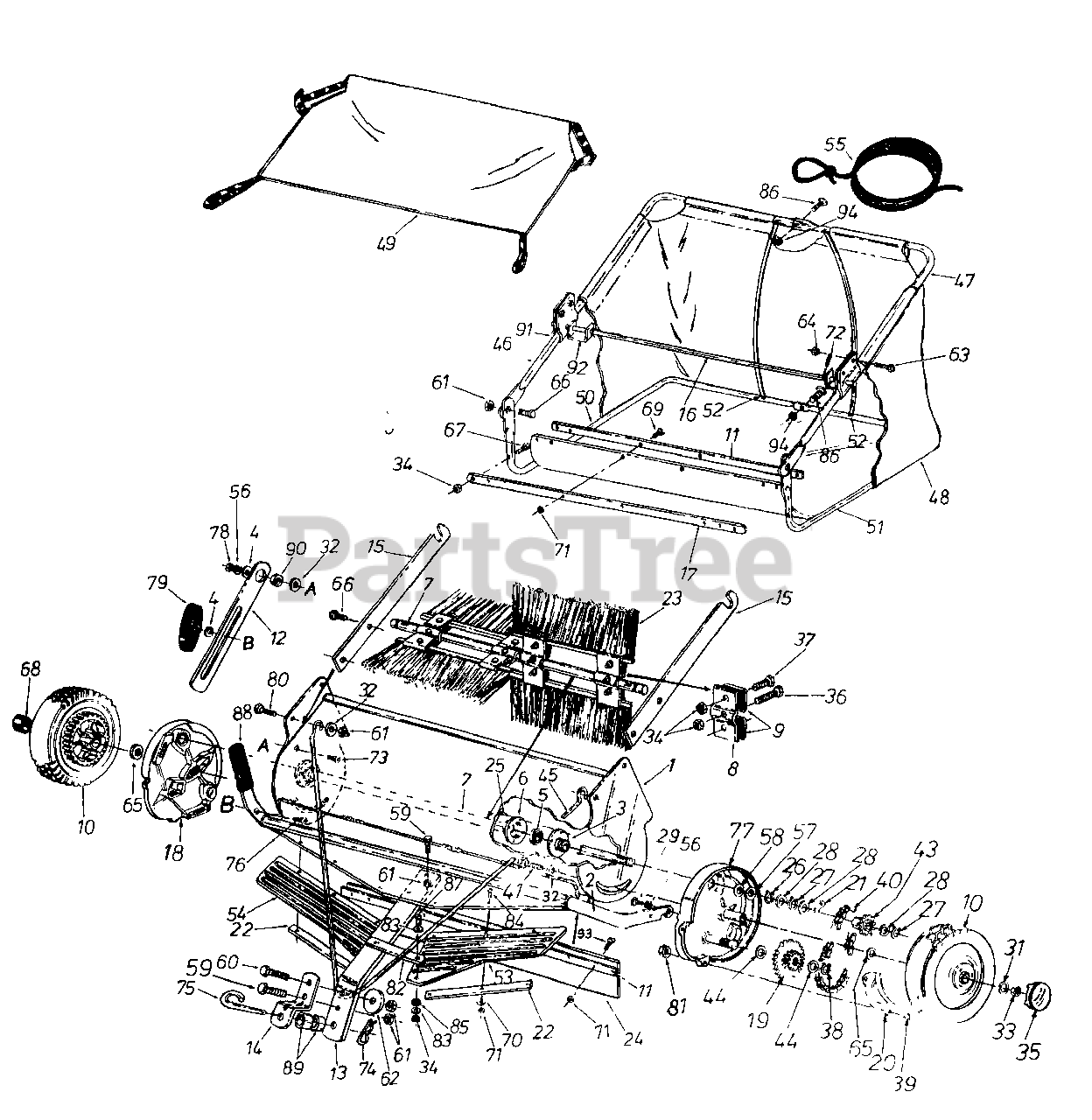

HS 380 (954995201) - Husqvarna Tow-Behind Sweeper (1990-11) Repair Parts Parts Diagram

Tow-Behind Sweeper

Repair Parts Parts Diagram

  • Title

1

Husqvarna 62500

Sweeper Housing Ass'y.

$

$

Currently unavailable

2

Husqvarna 62801

Adjustment Rod Ass'y.

$

$

Currently unavailable

3

Husqvarna 62489

Brush Bushing Ass'y.

$

$

Currently unavailable

4

Husqvarna 43081

Washer, 5/16" Std.

$

$

Not available

5

Husqvarna 165213

Ball Bearing .596 I.D.

$

$

Currently unavailable

6

162956

Bearing Retainer

$

$

Not available

7

Husqvarna 23574

Brush Shaft - 38"

$

$

Currently unavailable

8

Husqvarna 23580

Brush Retainer - Double

$

$

Currently unavailable

9

Husqvarna 23581

Brush Retainer - Single

$

$

Currently unavailable

10

Husqvarna 44985

Wheel Ass'y. Complete

$

$

Currently unavailable

11

Husqvarna 23343

Skirt & Bag Retainer - 38"

$

$

Currently unavailable

12

Husqvarna 23387

Weight Adjustment Strap

$

$

Currently unavailable

13

Husqvarna 23349

Hitch Bar

$

$

Currently unavailable

14

Husqvarna 23014

Hitch Bracket

$

$

Currently unavailable

15

Husqvarna 23595

Hopper Mount Arm

$

$

Currently unavailable

16

Husqvarna 23601

Hopper Bag Pivot Rod

$

$

Currently unavailable

17

Husqvarna 23352

Bag Frame Strap

$

$

Currently unavailable

18

Husqvarna 62792

Housing Wheel Drive Ass'y. (R.H.)

$

$

Currently unavailable

19

Husqvarna 62490

Gear Sprocket Sub. Ass'y.

$

$

Currently unavailable

20

Husqvarna 23573

Dust Cover

$

$

Currently unavailable

21

Husqvarna 16711

Pawl

$

$

Currently unavailable

22

Husqvarna 23597

Shield Retainer

$

$

Currently unavailable

23

Husqvarna 43904

Sweeper Brush

$

$

Currently unavailable

24

Husqvarna 43673

Skirt

$

$

Currently unavailable

25

C9M5732

Pop Rivet

$

$

Not available

26

Husqvarna 43655

Retaining Ring - 3/4"

$

$

Currently unavailable

27

165021

Retaining Ring - .594" I.D.

$

$

Not available

28

Husqvarna 44007

Shim Wash .596 x 1.125 x .025

$

$

Currently unavailable

29

Husqvarna 43182

Hex Bolt 5/16 x 3/4" Lg.

$

$

Currently unavailable

31

Husqvarna 0141000

Fl.-Washer .38 x 1.25 x .06

$

$

Currently unavailable

32

Husqvarna 43070

Washer, 3/8" Std,

$

$

Not available

33

Husqvarna 1038

Hex Lock Nut 3/8-24 Thd.

$

$

Currently unavailable

34

Husqvarna 43013

Hex Lock Nut 1/4-20 Thd.

$

$

Currently unavailable

35

267432

Hub Cap

$

$

Not available

36

Husqvarna 43661

Hex Bolt 1/4-20 x 1.0" Lg.

$

$

Currently unavailable

37

Husqvarna 43012

Hex Bolt 1/4-20 x 3/4" Lg. (Gr. 5)

$

$

Not available

38

Husqvarna 43894

Retaining Ring - 1/2"

$

$

Currently unavailable

39

Husqvarna 44004

Pan Hd. Screw #10-32 x 1" Lg.

$

$

Currently unavailable

40

Husqvarna 44542

Roller Chain 3/8 x 1/2-40

$

$

Currently unavailable

41

Husqvarna 43932

Hex Bolt 3/8-24 x 3-1/4" Lg. (Gr. 5)

$

$

Currently unavailable

42

Husqvarna 43890

Ratchet Sprocket R.H. - 11 T.

Note: (Not Shown)

$

$

Currently unavailable

43

Husqvarna 43889

Ratchet Sprocket L.H. - 11 T.

$

$

Currently unavailable

44

Husqvarna 44137

Washer .51 x .990 x .02

$

$

Currently unavailable

45

Husqvarna 43958

Brace Rod

$

$

Currently unavailable

46

Husqvarna 43966

Upper Hopper Tube - R.H.

$

$

Currently unavailable

47

Husqvarna 43967

Upper Hopper Tube - L.H.

$

$

Currently unavailable

48

Husqvarna 44067

Hopper Bag

$

$

Currently unavailable

49

Husqvarna 43937

Wind Screen

$

$

Currently unavailable

50

Husqvarna 43968

Lower Hopper Tube - R.H.

$

$

Currently unavailable

51

Husqvarna 43969

Lower Hopper Tube - L.H.

$

$

Currently unavailable

52

Husqvarna 43938

Hopper Support Rod 34" Lg.

$

$

Currently unavailable

53

Husqvarna 43939

Hitch Shield - L.H.

$

$

Currently unavailable

54

Husqvarna 43940

Hitch Shield - R.H.

$

$

Currently unavailable

55

Husqvarna 43737

Hopper Rope

$

$

Currently unavailable

56

Husqvarna 43086

Spring Lock Washer 5/16"

$

$

Not available

57

154031

Fl.-Washer .78 x 1.25 x .062

$

$

Not available

58

Husqvarna 1540107

Fl.-Washer .78 x 1.25 x .031

$

$

Currently unavailable

59

Husqvarna 43001

Hex Bolt 3/8-16 x 1" Lg. (Gr. 5)

$

$

Not available

60

Husqvarna 43062

Hex Bolt 3/8-16 x 1-1/2" Lg.

$

$

Not available

61

Husqvarna 43082

Hex Lock Nut 3/8-16 Thd.

$

$

Not available

62

Husqvarna R19172410

Fl.-Washer 17-32 x 1-1/2 x 10 Ga.

$

$

Currently unavailable

63

Husqvarna 43182

Hex Bolt 5/16 x 3/4" Lg.

$

$

Currently unavailable

64

Husqvarna 43064

Hex Lock Nut 5/16-18 Thd.

$

$

Not available

65

Husqvarna 44008

FI.-Washer .78 I.D.

$

$

Currently unavailable

66

Husqvarna 43407

Hex Bolt 3/8-16 x 3/4" Lg. (Gr. 5)

$

$

Currently unavailable

67

Husqvarna 150990

Hex Bolt 1/4-20 x 1-1/4" Lg.

$

$

Currently unavailable

68

Husqvarna 165252

Wheel Bearing

$

$

Currently unavailable

69

Husqvarna 43346

Slotted Truss Hd. Scr. #10-32 x 5/8" Lg.

$

$

Not available

70

UNKNOWN

$

$

Not available

71

Husqvarna 43662

Hex Lock Nut #10-32 Thd.

$

$

Currently unavailable

72

Husqvarna 0142000

Cotter Pin 1/8" x 3/4" Lg.

$

$

Currently unavailable

73

Husqvarna 43080

Carriage Bolt 5/16-18 x 3/4" Lg.

$

$

Not available

74

Husqvarna 43343

Hair Pin Cotter

$

$

Not available

75

Husqvarna 23353

Hitch Pin

$

$

Currently unavailable

76

Husqvarna 43080

Carriage Bolt 5/16-18 x 3/4" Lg.

$

$

Not available

77

Husqvarna 62791

Housing Wheel Drive Ass'y. (LH)

$

$

Currently unavailable

78

Husqvarna 43083

Hex Nut 5/16-18 Thd.

$

$

Not available

79

Husqvarna 43220

Knob, Wing 5/16-18 Thd.

$

$

Currently unavailable

80

Husqvarna 43087

Hex Bolt 3/8-16 x 1-1/4" Lg.

$

$

Not available

81

Husqvarna 15348

Hex Lock Nut #10-32 Thd.

$

$

Currently unavailable

82

Husqvarna 43941

Rubber Connector Flap

$

$

Currently unavailable

83

Husqvarna 43088

Fl. Washer 1/4" Std.

$

$

Currently unavailable

84

Husqvarna 43346

Slot Truss Hd. Scr. #10-32 x 5/8" Lg.

$

$

Not available

85

Husqvarna 154369

Nylon Washer 21/64

$

$

Currently unavailable

86

Husqvarna 43978

Curved Head Bolt 1/4-20 x 1" Lg.

$

$

Currently unavailable

87

Husqvarna 43012

Hex Bolt 1/4-20 x 3/4" Lg.

$

$

Not available

88

Husqvarna 43943

Grip

$

$

Currently unavailable

89

Husqvarna 23368

Hitch Adjustment Tube

$

$

Currently unavailable

90

Husqvarna 23400

Spacer 13/32 x 5/8 x 3/16

$

$

Currently unavailable

91

Husqvarna 23331

Hopper Mounting Clamps

$

$

Currently unavailable

92

Husqvarna 23354

Bag Retainer Clevis

$

$

Currently unavailable

93

Husqvarna 1095

Slotted Truss Hd. Scr. #10-32 x 1/2" Lg.

$

$

Currently unavailable

94

Husqvarna 43013

Nut, Lock Hex 1/4-20 Thd.

$

$

Currently unavailable

Husqvarna 44625

Owner's Manual

$

$

Currently unavailable
