HRZ216 TDAA (MAFA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAFA-1000001 - MAFA-1099999) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in USA

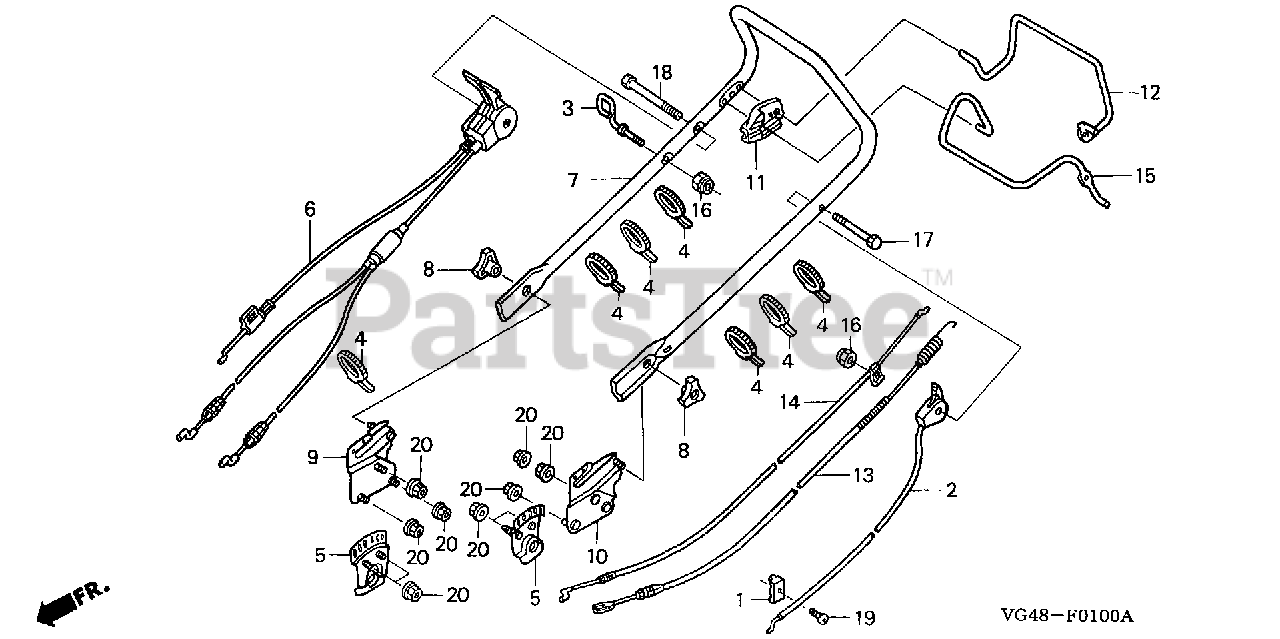

HANDLEBAR Parts Diagram

  • Title

1

Honda 16617-VG3-000

HOLDER, CABLE

$6.49

$

In Stock, only 4 left!

0

2

Honda 17850-VG3-D01

LEVER ASSY., THROTTLE

$15.99

$

In Stock, Qty 5

0

3

Honda 28475-VE1-T00

GUIDE, ROPE

$4.99

$

Usually ships in 3-6 days

0

4

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

5

Honda 42990-VG4-010

PANEL, RR. ADJUSTER

$17.99

$

Usually ships in 3-6 days

0

6

Honda 47340-VG4-T00

CABLE, CASTER

$102.99

$

Usually ships in 3-6 days

0

7

Honda 53111-VG3-D01ZA

PIPE, HANDLE *NH105* (MAT BLACK)

$53.99

$

Usually ships in 3-6 days

0

8

Honda 53125-VG3-000

GRIP, HANDLE JOINT

$1.99

$

In Stock, only 4 left!

0

9

Honda 53130-VG4-C00

STAY, R. HANDLE

$14.99

$

Usually ships in 3-6 days

0

10

Honda 53135-VG4-C00

STAY, L. HANDLE

$14.99

$

In Stock, only 1 left!

0

11

Honda 54315-VG3-D00

STOPPER, LEVER

$0.99

$

In Stock, Qty 14

0

12

Honda 54411-VG3-D00

LEVER, CLUTCH

$23.99

$

Usually ships in 3-6 days

0

13

Honda 54510-VG4-C00

SEE PART DETAILS - SUP; CABLE, CLUTCH
(Superseded to 54510-VG4-C01)

Note: Use up to Frame SN 1046398.

$14.99

$

Usually ships in 3-6 days

0

13

Honda 54510-VG4-C01

SEE PART DETAILS - PRI; CABLE, CLUTCH

$14.99

$

Usually ships in 3-6 days

0

14

Honda 54530-VG3-D01

CABLE, BRAKE

$11.99

$

In Stock, only 3 left!

0

15

Honda 75191-VG3-D00

LEVER, BRAKE

$23.99

$

In Stock, only 2 left!

0

16

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 92101-06060-0A

BOLT, HEX. (6X60)

$1.49

$

In Stock, only 3 left!

0

18

Honda 92201-06080-0A

BOLT, HEX. (6X80)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

20

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0
