HRZ216 TDAA (MAFA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAFA-1000001 - MAFA-1099999) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

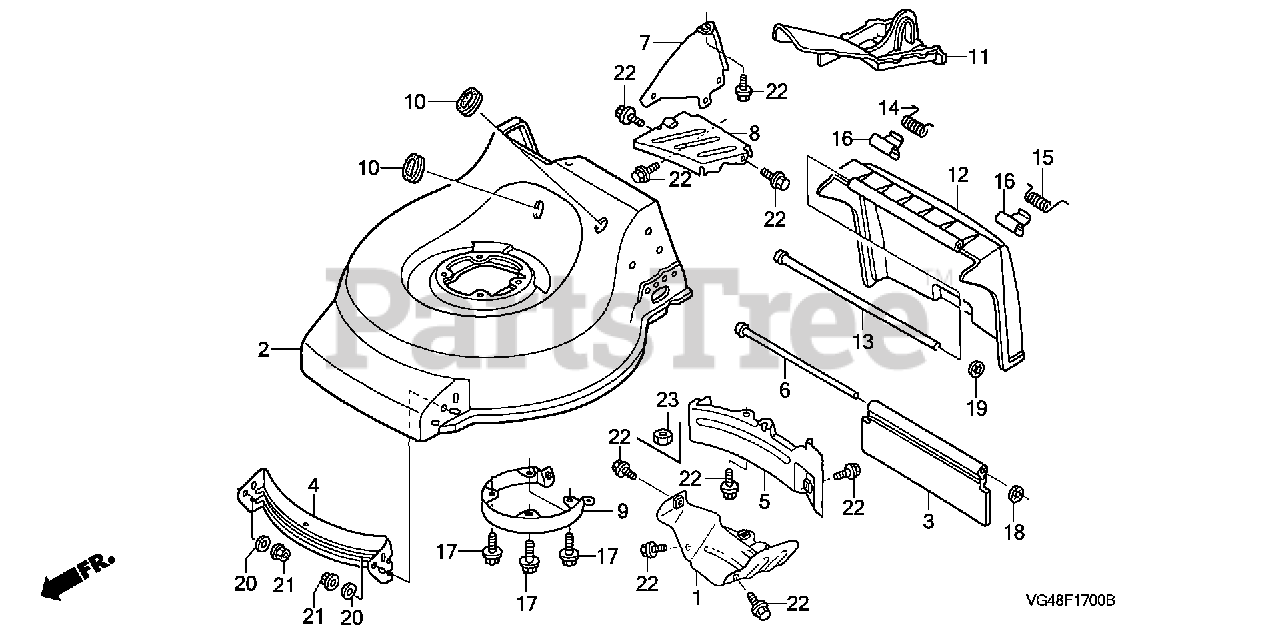

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 06636-VG4-305

SEE PART DETAILS - PRI; COVER, BELT

Note: Use up to Frame SN 1006204.

$32.99

$

Usually ships in 3-6 days

0

1

Honda 63610-VG4-000

SEE PART DETAILS - SUP; COVER, BELT
(Superseded to 06636-VG4-305)

Note: Use up to Frame SN 1006204.

$32.99

$

Usually ships in 3-6 days

0

1

Honda 63610-VG4-010

COVER, BELT
(Superseded to 63610-VG4-020)

Note: Use from Frame SN 1006205.

$21.99

$

In Stock, only 1 left!

0

2

Honda 06761-VG4-305ZB

SEE PART DETAILS - PRI; HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)

$1190.99

$

Usually ships in 3-6 days

0

2

Honda 76111-VG4-000ZA

SEE PART DETAILS - SUP; HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)
(Superseded to 06761-VG4-305ZB)

$1190.99

$

Usually ships in 3-6 days

0

2

Honda 76111-VG4-000ZB

SEE PART DETAILS - SUP; HOUSING, CUTTER *NH192M* (GENTLY SILVER METALLIC)
(Superseded to 06761-VG4-305ZB)

$1190.99

$

Usually ships in 3-6 days

0

3

Honda 76118-VG3-020

SEE PART DETAILS - PRI; SHIELD, RR.

$25.99

$

In Stock, only 1 left!

0

4

Honda 76125-VG3-010

SCROLL, FR.

$21.99

$

In Stock, only 1 left!

0

5

Honda 76131-VG4-020

SEE PART DETAILS - PRI; SCROLL, RR.

$8.49

$

In Stock, only 1 left!

0

6

Honda 76138-VG3-010

SHAFT, RR. SHIELD (405MM)

$1.49

$

In Stock, Qty 17

0

7

Honda 76142-VG4-020

SEE PART DETAILS - PRI; PLATE, SCROLL

$8.99

$

In Stock, Qty 10

0

8

Honda 76143-VG4-010

PLATE, GUIDE

$10.99

$

Usually ships in 3-6 days

0

9

Honda 76147-VG4-000

COVER, ROTO-STOP

$17.99

$

In Stock, only 2 left!

0

10

Honda 76231-VG3-B00

GROMMET, CABLE (HOLE)

$1.49

$

In Stock, only 3 left!

0

11

Honda 76266-VG4-000ZA

SEE PART DETAILS - SUP; STUFFING *NH105* (MAT BLACK)
(Superseded to 76266-VG4-020ZA)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 76266-VG4-000ZB

SEE PART DETAILS - SUP; STUFFING *NH1* (BLACK)
(Superseded to 76266-VG4-020ZA)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 76266-VG4-010ZA

SEE PART DETAILS - SUP; STUFFING *NH105* (MAT BLACK)
(Superseded to 76266-VG4-020ZA)

$11.99

$

Usually ships in 3-6 days

0

11

Honda 76266-VG4-020ZA

SEE PART DETAILS - PRI; STUFFING *NH105* (MAT BLACK)

$11.99

$

Usually ships in 3-6 days

0

12

Honda 76281-VG4-020ZA

SEE PART DETAILS - PRI; GUARD, DISCHARGE *NH105* (MAT BLACK)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 76282-VG4-010

SHAFT, DISCHARGE GUARD

$66.99

$

In Stock, only 1 left!

0

14

Honda 76284-VG4-000

SPRING, R. GUARD RETURN

$1.99

$

In Stock, only 4 left!

0

15

Honda 76294-VG4-000

SPRING, L. GUARD RETURN

$1.99

$

In Stock, only 4 left!

0

16

Honda 81152-VG4-000

PLATE, HINGE

$5.99

$

In Stock, only 2 left!

0

17

Honda 90104-VG3-000

BOLT, FLANGE (5/16-24X1")

$0.99

$

In Stock, Qty 8

0

18

Honda 90301-VG3-010

SEE PART DETAILS - SUP; NUT, PUSH (3.96MM) (CAPPED TYPE)
(Superseded to 90301-VG3-020)

$1.49

$

In Stock, only 4 left!

0

18

Honda 90301-VG3-020

SEE PART DETAILS - PRI; NUT, PUSH (3.96MM) (FLAT ROUND TYPE)

$1.49

$

In Stock, only 4 left!

0

19

Honda 90301-VG4-000

NUT, PUSH (7.94MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 90506-VG3-000

WASHER, PLAIN (5/16)

$0.99

$

In Stock, Qty 6

0

21

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use up to Frame SN 1006204.

$1.99

$

In Stock, Qty 13

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Frame SN 1006205.

$1.99

$

In Stock, Qty 13

0

23

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

Note: Use from Frame SN 1006205.

$0.99

$

In Stock, Qty 20+

0
