HRX217 TDA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-1000001 - MAGA-1299999) THROTTLE LEVER Parts Diagram

21" Walk-Behind Mower, Made in USA

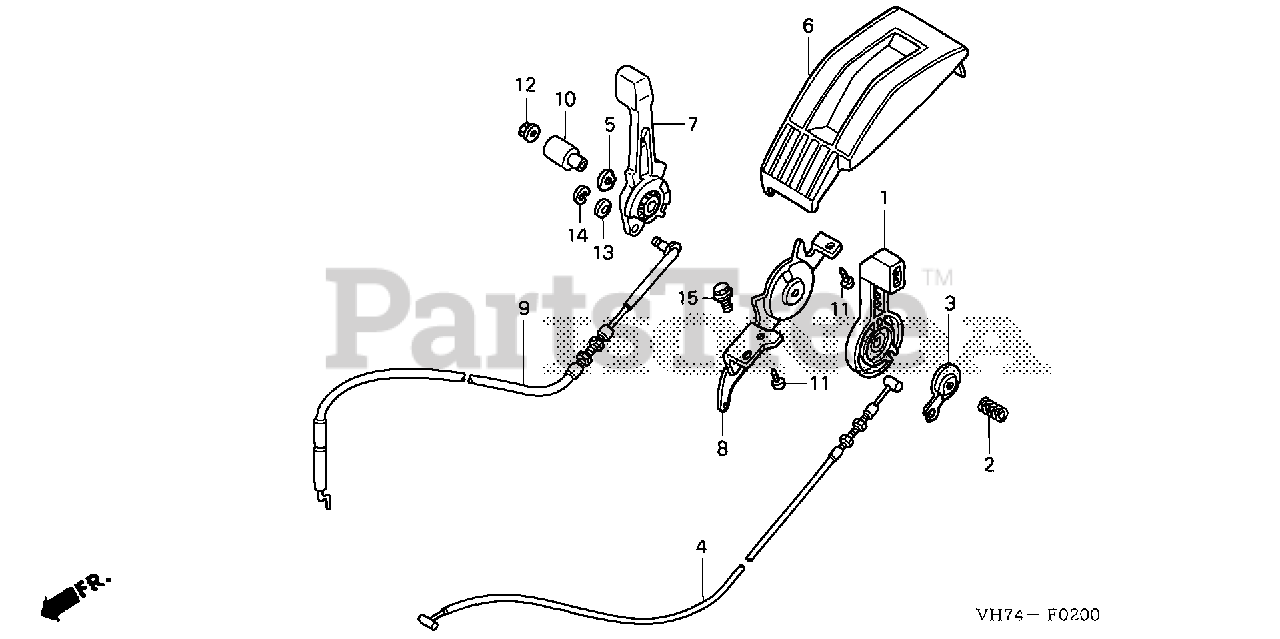

THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17851-VA3-D01

LEVER, THROTTLE

$4.99

$

Usually ships in 3-6 days

0

2

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

3

Honda 17859-VA3-800

SEAT, SPRING

$5.99

$

In Stock, Qty 6

0

4

Honda 17910-VH7-000

CABLE, THROTTLE

$42.99

$

In Stock, only 1 left!

0

5

Honda 47363-671-300

WASHER, WAVE (11MM)

$9.49

$

Usually ships in 3-6 days

0

6

Honda 54231-VA3-800

COVER, CONTROL

$32.99

$

Usually ships in 3-6 days

0

7

Honda 54311-VE1-R00

LEVER, CHANGE

$22.99

$

Usually ships in 3-6 days

0

8

Honda 54315-VE1-R00

STOPPER, LEVER

$19.99

$

Usually ships in 3-6 days

0

9

Honda 54630-VH7-000

CABLE, CHANGE

$74.99

$

In Stock, only 1 left!

0

10

Honda 91551-VE1-R00

COLLAR, CHANGE LEVER

$3.49

$

In Stock, only 1 left!

0

11

Honda 93901-35210

SCREW, TAPPING (5X12)

$0.99

$

In Stock, Qty 6

0

12

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

13

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, only 4 left!

0

14

Honda 94540-05010

E-RING (5MM)

$2.49

$

In Stock, only 3 left!

0

15

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0
