HRX217 K6 VYAA (MAMA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAMA-1000001 - MAMA-9999999) ROTARY BLADE (2) Parts Diagram

21" Walk-Behind Mower, Made in USA

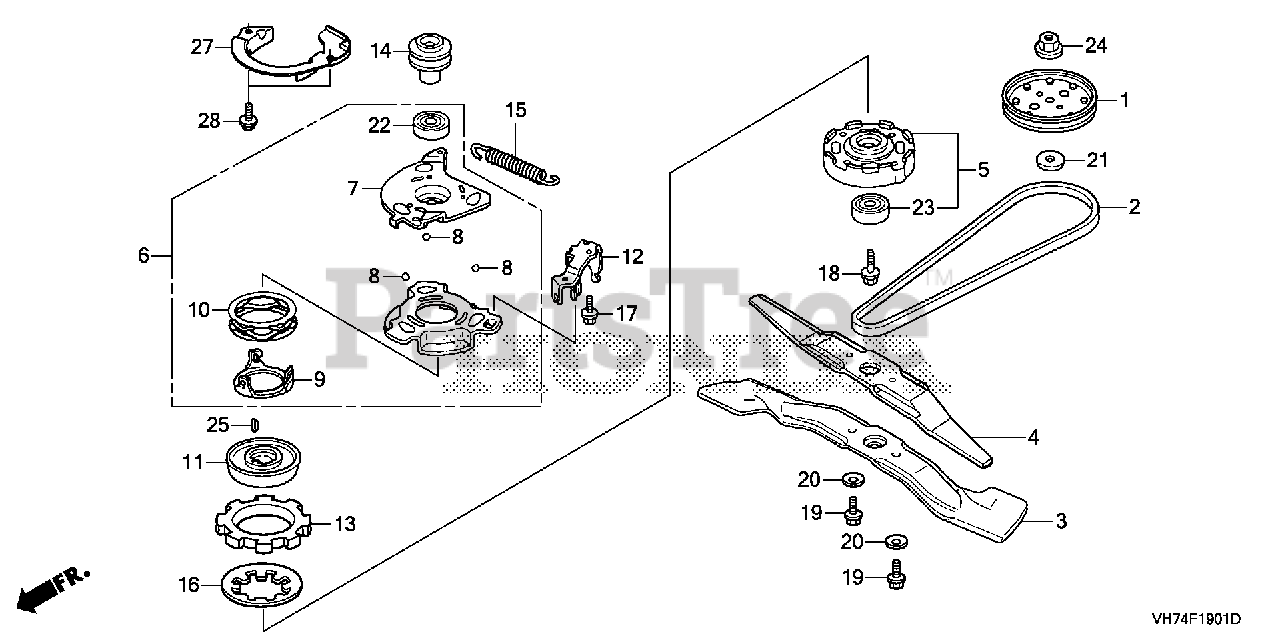

ROTARY BLADE (2) Parts Diagram

  • Title
2

Honda 22431-VH7-T31

V-BELT (3L-38.6)

$16.99

$

In Stock, Qty 9

0

3

Honda 72511-VH7-000

BLADE, ROTARY

$23.99

$

In Stock, Qty 20+

0

4

Honda 72531-VH7-000

BLADE, ROTARY (UPPER)

$18.99

$

In Stock, Qty 20+

0

5

Honda 72600-VE1-G00

HOLDER ASSY., BLADE

$36.99

$

In Stock, only 1 left!

0

6

Honda 75110-VE1-R00

SEE PART DETAILS - PRI; PLATE ASSY., BALL CONTROL

$83.99

$

Usually ships in 3-6 days

0

7

Honda 75111-VE1-G01

PLATE, BALL CONTROL

$8.49

$

In Stock, Qty 6

0

8

Honda 75117-VE1-G00

BALL, STEEL

$13.99

$

In Stock, Qty 10

0

9

Honda 75127-VE1-G00

PLATE, SPRING HOOK

$7.99

$

In Stock, only 1 left!

0

10

Honda 75132-VE1-G00

SPRING, BALL PLATE

$7.99

$

Usually ships in 3-6 days

0

11

Honda 75141-VH7-L50

DISK, DRIVE

$59.99

$

Usually ships in 3-6 days

0

12

Honda 75143-VE1-G00

HOOK, RETURN SPRING

$42.99

$

Usually ships in 3-6 days

0

13

Honda 75150-VH7-L50

DISK, DRIVEN

$96.99

$

Usually ships in 3-6 days

0

14

Honda 75162-VL0-H00

PULLEY, DRIVE

$27.99

$

In Stock, only 1 left!

0

15

Honda 75185-VE1-G00

SEE PART DETAILS - PRI; SPRING ASSY., CLUTCH RETURN

$7.49

$

In Stock, only 1 left!

0

16

Honda 75183-VE1-G01

SPRING, CLUTCH

$28.99

$

In Stock, only 3 left!

0

17

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 3 left!

0

18

Honda 90101-VE1-G00

BOLT, FLANGE (10X24)

$1.49

$

In Stock, Qty 7

0

19

Honda 90105-960-710

SEE PART DETAILS - PRI; BOLT, HEX. (10X20)

$1.99

$

In Stock, Qty 20+

0

20

Honda 90502-VG3-000

WASHER, SPRING (10MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 91051-VE1-G00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6006) (SST)

$30.99

$

In Stock, only 1 left!

0

22

Honda 91051-VE1-R00

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6006) (TSB)
(Superseded to 91051-VE1-G00)

$30.99

$

In Stock, only 1 left!

0

23

Honda 91102-VA4-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$24.99

$

In Stock, Qty 5

0

25

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, only 4 left!

0

27

Honda 22453-VL0-H00

GUIDE, ENGINE BELT

$10.99

$

Usually ships in 3-6 days

0

28

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 3 left!

0
