HRX217 K5 VYAA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-2370001 - MAGA-9999999) FAN COVER@FUEL TANK (HRX217K1/K2/K3/K4/K5) Parts Diagram

21" Walk-Behind Mower, Made in USA

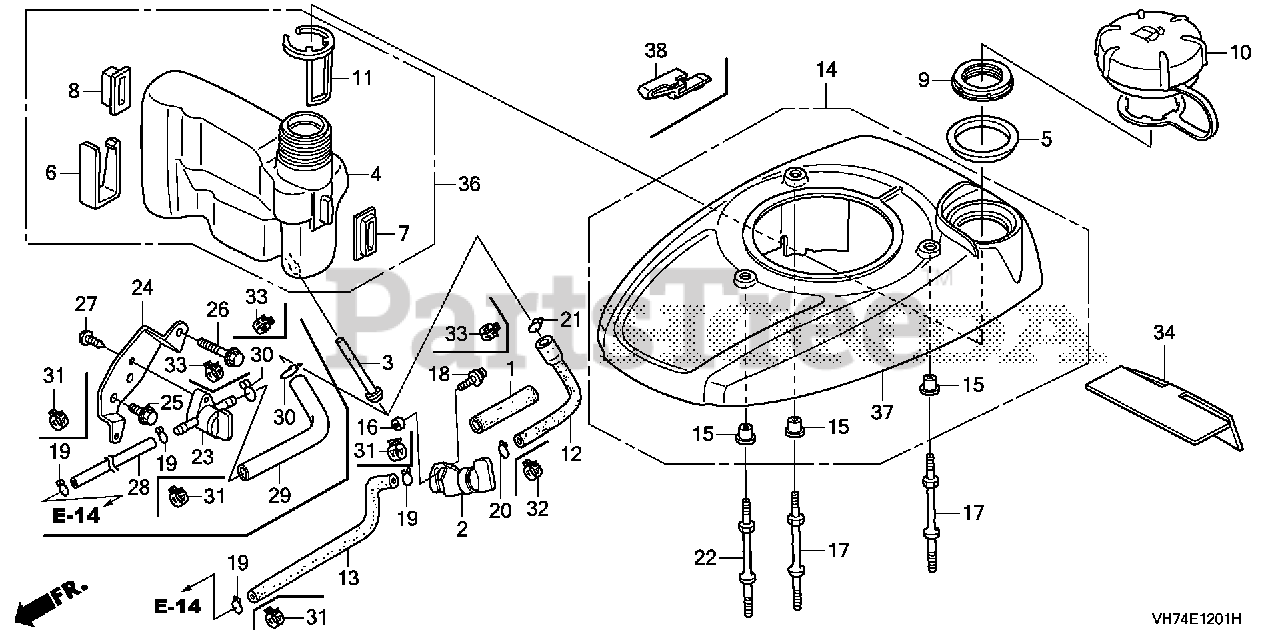

FAN COVER@FUEL TANK (HRX217K1/K2/K3/K4/K5) Parts Diagram

  • Title
1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, only 4 left!

0

2

Honda 16950-ZM0-003

PETCOCK ASSY. (Honda Code 7425770).

$9.49

$

In Stock, Qty 13

0

3

Honda 16952-Z8B-000

FILTER, FUEL

$28.99

$

In Stock, Qty 10

0

4

Honda 17511-Z8B-800

TANK, FUEL
(Superseded to 17511-Z8B-801)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 17511-Z8B-801

TANK, FUEL

$24.99

$

Usually ships in 3-6 days

0

5

Honda 17514-Z0L-000

SEAL, FUEL FILLER NECK

$0.99

$

In Stock, Qty 10

0

7

Honda 17532-Z8B-800

RUBBER A, TANK MOUNTING

$15.99

$

Usually ships in 3-6 days

0

8

Honda 17533-Z8B-800

RUBBER B, TANK MOUNTING

$1.49

$

Usually ships in 3-6 days

0

9

Honda 17534-Z0L-000

NUT, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

10

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, Qty 7

0

11

Honda 17636-Z0L-010

GAUGE, FUEL LEVEL

$0.99

$

In Stock, only 1 left!

0

12

Honda 17701-Z8B-813

TUBE, FUEL TANK

$23.99

$

In Stock, only 1 left!

0

13

Honda 17702-Z8B-801

TUBE, FUEL (FKM)
(Superseded to 17702-Z8B-802)

$21.99

$

In Stock, only 3 left!

0

16

Honda 91501-Z0L-800

COLLAR, FUEL PETCOCK (Honda Code 6978399).

$1.99

$

In Stock, only 1 left!

0

17

Honda 90043-Z8D-010

BOLT, STUD (FAN COVER)

$5.99

$

In Stock, only 2 left!

0

18

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).

$1.49

$

In Stock, Qty 5

0

22

Honda 90043-Z8D-010

BOLT, STUD (FAN COVER)

$5.99

$

In Stock, only 2 left!

0

31

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, Qty 6

0

32

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

In Stock, only 2 left!

0

33

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

Usually ships in 3-6 days

0

37

Honda 19611-Z8D-900ZC

COVER, FAN *R280* (POWER RED)

$63.99

$

In Stock, only 1 left!

0

38

Honda 17516-Z8B-900ZD

CLIP, TANK MOUNTING *NH1* (BLACK)

$0.99

$

In Stock, only 1 left!

0
