HRX217 K4 VLAA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-1900001 - MAGA-2369999) FAN COVER + FUEL TANK Parts Diagram

21" Walk-Behind Mower, Made in USA

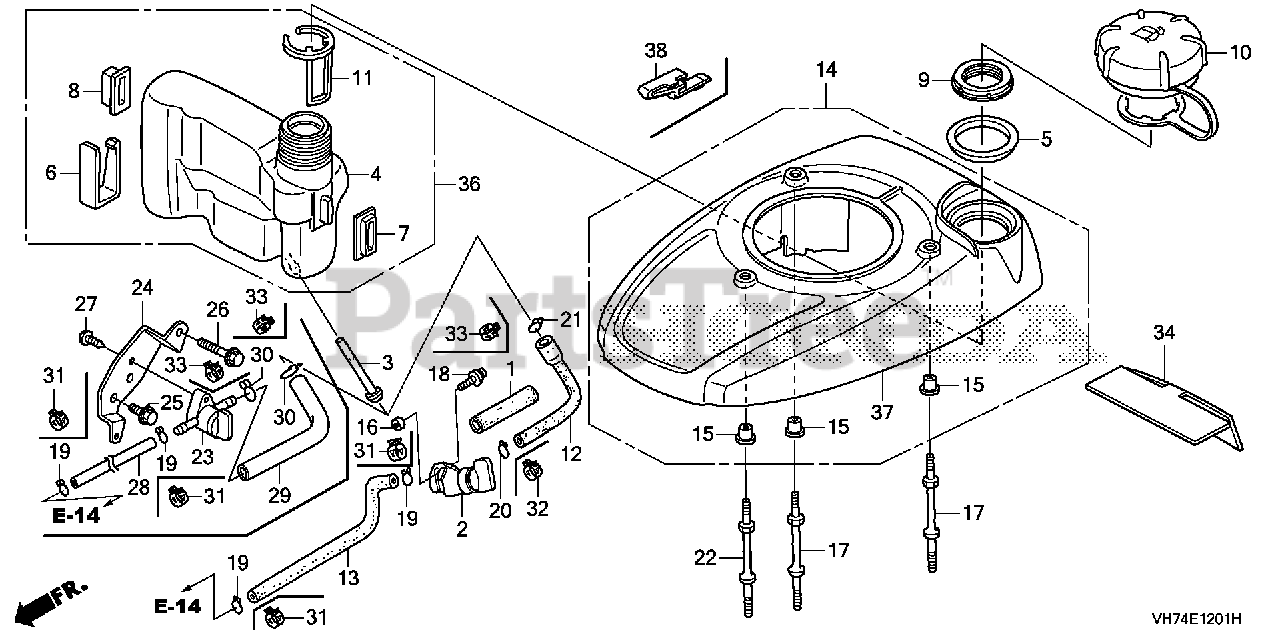

FAN COVER + FUEL TANK Parts Diagram

  • Title

3

Honda 16952-Z8B-000

FILTER, FUEL

$28.99

$

In Stock, Qty 7

0

4

Honda 17511-Z8B-800

TANK, FUEL
(Superseded to 17511-Z8B-801)

Note: Use from Engine SN 2669231.

$24.99

$

Usually ships in 3-6 days

0

5

Honda 17514-Z0L-000

SEAL, FUEL FILLER NECK

$0.99

$

In Stock, Qty 10

0

6

Honda 17516-Z0L-000

CLIP, TANK MOUNTING

$0.99

$

In Stock, only 4 left!

0

7

Honda 17532-Z8B-800

RUBBER A, TANK MOUNTING

Note: Use from Engine SN 2669231.

$15.99

$

Usually ships in 3-6 days

0

8

Honda 17533-Z8B-800

RUBBER B, TANK MOUNTING

Note: Use from Engine SN 2669231.

$1.49

$

Usually ships in 3-6 days

0

9

Honda 17534-Z0L-000

NUT, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

10

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, only 3 left!

0

11

Honda 17636-Z0L-010

GAUGE, FUEL LEVEL

$0.99

$

In Stock, only 1 left!

0

14

Honda 19610-Z0L-851ZE

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED)
(Superseded to 19611-Z0L-850ZF)

Note: Use up to Engine SN 2747116.

$42.99

$

In Stock, only 1 left!

0

15

Honda 19619-ZL8-300

COLLAR, FAN COVER

Note: Use up to Engine SN 2747116.

$1.49

$

In Stock, Qty 20+

0

17

Honda 90043-Z8B-000

BOLT, STUD (FAN COVER)

Note: Use up to Engine SN 2747116.

$0.99

$

In Stock, Qty 6

0

17

Honda 90043-Z8D-010

BOLT, STUD (FAN COVER)

Note: Use from Engine SN 2747117.

$5.99

$

In Stock, only 1 left!

0

22

Honda 90043-Z8B-000

BOLT, STUD (FAN COVER)

Note: Use up to Engine SN 2747116.

$0.99

$

In Stock, Qty 6

0

22

Honda 90043-Z8D-010

BOLT, STUD (FAN COVER)

Note: Use from Engine SN 2747117.

$5.99

$

In Stock, only 1 left!

0

23

Honda 16950-Z0Y-003

PETCOCK ASSY.

$4.99

$

In Stock, only 4 left!

0

24

Honda 16961-Z0L-900

STAY, PETCOCK

$8.99

$

Usually ships in 3-6 days

0

25

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

26

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

$3.99

$

In Stock, only 3 left!

0

27

Honda 93913-25220

SCREW, TAPPING (5X12) (PO)

$0.99

$

In Stock, Qty 8

0

28

Honda 91424-Z8B-821

TUBE, FUEL (4.5X110) (FKM)

$17.99

$

In Stock, only 1 left!

0

29

Honda 91427-Z8B-821

TUBE, FUEL (7.3X160) (FKM)

$27.99

$

In Stock, Qty 7

0

31

Honda 95002-40800-08

CLAMP, TUBE (D8)

$2.99

$

In Stock, Qty 10

0

33

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

In Stock, only 1 left!

0

36

Honda 06175-Z8B-800

TANK KIT, FUEL

Note: Use up to Engine SN 2669230.

$74.99

$

Usually ships in 3-6 days

0

37

Honda 19611-Z0L-850ZF

COVER, FAN *R280* (POWER RED)

Note: Use from Engine SN 2747117.

$42.99

$

In Stock, only 1 left!

0
