HRX217 K4 HYAA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-1900001 - MAGA-2369999) REAR WHEEL Parts Diagram

21" Walk-Behind Mower, Made in USA

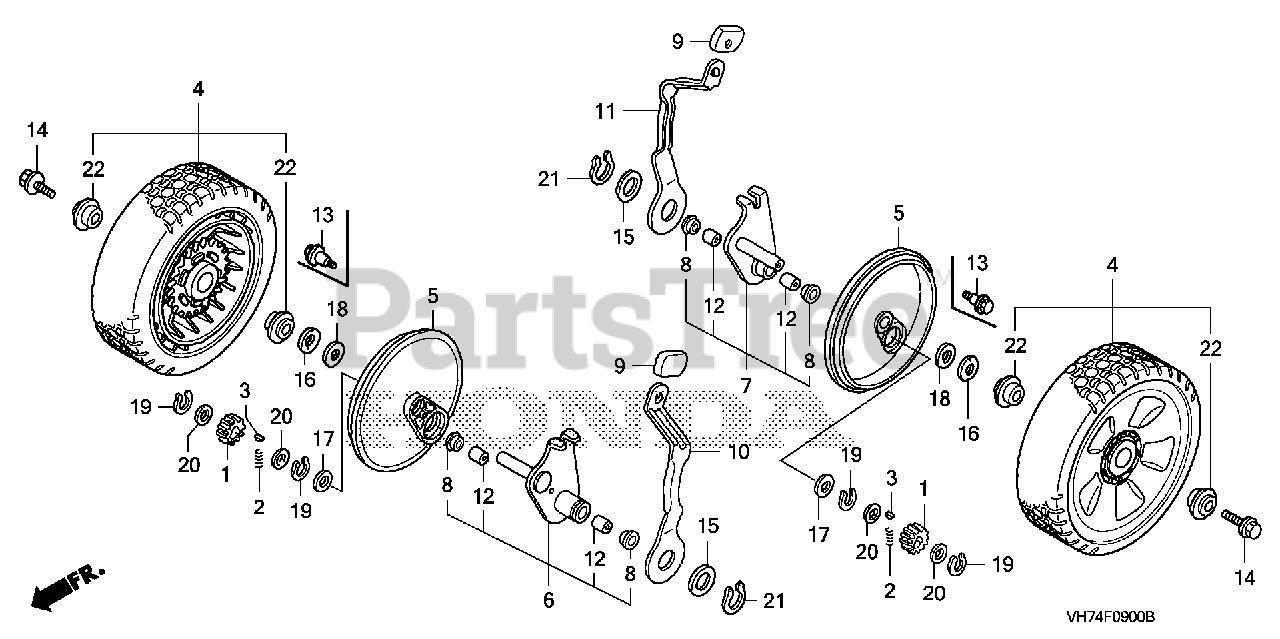

REAR WHEEL Parts Diagram

  • Title

1

Honda 42661-VH7-000

GEAR, PINION (13T)

$5.49

$

In Stock, Qty 14

0

2

Honda 42668-VE2-800

SPRING, RATCHET RETURN

$3.49

$

In Stock, Qty 20+

0

3

Honda 42672-VE2-800

KEY, RATCHET

$0.99

$

In Stock, only 4 left!

0

4

Honda 42710-VH7-000ZA

SEE PART DETAILS - SUP; WHEEL, RR. *NH164* (GRIP GRAY)
(Superseded to 42710-VH7-010ZA)

$23.99

$

In Stock, Qty 8

0

4

Honda 42710-VH7-010ZA

SEE PART DETAILS - PRI; WHEEL, RR. *NH164* (GRIP GRAY)

$23.99

$

In Stock, Qty 8

0

5

Honda 42866-VH7-000

COVER

$10.99

$

In Stock, only 1 left!

0

6

Honda 42930-VH7-000

ARM, R. RR. ADJUSTING
(Superseded to 42930-VH7-010)

$26.99

$

In Stock, only 1 left!

0

7

Honda 42940-VH7-000

ARM, L. RR. ADJUSTING
(Superseded to 42940-VH7-010)

$26.99

$

In Stock, only 3 left!

0

8

Honda 42944-VE2-801

DUST SEAL (12.7MM)

$2.49

$

In Stock, Qty 16

0

9

Honda 42952-VG3-000

SEE PART DETAILS - SUP; GRIP, ADJUSTER
(Superseded to 42952-VG3-000ZA)

Note: Use up to Frame SN 1443839.

$0.99

$

In Stock, Qty 20+

0

9

Honda 42952-VG3-000ZA

SEE PART DETAILS - PRI; GRIP, ADJUSTER *NH105* (MAT BLACK)

$0.99

$

In Stock, Qty 20+

0

10

Honda 42961-VH7-000

PLATE, R. RR. ADJUSTING

$13.99

$

In Stock, only 2 left!

0

11

Honda 42966-VH7-000

PLATE, L. RR. ADJUSTING

$6.49

$

In Stock, Qty 5

0

12

Honda 44327-VE2-801

BUSH, DRIVESHAFT

$1.49

$

In Stock, Qty 20+

0

13

Honda 90103-VE2-801

SCREW, TAPPING (5X12)

$1.49

$

In Stock, Qty 5

0

14

Honda 90110-VA4-000

BOLT, WHEEL

$4.49

$

In Stock, Qty 19

0

15

Honda 90403-952-770

WASHER, PLAIN (22MM)

$2.99

$

In Stock, only 3 left!

0

16

Honda 90455-VA2-000

WASHER, WHEEL

$4.49

$

In Stock, Qty 20+

0

17

Honda 90502-VE2-800

WASHER, THRUST (13MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 90505-VG3-000

WASHER, THRUST (13X27X1)

$0.99

$

In Stock, Qty 20+

0

19

Honda 90651-VE2-800

CIRCLIP (OUTER) (12.7MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 91559-VE2-800

COLLAR, PINION GEAR

$1.99

$

In Stock, Qty 12

0

21

Honda 94511-22000

CIRCLIP (OUTER) (22MM)

$1.99

$

In Stock, Qty 20+

0

22

Honda 91051-VG3-000

SEE PART DETAILS - SUP; BEARING, RADIAL BALL
(Superseded to 91056-VL0-B00)

$1.99

$

In Stock, Qty 14

0

22

Honda 91056-VL0-B00

SEE PART DETAILS - PRI; BEARING, WHEEL

$1.99

$

In Stock, Qty 14

0
