HRX217 K3 VKAA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-2020001 - MAGA-2199999) FLYWHEEL + IGNITION COIL Parts Diagram
21" Walk-Behind Mower, Made in USA

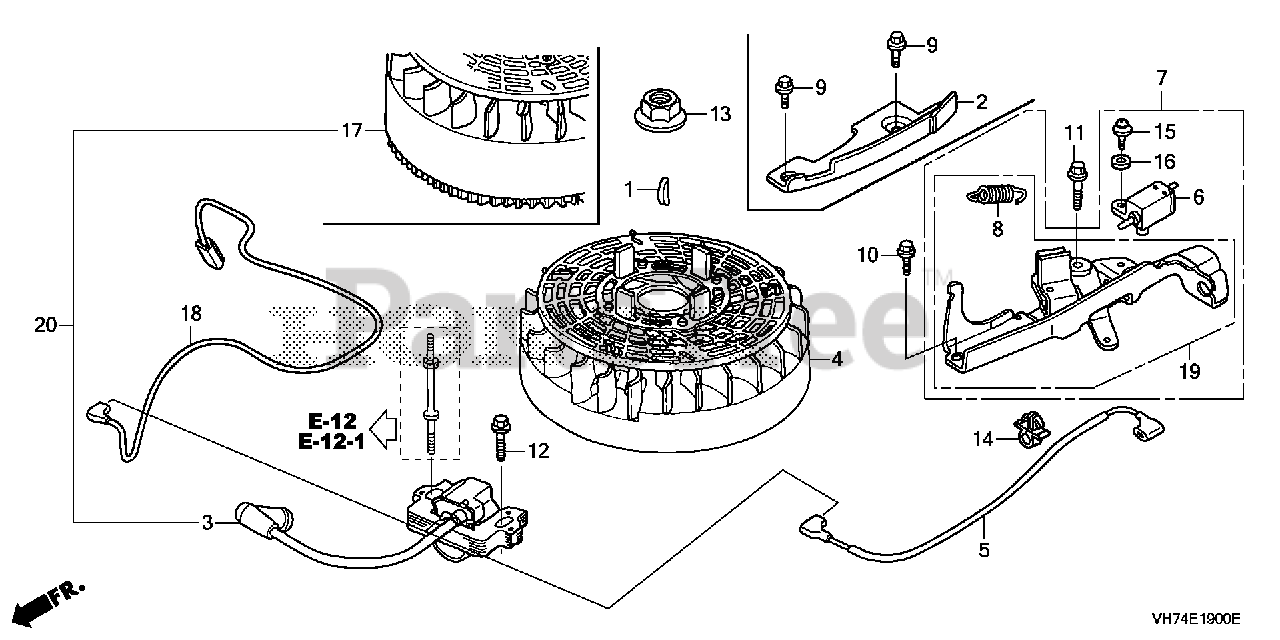

FLYWHEEL + IGNITION COIL Parts Diagram
Honda 13331-357-000
KEY, SPECIAL WOODRUFF (25X18)
$5.49
$
In Stock, only 4 left!
Honda 19612-Z0L-000
PLATE, SIDE
$17.99
$
In Stock, only 1 left!
Honda 30500-Z0J-003
SEE PART DETAILS - SUP; COIL ASSY., IGNITION (PHELON) (USE FOR F/W OF PHELON)
(Superseded to 30500-Z8B-903)
$23.99
$
Usually ships in 3-6 days
Honda 30500-Z8B-901
SEE PART DETAILS - PRI; COIL ASSY., IGNITION (PHELON)
(Superseded to 30500-Z8B-903)
$23.99
$
Usually ships in 3-6 days
Honda 30500-ZL8-014
SEE PART DETAILS - PRI; COIL ASSY., IGNITION (USE FOR F/W OF TEC) (TEC)
$56.99
$
In Stock, only 1 left!
Honda 90013-883-000
BOLT, FLANGE (6X12) (CT200)
$2.49
$
In Stock, Qty 17
$2.99
$
In Stock, only 2 left!
$2.49
$
In Stock, only 2 left!
Honda 90213-S3Y-000
NUT, FLANGE (14MM)
$6.49
$
In Stock, only 1 left!
Honda 31105-Z0L-831
FLYWHEEL ASSY. (PHELON) (USE FOR IGN. COIL OF PHELON) (NA USE ALT:31105-Z0Y-932)
$
$
Currently unavailable
Honda 32195-Z0Y-J40
WIRE, STOP SWITCH
$5.49
$
Usually ships in 3-6 days
