HRX217 K1 TDA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-1400001 - MAGA-1499999) CYLINDER Parts Diagram

21" Walk-Behind Mower, Made in USA

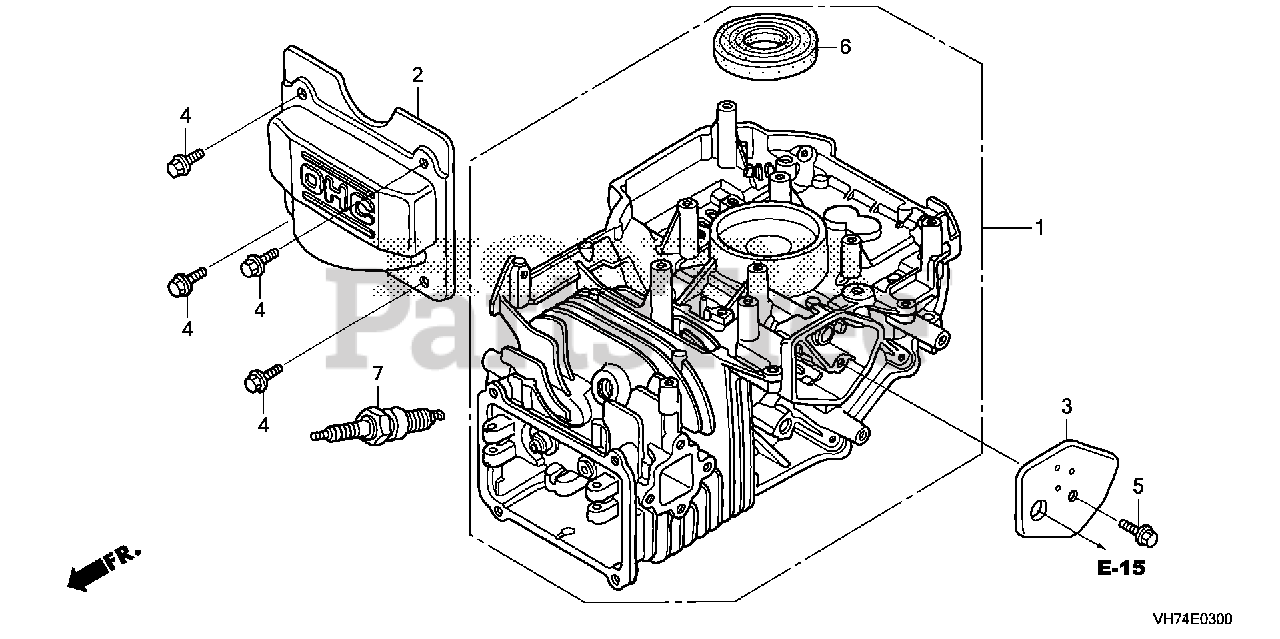

CYLINDER Parts Diagram

  • Title

1

Honda 12000-Z8D-N30

CYLINDER ASSY.
(Superseded to 12000-Z8D-N31)

Note: Use from Engine SN 2661510.

$88.99

$

Usually ships in 3-6 days

0

1

Honda 12000-Z0Y-M40

CYLINDER ASSY.

Note: Use up to Engine SN 2661509.

$

$

Not available

2

Honda 12311-Z8B-000

COVER, HEAD

$17.99

$

Usually ships in 3-6 days

0

3

Honda 12355-ZL8-000

COVER, BREATHER (BREATHER VALVE ASSY.)

$9.49

$

In Stock, Qty 5

0

4

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

5

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

6

Honda 91201-Z0Y-003

OIL SEAL (25.4X62X6)

$3.99

$

In Stock, Qty 7

0

7

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

$3.49

$

In Stock, Qty 20+

0
