HRX217 K1 HXA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-1400001 - MAGA-1499999) CONTROL Parts Diagram

21" Walk-Behind Mower, Made in USA

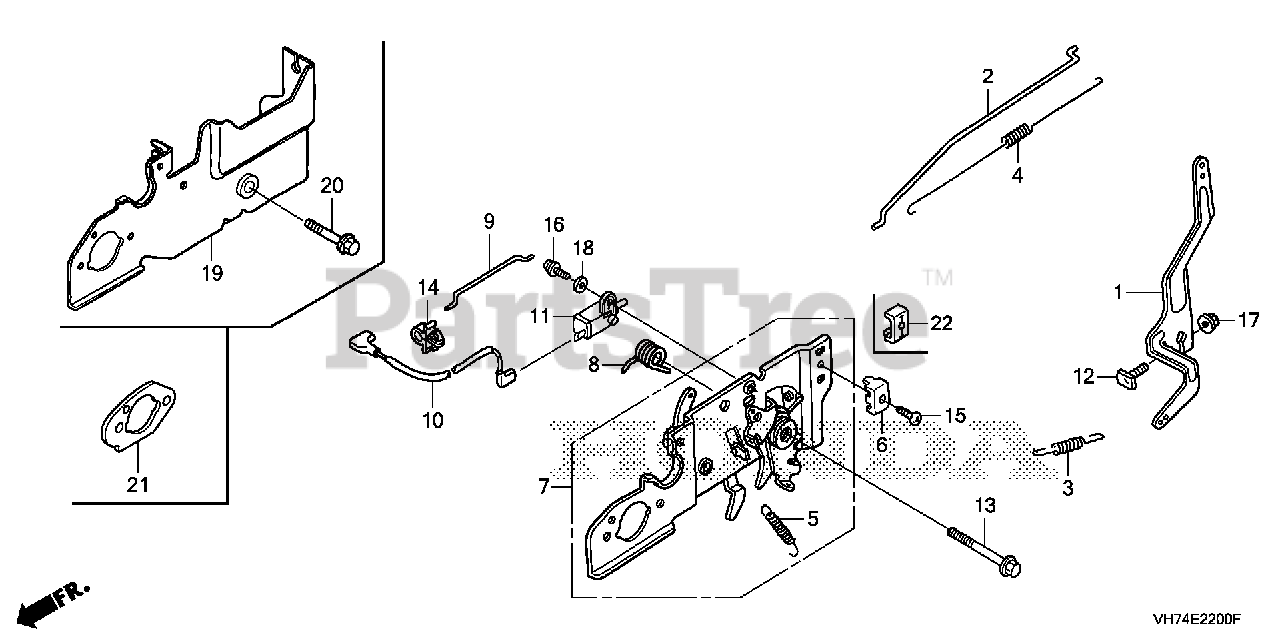

CONTROL Parts Diagram

  • Title

1

Honda 16551-ZM0-010

ARM, GOVERNOR

$7.49

$

In Stock, only 1 left!

0

2

Honda 16555-ZM0-000

ROD, GOVERNOR

Note: Use up to Engine SN 1407409.

$5.49

$

In Stock, only 1 left!

0

2

Honda 16555-Z0L-801

SEE PART DETAILS - PRI; ROD, GOVERNOR

Note: Use from Engine SN 1407410.

$0.99

$

In Stock, only 2 left!

0

3

Honda 16561-Z0L-000

SPRING, GOVERNOR

$1.99

$

In Stock, Qty 6

0

4

Honda 16562-ZM0-000

SPRING, THROTTLE RETURN

$3.49

$

In Stock, Qty 9

0

5

Honda 16576-ZE7-300

SPRING, LEVER

$4.99

$

In Stock, only 1 left!

0

6

Honda 16617-VG3-000

HOLDER, CABLE

$6.49

$

In Stock, only 4 left!

0

7

Honda 16580-ZM1-J02

BASE, CONTROL

$30.99

$

Usually ships in 3-6 days

0

8

Honda 16593-ZM0-000

SPRING, CONTROL LEVER RETURN

$4.99

$

In Stock, only 2 left!

0

9

Honda 16674-ZM0-000

ROD, CHOKE

$2.49

$

In Stock, only 1 left!

0

12

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

$3.49

$

In Stock, only 3 left!

0

13

Honda 90016-ZM0-000

BOLT, FLANGE (6X45) (CT200)

$1.99

$

In Stock, Qty 5

0

15

Honda 93500-05016-0A

SCREW, PAN (5X16)

$1.49

$

In Stock, Qty 7

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
