HRX217 K1 HMA (MAGA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MAGA-1400001 - MAGA-1499999) BATTERY & MAIN HARNESS Parts Diagram

21" Walk-Behind Mower, Made in USA

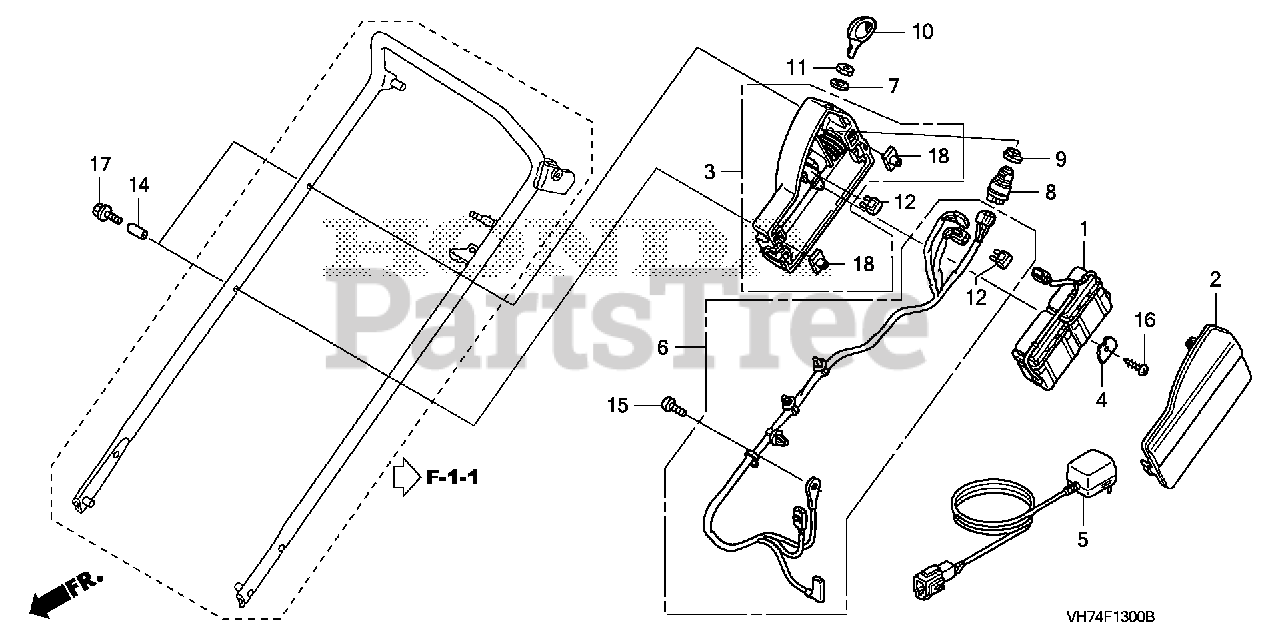

BATTERY & MAIN HARNESS Parts Diagram

  • Title

1

Honda 31500-VH7-B01

BATTERY ASSY. (12V 2.5AH) (MSDS)

$137.99

$

In Stock, only 2 left!

0

2

Honda 31510-VH7-B00

COVER ASSY., BATTERY

$47.99

$

Usually ships in 3-6 days

0

3

Honda 31550-VH7-B00

BOX, BATTERY

$52.99

$

Usually ships in 3-6 days

0

4

Honda 31552-VH7-B00

PLATE, BATTERY

$13.99

$

Usually ships in 3-6 days

0

5

Honda 31570-VH7-B03

CHARGER ASSY., BATTERY

$47.99

$

In Stock, only 2 left!

0

6

Honda 32100-VH7-B00

HARNESS ASSY., MAIN

$34.99

$

Usually ships in 3-6 days

0

7

Honda 33650-KAF-000

COLLAR, FR. TURN SIGNAL

$4.49

$

In Stock, only 1 left!

0

8

Honda 35100-VH7-B01

SWITCH ASSY., COMBINATION

$27.99

$

In Stock, only 1 left!

0

9

Honda 35102-772-000

BASE, COMBINATION SWITCH

$2.49

$

In Stock, only 2 left!

0

10

Honda 35110-772-013

SEE PART DETAILS - PRI; KEY, COMBINATION SWITCH

$5.49

$

In Stock, only 1 left!

0

11

Honda 35114-VH7-B00

NUT, SWITCH

$5.99

$

In Stock, only 1 left!

0

12

Honda 38201-VH7-B00

FUSE A (40A)

$0.99

$

In Stock, Qty 7

0

14

Honda 91559-VH7-B00

COLLAR, BATTERY MOUNTING

$2.49

$

In Stock, only 3 left!

0

15

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

16

Honda 93911-15220

SCREW, TAPPING (5X12) (PO)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 95701-06035-07

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 1 left!

0

18

Honda 61304-958-003

NUT, SPECIAL (6X7)

$4.99

$

In Stock, Qty 20+

0
