HRT216 S3DA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-6000001 - MZCG-6195898) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in USA

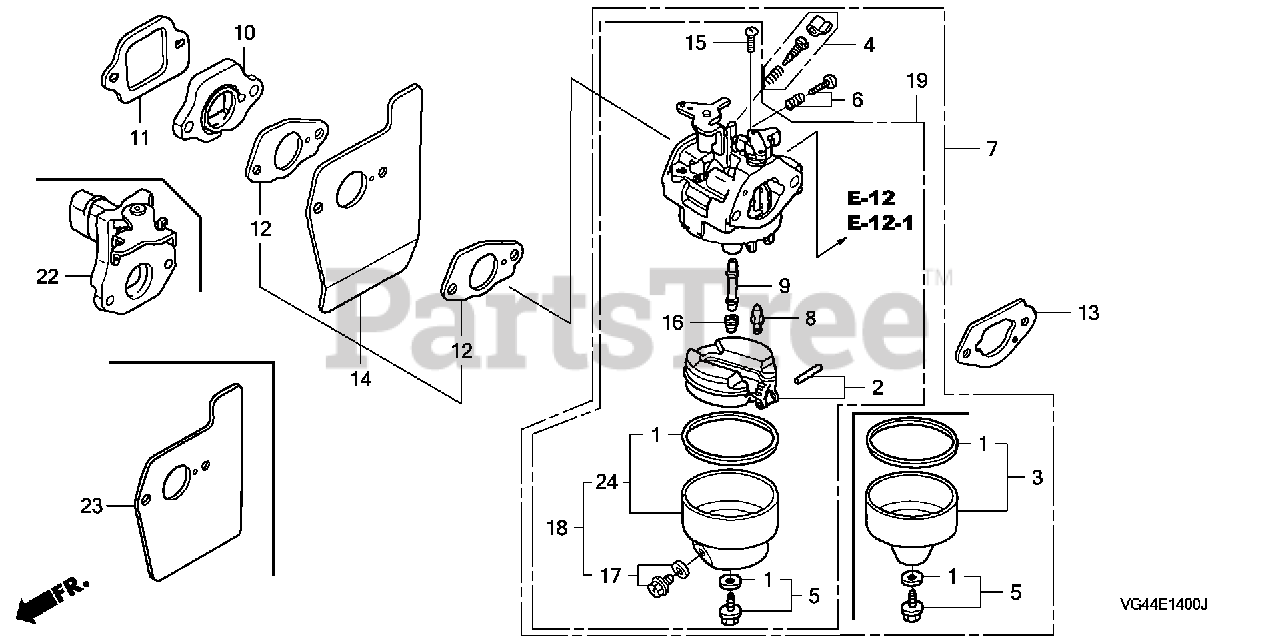

CARBURETOR Parts Diagram

  • Title
1

Honda 16010-883-015

GASKET SET

$13.99

$

In Stock, Qty 14

0

2

$33.99

$

In Stock, only 2 left!

0

3

Honda 16015-892-015

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use up to Engine SN BB62B C.

$

$

Currently unavailable

4

$13.99

$

Usually ships in 3-6 days

0

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

6

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16100-ZM0-802

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB62B C)
(Superseded to 16100-Z0L-023)

Note: Use up to Engine SN 1676295.

$25.99

$

In Stock, Qty 20+

0

7

Honda 16100-ZM0-803

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB62B D)
(Superseded to 16100-Z0L-023)

$25.99

$

In Stock, Qty 20+

0

7

Honda 16100-ZM0-804

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BB62B E)
(Superseded to 16100-Z0L-023)

$25.99

$

In Stock, Qty 20+

0

7

Honda 16100-Z0L-023

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB62W C)

$25.99

$

In Stock, Qty 20+

0

8

Honda 16155-ZM0-003

VALVE, FLOAT (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0

9

Honda 16166-ZM0-003

NOZZLE, MAIN

$22.99

$

In Stock, only 1 left!

0

10

Honda 16211-ZL8-000

INSULATOR, CARBURETOR

$4.49

$

In Stock, Qty 20+

0

11

Honda 16212-ZL8-000

GASKET, INSULATOR

$7.99

$

In Stock, Qty 20+

0

12

Honda 16221-883-800

GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

13

Honda 16228-ZL8-000

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

14

Honda 19650-ZM0-000

GUIDE, AIR

$9.99

$

In Stock, Qty 7

0

15

Honda 93500-05006-0H

SCREW, PAN (5X6)

$0.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0600

JET, MAIN (#60)

Note: (Optional).

$12.99

$

In Stock, Qty 5

0

16

Honda 99101-124-0620

JET, MAIN (#62)

Note: (Optional).

$11.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0650

JET, MAIN (#65)

$13.99

$

In Stock, only 2 left!

0

17

Honda 16024-ZE1-811

SCREW SET, DRAIN (CARBURETOR NO.)

Note: Use from Engine SN BB62B D.

$10.99

$

In Stock, only 3 left!

0

18

Honda 16015-887-782

CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use from Engine SN BB62B D.

$35.99

$

In Stock, only 1 left!

0
