HRT 1240 G (UT-33024) - Homelite Tractor Mower Lift and Drive Parts Diagram

Tractor

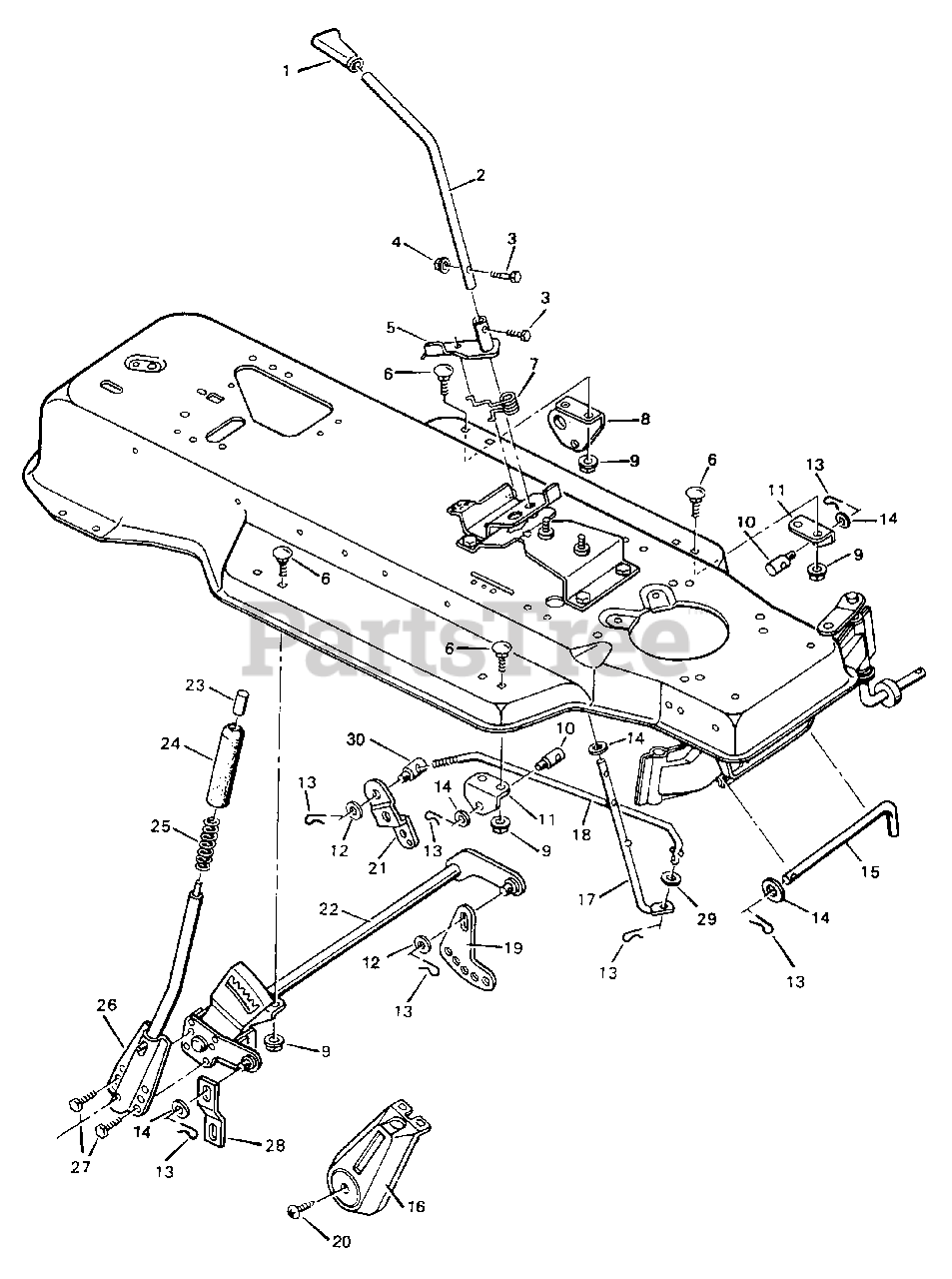

Mower Lift and Drive Parts Diagram

  • Title

$

$

Currently unavailable

2

Homelite 0354614

LEVER- Blade control

$

$

Currently unavailable

3

Homelite 0354615

BOLT- Hex

$

$

Currently unavailable

4

Homelite JA444708

NUT- Lock (hex)

$

$

Currently unavailable

5

Homelite 0354616

SWITCH LEVER ASSEMBLY

$

$

Currently unavailable

6

Homelite JA441602

BOLT- Carriage

$4.99

$

Usually ships in 3-7 days

0

7

Homelite 0354617

SPRING- Torsion

$

$

Currently unavailable

8

Homelite 0354618

BRACKET- Left rear hanger

$

$

Currently unavailable

9

Homelite JA445775

NUT- Flange
(Superseded to UP06674)

$

$

Not available

10

Homelite 0354619

NUT- Adjusting

$

$

Currently unavailable

11

Homelite 0354620

BRACKET- Adjusting rod

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Homelite JA460312

PIN- Hair

$

$

Not available

14

$

$

Not available

15

Homelite 0354622

PIN- Pull

$

$

Currently unavailable

16

Homelite 0354634

COVER- Lift lever

$

$

Currently unavailable

17

Homelite 0354623

LEVER- Lower blade control

$

$

Currently unavailable

18

Homelite 0354624

ROD- Blade control

$

$

Currently unavailable

19

Homelite 0354625

PLATE- Adjuster

$

$

Currently unavailable

20

$

$

Currently unavailable

21

Homelite 0354626

BRACKET- Pivot

$

$

Currently unavailable

22

Homelite 0354627

LIFTER ASSEMBLY

$

$

Currently unavailable

23

Homelite 0354628

KNOB- Steel

$

$

Currently unavailable

$

$

Currently unavailable

25

Homelite 0354630

SPRING- Compression

$

$

Currently unavailable

26

Homelite 0354631

HANDLE ASSEMBLY

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Homelite 0354633

LINK- Suspension

$

$

Currently unavailable

29

Homelite JA453009

WASHER
(Superseded to UP07173)

$

$

Not available

30

Homelite 0354636

NUT- Adjusting

$

$

Currently unavailable
