HRT 1240 G (UT-33024) - Homelite Tractor Frame Parts Diagram

Tractor

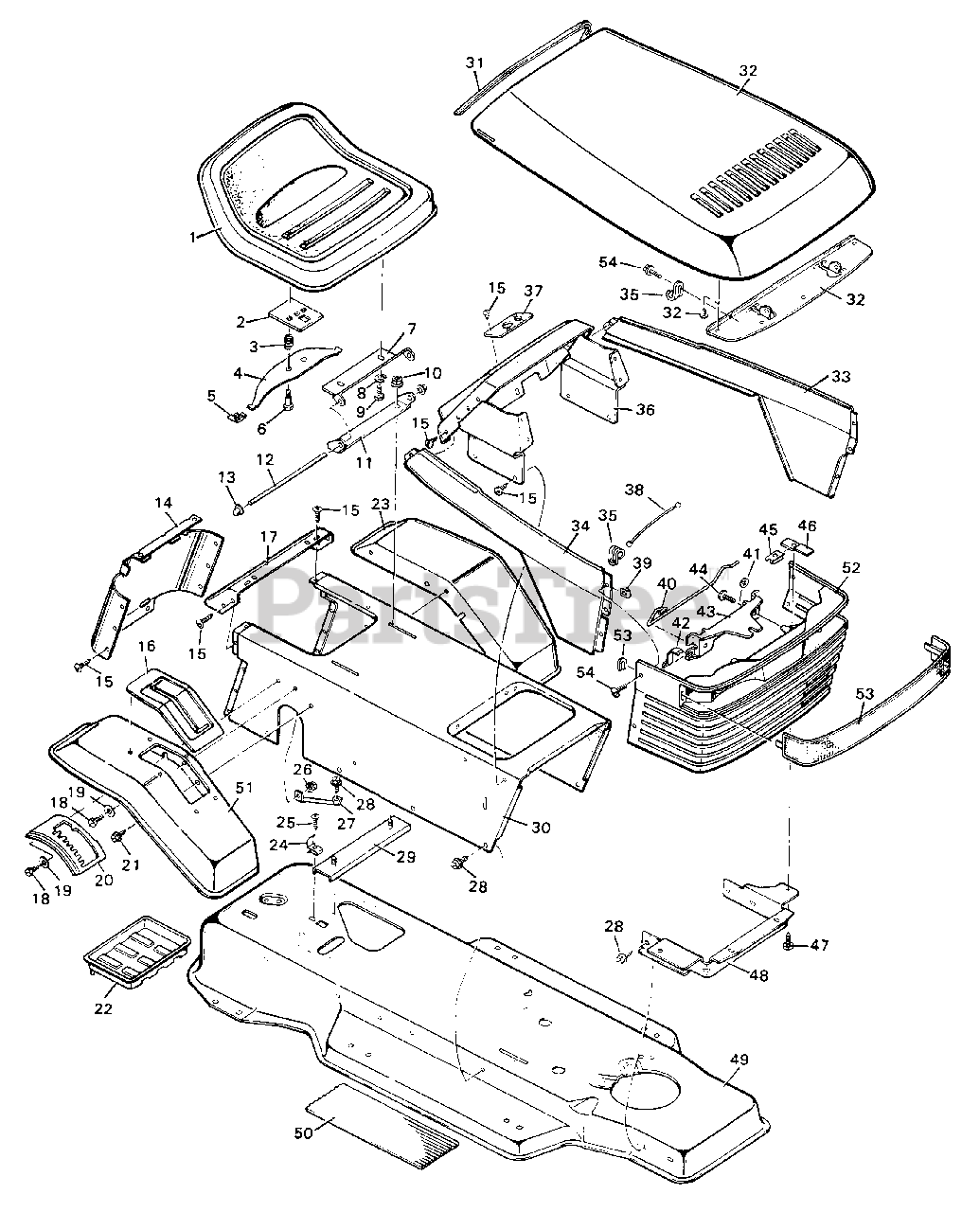

Frame Parts Diagram

  • Title

$

$

Currently unavailable

2

Homelite 0354502

SWITCH PLATE ASSEMBLY

$

$

Currently unavailable

3

Homelite 0354503

SPRING- Compression

$

$

Currently unavailable

4

Homelite 0354504

SPRING- Seat

$

$

Currently unavailable

5

Homelite 0354505

GLIDE- Spring

$

$

Currently unavailable

6

Homelite 0354506

BOLT- Shoulder

$

$

Currently unavailable

7

Homelite 0354507

SUPPORT- Seat

$

$

Currently unavailable

8

Homelite JA446134

WASHER- Lock (5/16)
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

9

Homelite JA400182

BOLT- Hex

$

$

Not available

10

Homelite JA445775

NUT- Hex washer
(Superseded to UP06674)

$

$

Not available

11

Homelite 0354508

BRACKET- Pivot

$

$

Currently unavailable

12

Homelite 0354509

ROD- Pivot

$

$

Currently unavailable

13

Homelite JA994935

CAP- Push on

$

$

Currently unavailable

14

Homelite A0354915

CAP- Console

$

$

Currently unavailable

15

Homelite 0354510

SCREW- Tap

$

$

Currently unavailable

16

Homelite 0354511

COVER- Shift

$

$

Currently unavailable

17

Homelite 0354512

FENDER- Apron

$

$

Currently unavailable

18

Homelite JA400106

BOLT- Hex

$

$

Currently unavailable

19

Homelite 84006

WASHER- Flat

$

$

Not available

20

Homelite 0354513

GATE- Shift

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Homelite 0354515

TRAY- Battery

$

$

Currently unavailable

23

Homelite 0354516

FENDER- Left

$

$

Currently unavailable

24

Homelite 0354517

CLIP- Battery

$

$

Currently unavailable

25

$

$

Currently unavailable

26

Homelite JA444708

NUT- Lock

$

$

Currently unavailable

27

Homelite 0354519

STRUT- Console

$

$

Currently unavailable

28

$

$

Currently unavailable

29

Homelite 0354521

CHANNEL ASSEMBLY

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Homelite 0354522

TRIM- Edge

$

$

Currently unavailable

32

Homelite A0354901

HOOD ASSEMBLY

$

$

Currently unavailable

33

Homelite A0354903

PANEL- Left

$

$

Currently unavailable

34

Homelite A0354905

PANEL- Right

$

$

Currently unavailable

35

Homelite 0354523

CLIP- Cable

$

$

Currently unavailable

36

Homelite A0354907

DASH ASSEMBLY

$

$

Currently unavailable

37

$

$

Currently unavailable

38

$

$

Currently unavailable

39

Homelite 0354526

U-FASTENER

$

$

Currently unavailable

40

Homelite 0354527

ROD- Hinge

$

$

Currently unavailable

41

Homelite JA453023

WASHER
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

42

Homelite 0354528

SPRING- Hood

$

$

Currently unavailable

43

Homelite 0354529

BRACKET- Hood mount

$

$

Currently unavailable

44

$

$

Currently unavailable

45

Homelite 0354531

NUT- Speed

$

$

Currently unavailable

46

Homelite 0354532

SHIELD- Heat

$

$

Currently unavailable

47

$

$

Currently unavailable

48

Homelite 0354534

SUPPORT- Grille

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

51

Homelite A0354912

FENDER- Right

$

$

Currently unavailable

52

$

$

Currently unavailable

$

$

Currently unavailable

54

$

$

Currently unavailable
