HRT 1240 G (UT-33024) - Homelite Tractor Engine and Tank Parts Diagram

Tractor

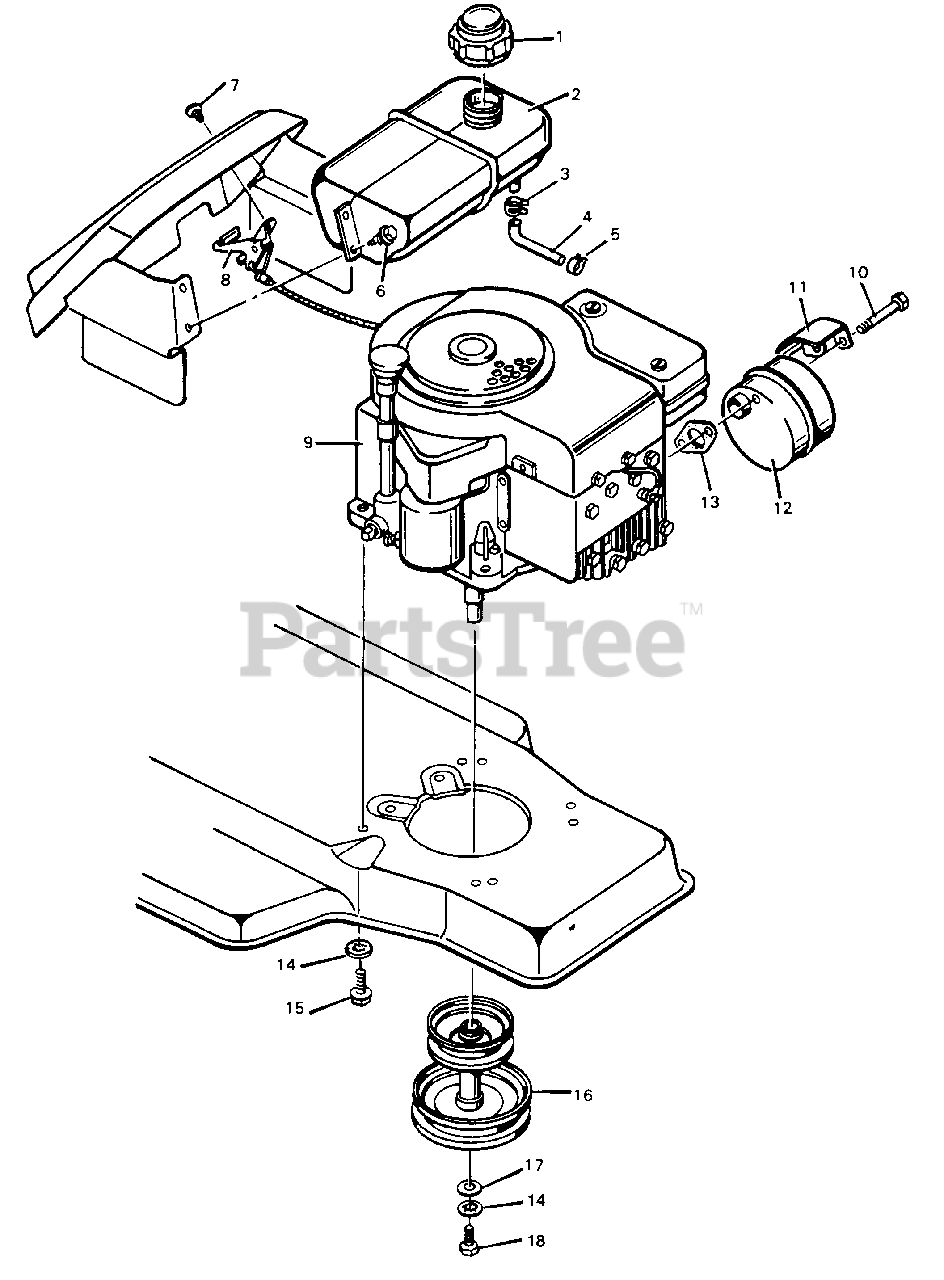

Engine and Tank Parts Diagram

  • Title

1

Homelite 0354657

CAP- Fuel

$

$

Currently unavailable

2

Homelite 0354658

TANK- Fuel

$

$

Not available

3

Homelite 0354659

CLAMP- Hose

$

$

Currently unavailable

4

Homelite 0354660

LINE- Fuel

$

$

Currently unavailable

5

Homelite 0354661

CLAMP- Hose

$

$

Currently unavailable

6

Homelite 0354514

SCREW

$

$

Currently unavailable

7

Homelite 0354662

SCREW

$

$

Currently unavailable

8

Homelite 0354663

CONTROL- Throttle

$

$

Currently unavailable

9

ENGINE

Note: For engine replacement parts, locate the engine brand name, model number, and type number and consult the appropriate dealer in your area.

$

$

Not available

10

Homelite 0354664

BOLT- Hex

$

$

Currently unavailable

11

Homelite 0354665

SHIELD- Muffler heat

$

$

Currently unavailable

12

Homelite 0354666

MUFFLER

$

$

Currently unavailable

13

Homelite 0354667

GASKET

$

$

Currently unavailable

14

Homelite JA447014

WASHER

$5.49

$

Usually ships in 3-7 days

0

15

Homelite 0354668

BOLT- Engine mount

$

$

Currently unavailable

16

Homelite 0354669

STACK PULLEY ASSEMBLY

$

$

Currently unavailable

17

Homelite 0354670

WASHER

$

$

Currently unavailable

18

Homelite 0354671

BOLT- Hex

$

$

Currently unavailable
