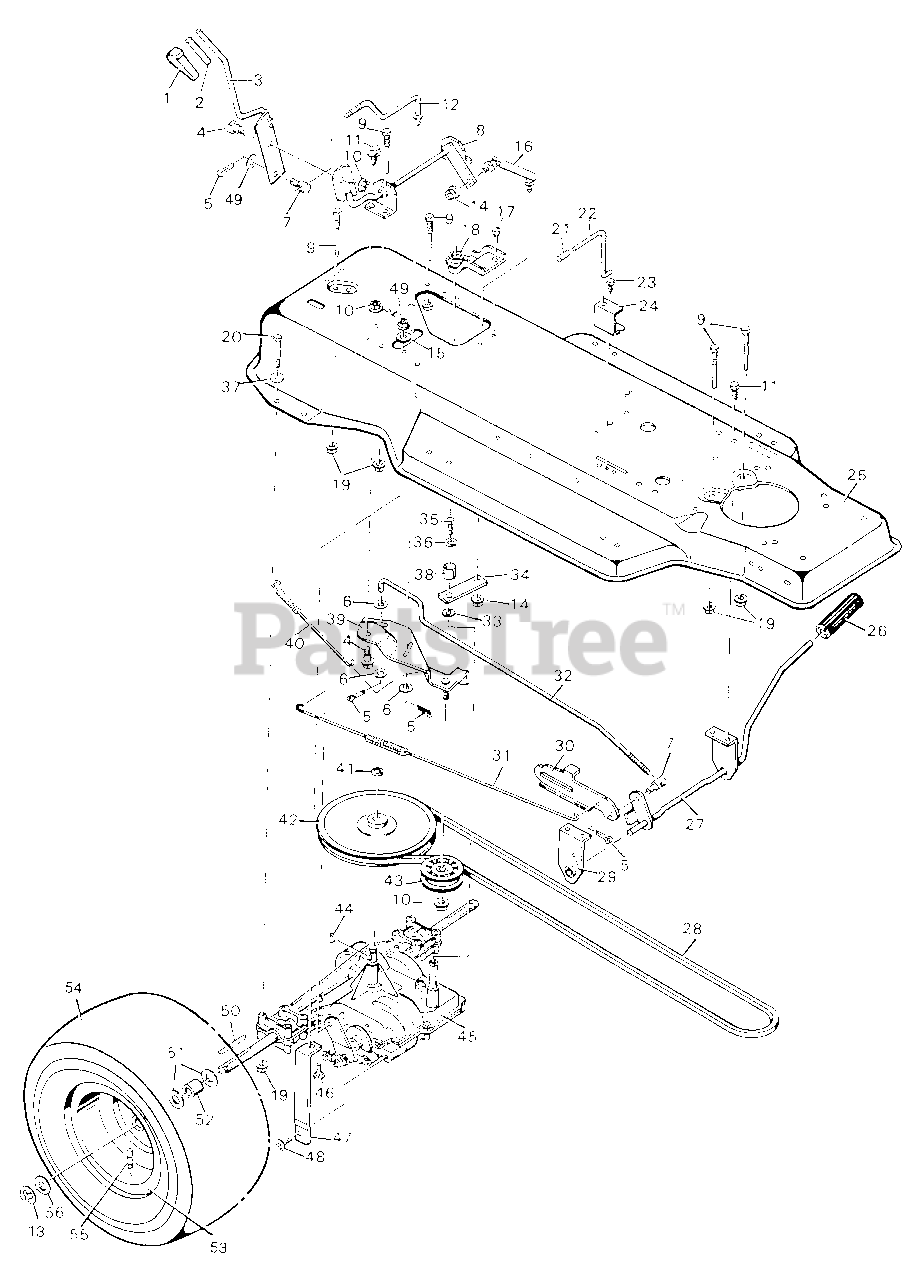

HRT 1240 G (UT-33024) - Homelite Tractor Drive & Clutch Parts Diagram

Tractor

Drive & Clutch Parts Diagram

  • Title

1

Homelite 0354539

GRIP

$

$

Currently unavailable

2

Homelite 0354540

GRIP- Inner

$

$

Currently unavailable

3

Homelite 0354541

HANDLE- Shift

$

$

Currently unavailable

4

Homelite 0354542

BOLT- Shoulder

$

$

Currently unavailable

5

Homelite JA460014

PIN- Cotter

$

$

Not available

6

Homelite JA453009

WASHER
(Superseded to UP07173)

$

$

Not available

7

Homelite 0354543

NUT- Adjustable

$

$

Currently unavailable

8

Homelite 0354544

SHIFTER ASSEMBLY

$

$

Currently unavailable

9

Homelite 0354545

GUIDE- Belt

$

$

Currently unavailable

10

Homelite 0354546

NUT- Lock (flange)

$

$

Currently unavailable

11

Homelite 0354520

SCREW

$

$

Currently unavailable

12

Homelite 0354547

LINK- Clutch

$

$

Currently unavailable

13

Homelite 0354582

E-RING

$

$

Currently unavailable

14

Homelite 0354548

NUT- Lock (flange)

$

$

Currently unavailable

15

Homelite 84027

WASHER

$

$

Not available

16

Homelite 0354549

SHIFTER LINK ASSEMBLY

$

$

Currently unavailable

17

Homelite 0354520

SCREW

$

$

Currently unavailable

18

Homelite 0354550

BRACKET- Support

$

$

Currently unavailable

19

Homelite JA445775

NUT- Flange
(Superseded to UP06674)

$

$

Not available

20

Homelite 0354551

BOLT- Hex

$

$

Currently unavailable

21

Homelite 0354552

GRIP

$

$

Currently unavailable

22

Homelite 0354553

ROD- Control

$

$

Currently unavailable

23

Homelite 0354514

SCREW

$

$

Currently unavailable

24

Homelite 0354554

GUIDE- Bracket

$

$

Currently unavailable

25

Homelite A0354917

FRAME

$

$

Currently unavailable

26

Homelite 0354556

CLUTCH AND BRAKE PEDAL

$

$

Currently unavailable

27

Homelite 0354557

LEVER ASSEMBLY

$

$

Currently unavailable

28

Homelite 0354558

BELT- Motion drive

$

$

Currently unavailable

29

Homelite 0354559

BRACKET- Support

$

$

Currently unavailable

30

Homelite 0354560

LATCH- Park brake

$

$

Currently unavailable

31

Homelite 0354561

SPRING- Brake extension

$

$

Currently unavailable

32

Homelite 0354562

ROD- Clutch

$

$

Currently unavailable

33

Homelite 0354563

WASHER

$

$

Currently unavailable

34

Homelite 0354564

YOKE- Shift

$

$

Currently unavailable

35

Homelite 0354565

BOLT- Hex

$

$

Currently unavailable

36

Homelite JA446130

WASHER- Lock

$

$

Not available

37

Homelite 0354566

WASHER

$

$

Currently unavailable

38

Homelite 0354567

PILOT- Support

$

$

Currently unavailable

39

Homelite 0354568

BRACKET ASSEMBLY- Idler

$

$

Currently unavailable

40

Homelite 0354569

SPRING- Motion drive extension

$

$

Currently unavailable

41

Homelite JA458009

RING- Retainer

$

$

Not available

42

Homelite 0354570

PULLEY- Motion drive

$

$

Currently unavailable

43

Homelite 0354571

PULLEY- Backside idler

$

$

Currently unavailable

44

Homelite JA463009

KEY- Woodruff #9

$

$

Currently unavailable

45

TRANSAXLE- Peerless (Model No. 930-011)

Note: See your authorized Tecumseh Service Dealer for transaxle replacement parts.

$

$

Not available

46

Homelite JA441602

BOLT- Carriage

$4.99

$

Usually ships in 3-7 days

0

47

Homelite 0354573

SUPPORT- Transaxle

$

$

Currently unavailable

48

Homelite 0354574

SCREW

$

$

Currently unavailable

49

Homelite 84010

WASHER
(Superseded to PS84010)

$

$

Not available

50

Homelite 0354575

KEY- Square

$

$

Currently unavailable

51

Homelite 0354576

WASHER

$

$

Currently unavailable

52

Homelite 0354577

SPACER- Transaxle

$

$

Currently unavailable

53

Homelite 0354579

WHEEL & TIRE ASSEMBLY

Note: When ordering a tire, make sure to give the brand name of the tire so that the tread pattern on the tire wall match.

$

$

Currently unavailable

54

Homelite 0354578

TIRE

$

$

Currently unavailable

Homelite 0354924

TUBE

$

$

Currently unavailable

55

Homelite 0354580

STEM-Valve

$

$

Currently unavailable

56

Homelite 0354581

WASHER

$

$

Currently unavailable
