HRS216 PDA (MZBZ) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBZ-6000001 - MZBZ-6099999) FLYWHEEL (1) Parts Diagram

21" Walk-Behind Mower, Made in USA

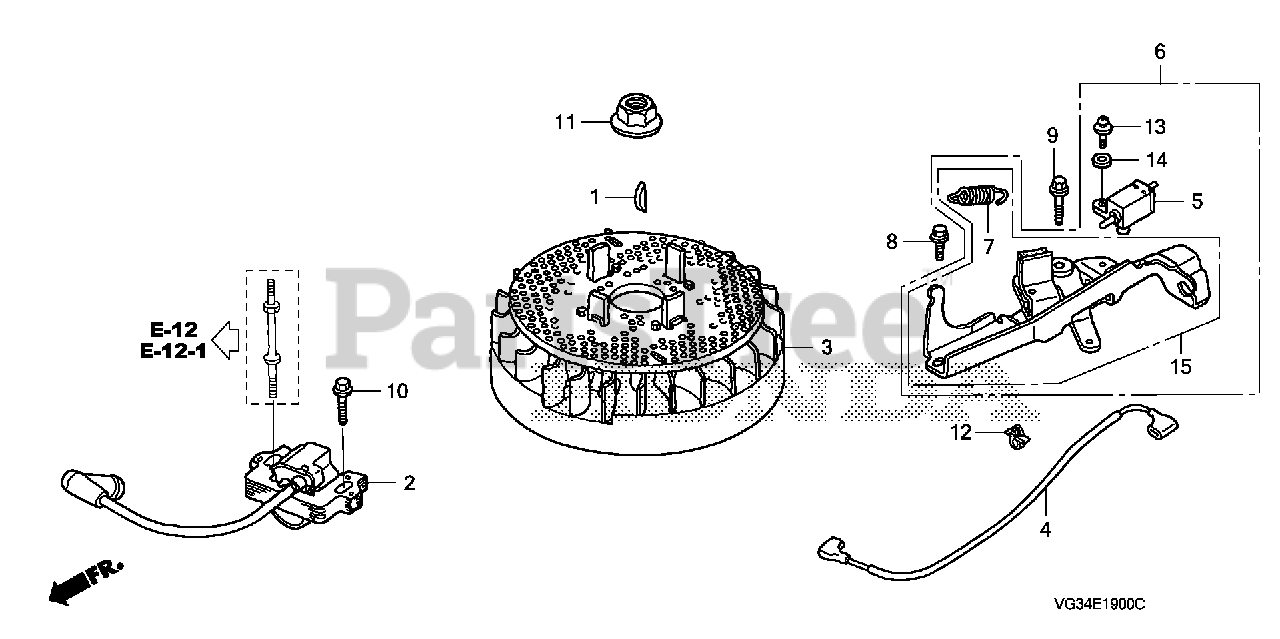

FLYWHEEL (1) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.99

$

In Stock, Qty 7

0

2

Honda 30500-ZL8-004

SEE PART DETAILS - SUP; COIL ASSY., IGNITION (USE FOR F/W OF TEC) (TEC)
(Superseded to 30500-ZL8-014)

$54.99

$

Usually ships in 3-6 days

0

2

Honda 30500-ZL8-014

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (USE FOR F/W OF TEC) (TEC)

$54.99

$

Usually ships in 3-6 days

0

3

Honda 31105-ZM0-000

FLYWHEEL ASSY. (TEC) (USE FOR IGN. COIL OF TEC)

$60.99

$

In Stock, only 1 left!

0

4

Honda 32195-ZM0-000

WIRE, STOP SWITCH

$10.99

$

In Stock, Qty 8

0

5

Honda 35120-ZM0-003

SWITCH ASSY., ENGINE STOP (N.C)

$12.99

$

In Stock, only 2 left!

0

6

Honda 75100-Z0L-901

SEE PART DETAILS - PRI; BRAKE ASSY.

$57.99

$

In Stock, Qty 5

0

6

Honda 75100-Z8B-900

SEE PART DETAILS - SUP; BRAKE ASSY.
(Superseded to 75100-Z0L-901)

$57.99

$

In Stock, Qty 5

0

7

Honda 75113-ZM0-000

SPRING, BRAKE LEVER

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

9

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

In Stock, only 2 left!

0

10

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

11

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

12

Honda 90681-959-003

CLIP A, CABLE (3.8MM BLACK) (NIFCO)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 93892-04012-00

SCREW-WASHER (4X12)

$0.99

$

In Stock, Qty 8

0

14

Honda 94103-04000

WASHER, PLAIN (4MM)

$0.99

$

In Stock, Qty 7

0
