HRS216 PDA (MZBZ) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBZ-6000001 - MZBZ-6099999) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

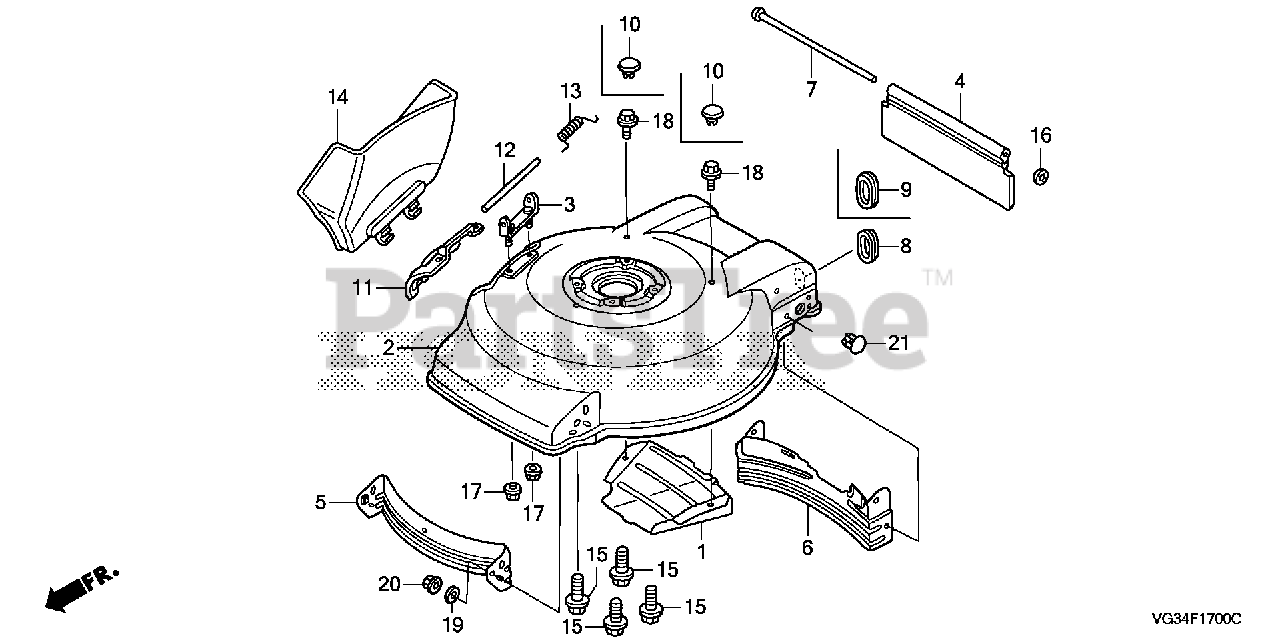

CUTTER HOUSING Parts Diagram

  • Title

2

Honda 76111-VG3-D00ZA

HOUSING, CUTTER *NH190M* (VINTAGE GRAY METALLIC)
(Superseded to 76111-VG3-D01ZA)

$178.99

$

Usually ships in 3-6 days

0

3

Honda 76114-VG3-000

HINGE, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

4

Honda 76118-VG3-020

SHIELD, RR. (N/A: USE 06761-VG3-305 WHICH INCL. SHIELD, SHAFT, PUSH NUT)

$25.99

$

In Stock, only 1 left!

0

5

Honda 76125-VG3-010

SCROLL, FR.

$21.99

$

In Stock, only 2 left!

0

6

Honda 76131-VG3-000

SCROLL, RR.

$8.49

$

In Stock, only 1 left!

0

7

Honda 06762-VG3-000

SEE PART DETAILS - PRI; SHAFT, RR. SHIELD (403MM)

$

$

Not available

7

Honda 76138-VG3-010

SHAFT, RR. SHIELD (405MM)

$1.49

$

In Stock, Qty 17

0

9

Honda 76232-VG3-000

GROMMET, PLUG

$1.49

$

In Stock, Qty 7

0

10

Honda 76233-VG3-000

PLUG, HOLE

$0.99

$

In Stock, only 1 left!

0

11

Honda 76281-VG3-010ZA

GUARD, DISCHARGE *NH105* (MAT BLACK)
(Superseded to 76281-VG3-030ZA)

$10.99

$

In Stock, only 1 left!

0

12

Honda 76282-VG3-000

SHAFT, DISCHARGE GUARD

$24.99

$

Usually ships in 3-6 days

0

13

Honda 76284-VG3-010

SPRING, GUARD RETURN

$1.49

$

Usually ships in 3-6 days

0

14

Honda 81211-VG3-010ZA

SEE PART DETAILS - SUP; CHUTE, SIDE DISCHARGE *NH105* (MAT BLACK)
(Superseded to 81211-VG3-020ZA)

$4.99

$

In Stock, only 2 left!

0

14

Honda 81211-VG3-020ZA

SEE PART DETAILS - PRI; CHUTE, SIDE DISCHARGE *NH105* (MAT BLACK)

$4.99

$

In Stock, only 2 left!

0

15

Honda 90104-VG3-000

BOLT, FLANGE (5/16-24X1")

$0.99

$

In Stock, Qty 8

0

16

Honda 06762-VG3-000

SEE PART DETAILS - PRI; NUT, PUSH (3.96MM) (FLAT ROUND TYPE)

$

$

Not available

16

Honda 90301-VG3-020

SEE PART DETAILS - PRI; NUT, PUSH (3.96MM) (FLAT ROUND TYPE)

$1.49

$

In Stock, only 4 left!

0

17

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

19

Honda 90506-VG3-000

WASHER, PLAIN (5/16)

$0.99

$

In Stock, Qty 6

0

20

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0
