HRS216 K7 VKAA (MZBZ) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBZ-6580001 - MZBZ-9999999) HANDLEBAR (3) Parts Diagram

21" Walk-Behind Mower, Made in USA

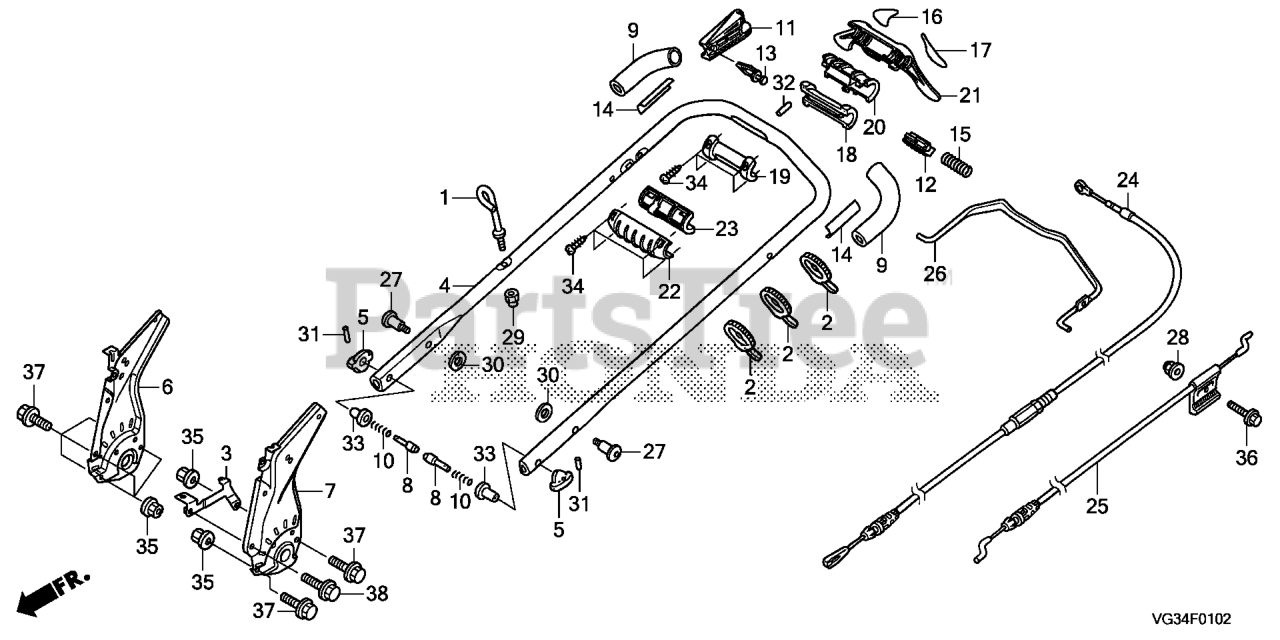

HANDLEBAR (3) Parts Diagram

  • Title

1

Honda 28475-VL0-S00

GUIDE, ROPE

$35.99

$

Usually ships in 3-6 days

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

3

Honda 53104-VG3-N00

BRACKET, CABLE MOUNT

$6.49

$

Usually ships in 3-6 days

0

4

Honda 53111-VL0-N01ZA

PIPE, HANDLE *NH105* (MAT BLACK)

$46.99

$

Usually ships in 3-6 days

0

5

Honda 53125-VL0-B00ZA

GRIP, HANDLE JOINT *NH164* (GRIP GRAY)

$5.49

$

In Stock, Qty 11

0

6

Honda 53130-VG3-N00

STAY, R. HANDLE

$72.99

$

Usually ships in 3-6 days

0

7

Honda 53135-VG3-N00

STAY, L. HANDLE

$33.99

$

Usually ships in 3-6 days

0

8

Honda 53158-VL0-B01

SEE PART DETAILS - PRI; PIN (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 53165-VL0-C00

GRIP, HANDLE

$2.49

$

In Stock, only 1 left!

0

10

Honda 53367-VL0-B00

SPRING, HANDLE ADJUSTING

$8.49

$

In Stock, Qty 5

0

11

Honda 54315-VH7-K00

STOPPER, LEVER

$1.49

$

In Stock, Qty 9

0

12

Honda 54315-VH7-L00

LEVER, SELECT

$1.49

$

In Stock, only 2 left!

0

13

Honda 54316-VH7-K00

PIN, LOCK

$0.99

$

In Stock, Qty 16

0

14

Honda 54322-VL0-B00

HOLD, GRIP

$0.99

$

In Stock, Qty 7

0

15

Honda 54411-VH7-L00

SPRING, SELECT LEVER

$0.99

$

In Stock, Qty 20+

0

16

Honda 54421-VL0-L00

GRIP, R. PAD

$8.99

$

In Stock, Qty 10

0

17

Honda 54426-VL0-L00

GRIP, L. PAD

$14.99

$

In Stock, Qty 14

0

18

Honda 54434-VL0-B00

BRACKET, GRIP (UPPER)

$3.49

$

In Stock, Qty 20+

0

19

Honda 54437-VL0-B00

BRACKET, GRIP (LOWER)

$2.99

$

In Stock, Qty 18

0

20

Honda 54442-VL0-P00

COVER, BRACKET (UPPER)

$2.49

$

In Stock, only 1 left!

0

21

Honda 54443-VH7-L00

GRIP, CLUTCH (UPPER)

$6.49

$

In Stock, Qty 10

0

22

Honda 54446-VH7-L00

GRIP, CLUTCH (LOWER)

$4.49

$

In Stock, Qty 8

0

23

Honda 54447-VL0-P00

COVER, BRACKET (LOWER)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 54510-VG3-N01

CABLE, CLUTCH

$100.99

$

Usually ships in 3-6 days

0

25

Honda 54530-VG3-N01

CABLE, BRAKE

$28.99

$

In Stock, only 1 left!

0

26

Honda 75191-VH7-K00ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$14.99

$

Usually ships in 3-6 days

0

27

Honda 90102-VL0-P00

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X32)

$1.99

$

In Stock, Qty 8

0

28

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 14

0

29

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

30

Honda 90503-VL0-B00

WASHER (25MM)

$0.99

$

In Stock, Qty 20+

0

31

Honda 90751-VL0-B00

PIN, COILED (2X12)

$0.99

$

In Stock, Qty 20+

0

32

Honda 91151-VH7-H50

ROLLER (5X37.3)

$0.99

$

In Stock, Qty 17

0

33

Honda 91551-VL0-B00

COLLAR, HANDLE HEIGHT ADJUSTING

$1.99

$

In Stock, Qty 20+

0

34

Honda 93911-14280

SCREW, TAPPING (4X12)

$0.99

$

In Stock, Qty 20+

0

35

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 17

0

36

Honda 95701-06045-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2410967).

$2.99

$

In Stock, Qty 10

0

37

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0

38

Honda 95701-08018-07

SEE PART DETAILS - SUP; BOLT, FLANGE (8X18)

$1.49

$

Usually ships in 3-6 days

0
