HRS216 K7 VKAA (MZBZ) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBZ-6580001 - MZBZ-9999999) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in USA

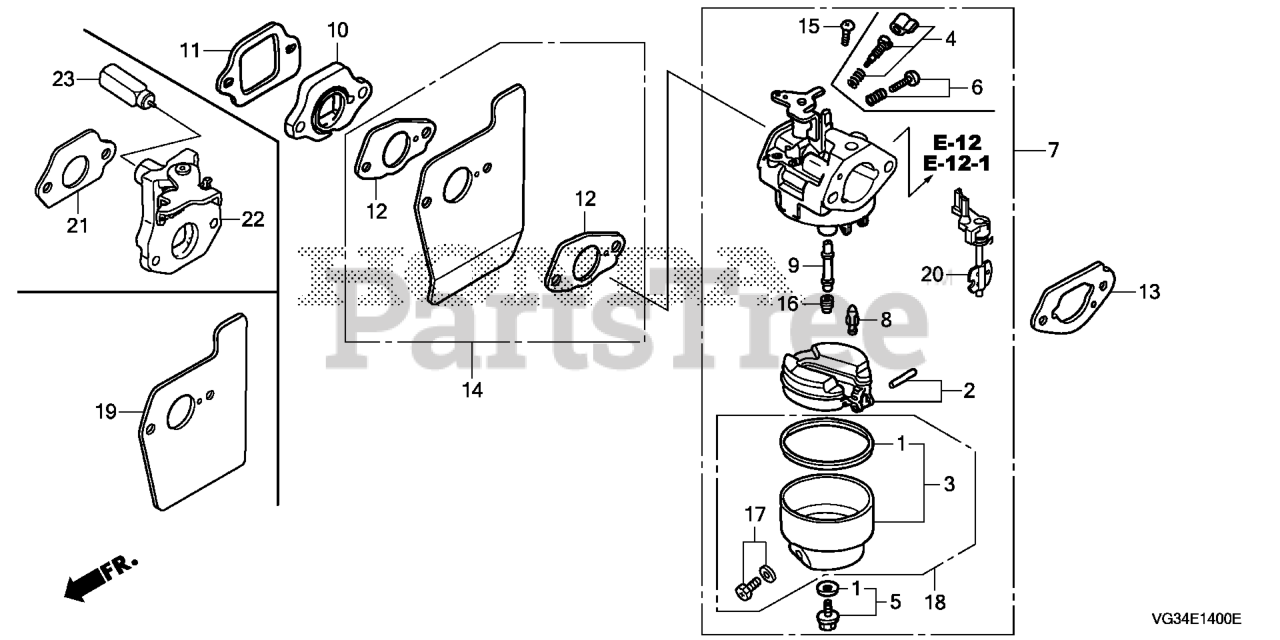

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3088416).

$13.99

$

In Stock, Qty 15

0

2

Honda 16013-ZL1-003

FLOAT SET (Honda Code 5580162).

$33.99

$

In Stock, only 2 left!

0

3

Honda 16015-Z0L-881

CHAMBER SET, FLOAT (CARBURETOR NO.)

$32.99

$

Usually ships in 3-6 days

0

5

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

5

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16100-Z8B-901

CARBURETOR ASSY. (BB76A A)

Note: Use up to Engine SN 2045739.

$19.99

$

In Stock, Qty 20+

0

7

Honda 16100-Z8B-902

CARBURETOR ASSY.

Note: Use from Engine SN 2045740.

$19.99

$

Usually ships in 3-6 days

0

8

Honda 16155-ZM0-013

VALVE, FLOAT (Honda Code 7934714). (CARBURETOR NO.)

$36.99

$

In Stock, only 3 left!

0

9

Honda 16166-Z8B-901

NOZZLE, MAIN

Note: Use up to Engine SN BB76A A.

$10.99

$

Usually ships in 3-6 days

0

9

Honda 16166-Z8B-911

NOZZLE, MAIN

Note: Use from Engine SN BB76A D.

$6.99

$

Usually ships in 3-6 days

0

15

Honda 93500-05006-0H

SCREW, PAN (5X6) (Honda Code 0639419).

$0.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0600

JET, MAIN (#60) (Honda Code 0635474). (CARBURETOR NO.)

Note: Use from Engine SN BB76A D. Use up to Engine SN BB76A A.

$12.99

$

In Stock, Qty 5

0

16

Honda 99101-124-0620

JET, MAIN (#62) (Honda Code 0635482). (CARBURETOR NO.)

Note: Use from Engine SN BB76A D.

$11.99

$

In Stock, only 2 left!

0

16

Honda 99101-124-0550

JET, MAIN (#55) Use up to Engine SN BB28A D.

Note: (Optional) Use up to Engine SN BB76A A.

$12.99

$

In Stock, only 3 left!

0

16

Honda 99101-124-0580

JET, MAIN (#58) Use up to Engine SN BB28A D.

Note: (Optional)

$11.99

$

In Stock, only 1 left!

0

19

Honda 19651-Z0L-000

GUIDE, AIR

$0.99

$

In Stock, Qty 20+

0

20

Honda 16044-Z8B-921

CHOKE SET

Note: Use from Engine SN BB76A D.

$43.99

$

Usually ships in 3-6 days

0

21

Honda 16212-Z8B-900

GASKET, INSULATOR

$0.99

$

In Stock, Qty 20+

0

22

Honda 16600-Z8B-900

CONTROL ASSY., CHOKE

$77.99

$

Usually ships in 3-6 days

0

23

Honda 16620-Z8D-842

THERMO WAX ASSY.
(Superseded to 16620-Z9L-003)

$19.99

$

In Stock, Qty 11

0
