HRS216 K6 VKAA (MZBZ) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZBZ-1000001 - MZBZ-9999999) CUTTER HOUSING Parts Diagram

21" Walk-Behind Mower, Made in USA

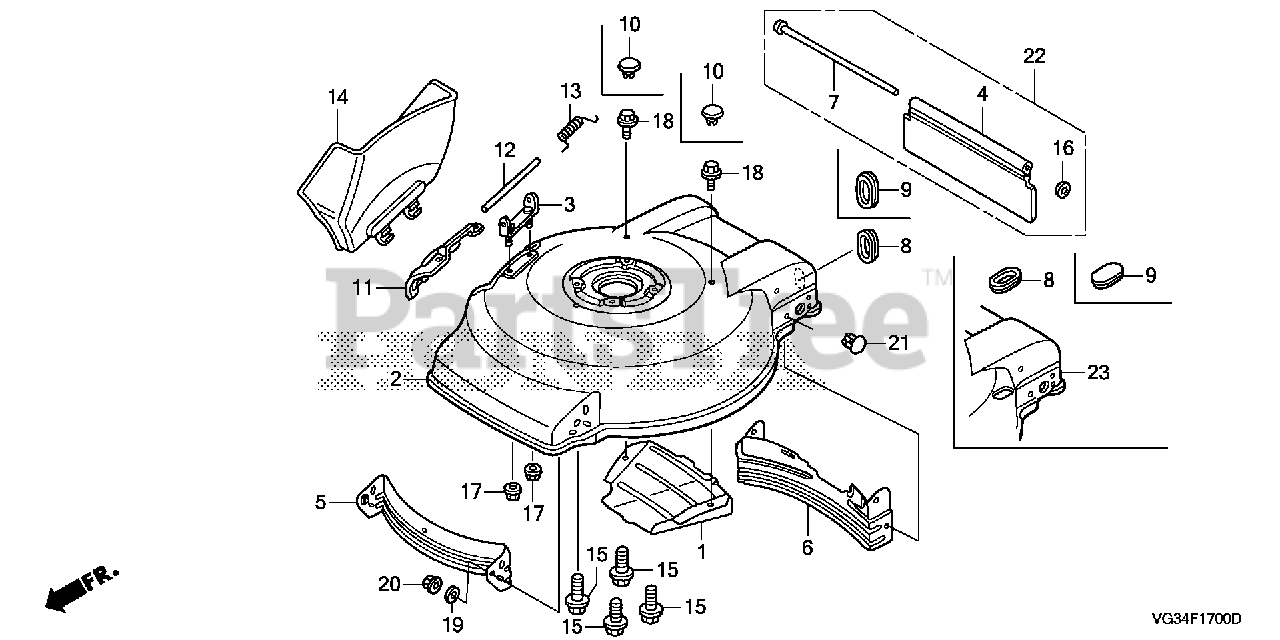

CUTTER HOUSING Parts Diagram

  • Title

1

Honda 63610-VG3-B00

COVER, BELT

$22.99

$

Usually ships in 3-6 days

0

3

Honda 76114-VG3-000

HINGE, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

5

Honda 76125-VG3-010

SCROLL, FR.

$21.99

$

Usually ships in 3-6 days

0

6

Honda 76131-VG3-N00

SCROLL, RR.

$9.49

$

Usually ships in 3-6 days

0

7

Honda 76138-VG3-020

SHAFT, RR. SHIELD (405MM)

$1.49

$

In Stock, Qty 17

0

8

Honda 76231-VG3-B00

GROMMET, CABLE (HOLE)

$1.49

$

In Stock, only 3 left!

0

11

Honda 76281-VG3-020ZA

SEE PART DETAILS - PRI; GUARD, DISCHARGE *NH105* (MAT BLACK)
(Superseded to 76281-VG3-030ZA)

$10.99

$

In Stock, only 1 left!

0

12

Honda 76282-VG3-000

SHAFT, DISCHARGE GUARD

$24.99

$

Usually ships in 3-6 days

0

13

Honda 76284-VG3-010

SPRING, GUARD RETURN

$1.49

$

Usually ships in 3-6 days

0

14

Honda 81211-VG3-020ZA

SEE PART DETAILS - PRI; CHUTE, SIDE DISCHARGE *NH105* (MAT BLACK)

$4.99

$

In Stock, only 2 left!

0

15

Honda 90104-VG3-000

BOLT, FLANGE (5/16-24X1")

$0.99

$

In Stock, Qty 8

0

16

Honda 90301-VG3-020

SEE PART DETAILS - PRI; NUT, PUSH (3.96MM) (FLAT ROUND TYPE)

$1.49

$

In Stock, only 4 left!

0

17

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

18

Honda 95701-06010-07

BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 1 left!

0

19

Honda 90506-VG3-000

WASHER, PLAIN (5/16)

$0.99

$

In Stock, Qty 6

0

20

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

22

Honda 06761-VG3-N00

KIT, RR. SHIELD

$25.99

$

Usually ships in 3-6 days

0

23

Honda 76111-VG3-N00ZA

HOUSING, CUTTER *NHB67M* (EMBOSS BRIGHT GRAY METALLIC)

$109.99

$

Usually ships in 3-6 days

0
