HRS21 SVA (VA2) - Honda 21" Walk-Behind Mower, Made in USA (SN: VA2-6000001 - VA2-9999999) AIR CLEANER Parts Diagram

21" Walk-Behind Mower, Made in USA

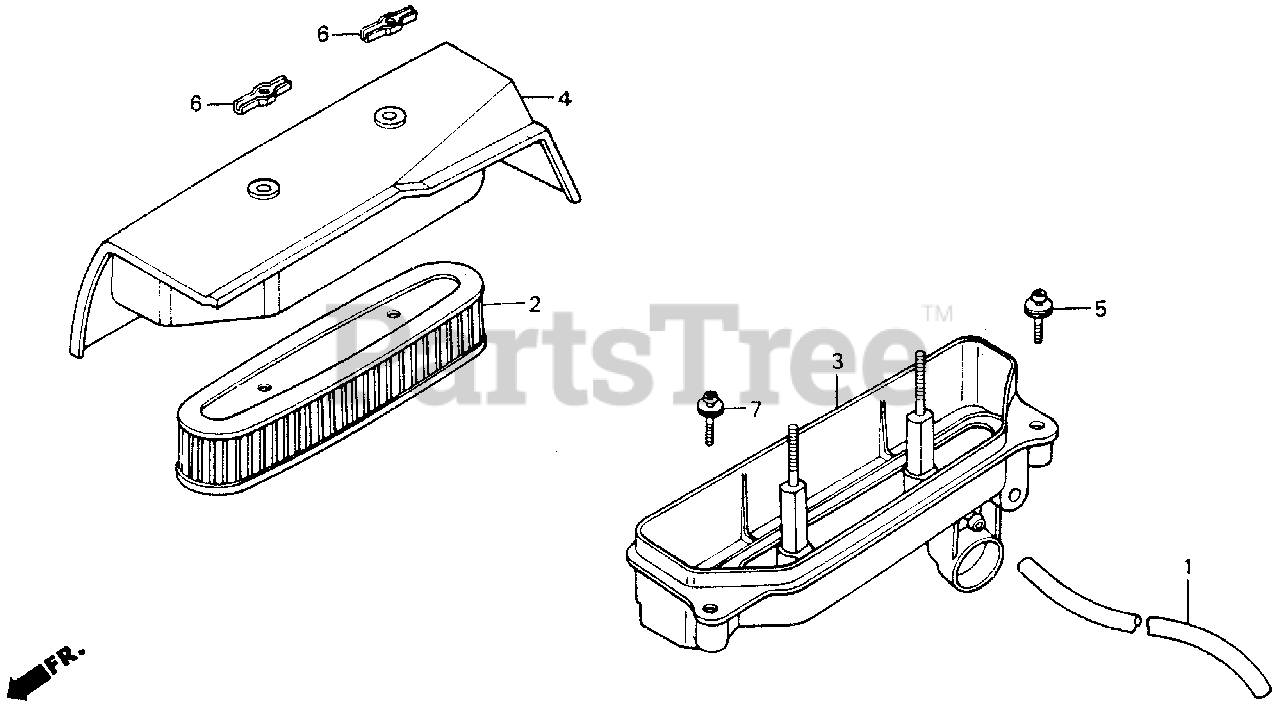

AIR CLEANER Parts Diagram

  • Title
1

Honda 15720-ZE5-000

TUBE ASSY., BREATHER (NOT AVAILABLE)

Note: Use from Engine SN 1005001.

$

$

Not available

1

Honda 15721-889-611

TUBE, BREATHER (NOT AVAILABLE)

Note: Use up to Engine SN 1005000.

$

$

Currently unavailable

2

Honda 17210-ZE5-000

ELEMENT, AIR CLEANER

$26.99

$

In Stock, only 2 left!

0

3

Honda 17220-ZE5-000

HOUSING, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 17231-ZE5-000

COVER, AIR CLEANER (NOT AVAILABLE)

$

$

Not available

5

Honda 90007-ZE5-000

SCREW-WASHER (6X32)

$2.49

$

In Stock, only 3 left!

0

6

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

$4.49

$

In Stock, only 1 left!

0

7

Honda 93894-06035-08

SCREW-WASHER (6X35)

$1.49

$

In Stock, Qty 6

0
