HRS21 SA (VA2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: VA2-1000001 - VA2-6000000) TRANSMISSION Parts Diagram

21" Walk-Behind Mower, Made in Japan

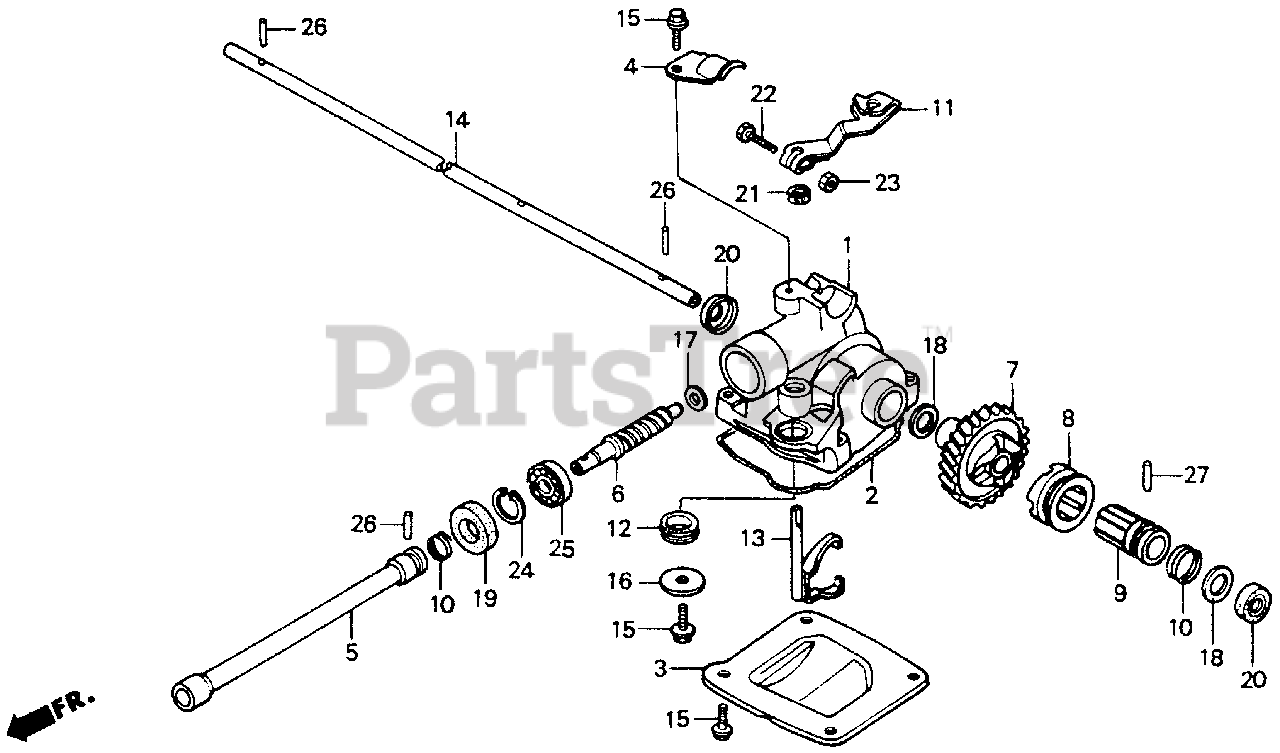

TRANSMISSION Parts Diagram

  • Title

1

Honda 21511-VA2-700

CASE, GEAR (UPPER) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 21581-VA2-700

O-RING, CASE

$4.99

$

Usually ships in 3-6 days

0

3

Honda 21611-VA2-700

COVER, GEAR CASE

$10.99

$

Usually ships in 3-6 days

0

4

Honda 22535-VA2-700

HOLDER, WIRE

$

$

Not available

5

Honda 23165-VA2-700

SHAFT, EXTENSION (NOT AVAILABLE)

$

$

Not available

6

Honda 23411-VA2-700

GEAR, DRIVE (NOT AVAILABLE)

$

$

Not available

7

Honda 23421-VA2-700

GEAR, DRIVEN

$

$

Not available

8

Honda 23431-VA9-H40

CLUTCH, DRIVEN

$30.99

$

Usually ships in 3-6 days

0

8

Honda 23431-960-770

CLUTCH, DRIVEN

$30.99

$

Usually ships in 3-6 days

0

9

Honda 23432-VA2-700

SHAFT, CLUTCH (NOT AVAILABLE)

$

$

Not available

10

Honda 23435-VA2-701

CLIP, CLUTCH SHAFT

$4.99

$

Usually ships in 3-6 days

0

11

Honda 23436-VA2-700

ARM, CLUTCH

$

$

Not available

12

Honda 23438-960-770

MOUNT, RUBBER

$4.99

$

Usually ships in 3-6 days

0

13

Honda 23440-VA2-700

SHAFT, SHIFT

$

$

Not available

14

Honda 44311-VA2-700

SHAFT, DRIVE (NOT AVAILABLE)

$

$

Not available

15

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 19

0

16

Honda 90404-PD1-000

WASHER, PLAIN (22X6X1.6)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90452-283-000

WASHER, THRUST (10.5X16.5X1)

$

$

Not available

18

Honda 90461-GJ5-000

WASHER, THRUST (12MM)

$3.49

$

Usually ships in 3-6 days

0

19

Honda 91201-GS3-000

OIL SEAL (12X28X6)

$11.99

$

Usually ships in 3-6 days

0

20

Honda 91201-965-000

SEE PART DETAILS - PRI; OIL SEAL (12X22X5)

$5.99

$

Usually ships in 3-6 days

0

21

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

21

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

22

Honda 92101-06020-0H

BOLT, HEX. (6X20)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 94002-06000-0S

NUT, HEX. (6MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94520-28000

CIRCLIP, INNER (28MM)

$1.99

$

In Stock, Qty 5

0

25

Honda 96100-60010-00

BEARING, RADIAL BALL (6001)

$23.99

$

Usually ships in 3-6 days

0

26

Honda 96220-40178

ROLLER (4X17.8)

$1.49

$

In Stock, only 3 left!

0

27

Honda 96220-50178

ROLLER (5X17.8)

$1.49

$

In Stock, only 1 left!

0
