HRS21 SA (VA2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: VA2-1000001 - VA2-6000000) CYLINDER Parts Diagram

21" Walk-Behind Mower, Made in Japan

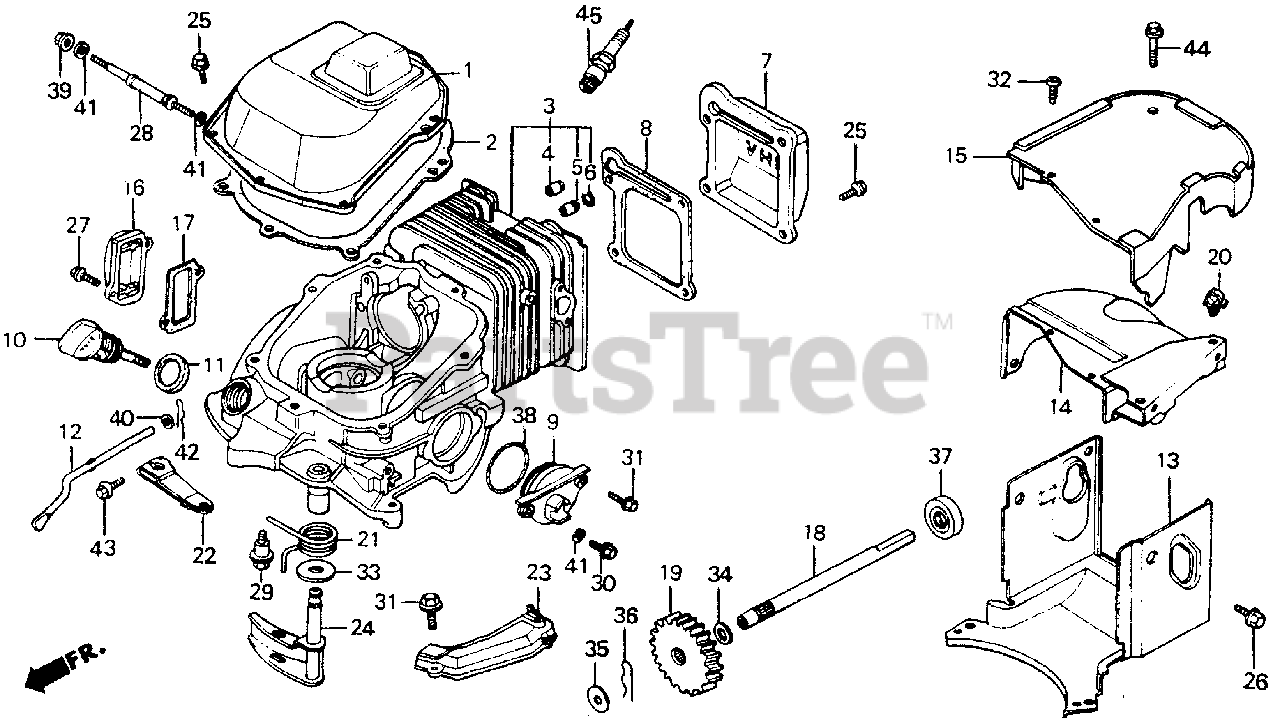

CYLINDER Parts Diagram

  • Title

1

Honda 11310-ZE5-000

COVER, CRANKCASE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 11381-ZE5-306

SEE PART DETAILS - SUP; GASKET, CRANKCASE COVER
(Superseded to 11381-ZE5-800)

$

$

Not available

2

Honda 11381-ZE5-800

SEE PART DETAILS - PRI; GASKET, CRANKCASE COVER

$

$

Not available

3

Honda 121A0-ZE5-600

CYLINDER

Note: Use up to Engine SN 1012207.

$

$

Not available

3

Honda 121A0-ZE5-601

CYLINDER

Note: Use from Engine SN 1012208.

$

$

Not available

4

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

Note: (Optional).

$

$

Not available

5

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional). Use up to Engine SN 1012207.

$10.99

$

In Stock, only 3 left!

0

5

Honda 12205-ZE5-305

GUIDE, EX. VALVE (OVER SIZE)

Note: (Optional). Use from Engine SN 1012208.

$15.99

$

Usually ships in 3-6 days

0

6

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

Note: Use from Engine SN 1012208.

$1.99

$

In Stock, Qty 18

0

7

Honda 12311-ZE5-000

COVER, HEAD (NOT AVAILABLE)

$17.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE5-000

GASKET, CYLINDER HEAD COVER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 14121-ZE5-000

COVER, CAMSHAFT

$

$

Not available

10

Honda 15620-ZE6-010

CAP, OIL FILLER (NOT AVAILABLE)

$

$

Not available

11

Honda 15625-ZE6-000

GASKET, OIL FILLER CAP

$4.49

$

Usually ships in 3-6 days

0

12

Honda 16541-ZE5-000

SHAFT, GOVERNOR ARM

$

$

Not available

13

Honda 19631-ZE5-600

SHROUD

$

$

Not available

14

Honda 19635-ZE5-000

COVER, AIR IN.

$

$

Not available

15

Honda 19636-ZE5-000

GRID, AIR IN. SCREEN

$

$

Not available

16

Honda 21610-ZE5-600

COVER, REDUCTION

$

$

Not available

17

Honda 21615-ZE5-600

GASKET, REDUCTION COVER (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 23151-ZE5-600

SHAFT, P.T.O. (NOT AVAILABLE)

$

$

Not available

19

Honda 23155-ZE5-600

GEAR, P.T.O. DRIVE

$

$

Not available

20

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

21

Honda 75112-ZE5-000

SPRING, BRAKE

$12.99

$

Usually ships in 3-6 days

0

22

Honda 75113-ZE5-000

LEVER, BRAKE

$

$

Not available

23

Honda 75116-ZE5-000

COVER, BRAKE

$

$

Not available

24

Honda 75120-ZE5-003

BRAKE (NOT AVAILABLE)

$

$

Not available

25

Honda 90013-ZE5-000

BOLT, FLANGE (6X12)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

27

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

28

Honda 90016-ZE5-000

BOLT, SPECIAL (6MM)

$10.99

$

Usually ships in 3-6 days

0

29

Honda 90021-VA4-000

BOLT, SPECIAL (6MM)

$5.99

$

In Stock, Qty 13

0

30

Honda 90022-888-010

BOLT, FLANGE (6X20) (CT200)

$2.99

$

In Stock, only 2 left!

0

31

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

32

Honda 90183-671-003

SCREW, TAPPING (4X8)
(Superseded to 90002-ZG0-003)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 90411-ZE5-000

WASHER, BRAKE ARM (NOT AVAILABLE)

$

$

Not available

34

Honda 90414-GE0-000

WASHER (10X24)

$3.99

$

Usually ships in 3-6 days

0

35

Honda 90452-166-600

WASHER, THRUST (12MM)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 90701-ZE6-000

PIN, LOCK (2.0)

$3.49

$

In Stock, only 2 left!

0

37

Honda 91201-965-000

SEE PART DETAILS - PRI; OIL SEAL (12X22X5)

$5.99

$

Usually ships in 3-6 days

0

38

Honda 91303-ZE5-003

O-RING (47.7X2.5) (ARAI)

$4.99

$

Usually ships in 3-6 days

0

39

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

40

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

41

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

42

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

43

Honda 95701-06022-08

BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0

44

Honda 95701-06018-08

BOLT, FLANGE (6X18)

$2.49

$

Usually ships in 3-6 days

0

45

Honda 98076-54716

SPARK PLUG (BR-4HS) (NGK)

$3.49

$

In Stock, Qty 10

0
