HRS21 SA (VA2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: VA2-1000001 - VA2-6000000) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in Japan

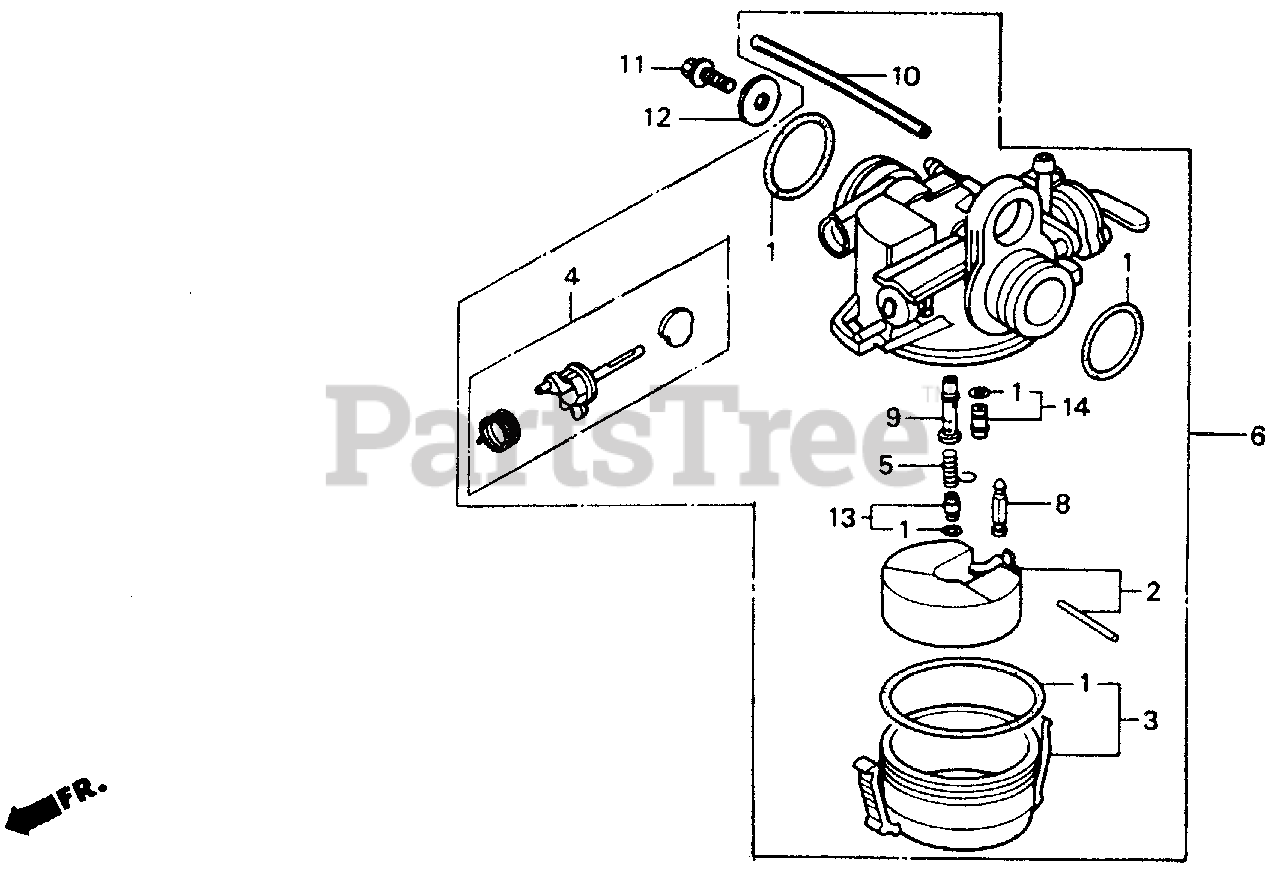

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE5-005

GASKET SET

$23.99

$

In Stock, only 1 left!

0

2

Honda 16013-ZE5-005

FLOAT SET (NOT AVAILABLE)

$

$

Not available

3

Honda 16015-ZE5-005

CHAMBER SET, FLOAT

$

$

Not available

4

Honda 16044-ZE5-005

CHOKE SET

$31.99

$

Usually ships in 3-6 days

0

5

Honda 16051-ZE5-005

SPRING, COIL (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16100-ZE5-005

CARBURETOR ASSY.

$96.99

$

Usually ships in 3-6 days

0

8

Honda 16155-ZE5-005

VALVE, FLOAT

$

$

Not available

9

Honda 16166-ZE5-005

NOZZLE, MAIN (NOT AVAILABLE)

$27.99

$

Usually ships in 3-6 days

0

10

Honda 16199-ZE5-015

TUBE, VINYL (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

12

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 9

0

13

Honda 99201-ZE5-0420

JET SET, MAIN (#42)

Note: (Optional).

$

$

Not available

13

Honda 99201-ZE5-0450

JET SET, MAIN (#45)

Note: (Optional).

$

$

Not available

13

Honda 99201-ZE5-0480

JET SET, MAIN (#48)

$22.99

$

Usually ships in 3-6 days

0

14

Honda 99203-ZE5-0400

JET SET, SLOW (#40)

$16.99

$

Usually ships in 3-6 days

0
