HRS21 PVA (VA2) - Honda 21" Walk-Behind Mower, Made in Japan (SN: VA2-1000001 - VA2-6000000) FLYWHEEL Parts Diagram

21" Walk-Behind Mower, Made in Japan

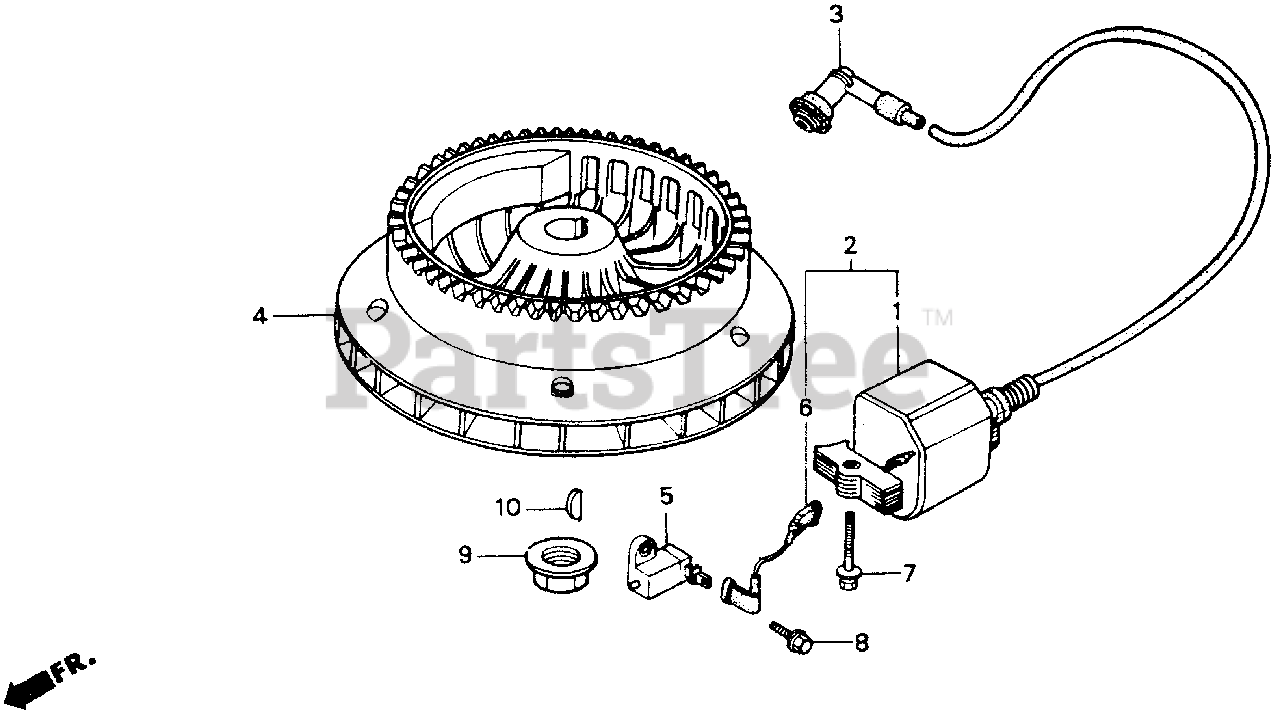

FLYWHEEL Parts Diagram

  • Title

1

Honda 30500-ZE5-013

COIL ASSY., IGNITION

Note: Use up to Engine SN 1199325.

$

$

Not available

2

Honda 30500-ZE5-013

COIL ASSY., IGNITION

Note: Use from Engine SN 1199326.

$

$

Not available

3

Honda 30700-ZE5-013

CAP ASSY., NOISE SUPPRESSOR

$

$

Not available

4

Honda 31000-ZE5-003

FLYWHEEL ASSY.

$

$

Not available

5

Honda 35340-ZE5-013

SWITCH ASSY., ENGINE

$

$

Not available

6

Honda 36101-ZE5-000

WIRE, SWITCH (NOT AVAILABLE)

Note: Use up to Engine SN 1199325.

$

$

Not available

7

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

Note: Use from Engine SN 1199326.

$3.99

$

In Stock, Qty 8

0

7

Honda 90017-883-000

BOLT, FLANGE (6X32) (CT200)

Note: Use up to Engine SN 1199325.

$3.49

$

In Stock, only 2 left!

0

7

Honda 95701-06028-00

BOLT, FLANGE (6X28)

Note: (Optional). Use from Engine SN 1199326.

$2.49

$

In Stock, Qty 7

0

8

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90305-ME5-003

NUT, FLANGE (16MM)

$6.49

$

In Stock, only 1 left!

0

10

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1042661.

$5.49

$

In Stock, only 4 left!

0

10

Honda 94401-25180

KEY, WOODRUFF (25X18)

Note: Use up to Engine SN 1042660.

$1.99

$

In Stock, Qty 12

0
