HRR216 K9 VLAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-8670001 - MZCG-9999999) FLYWHEEL & IGNITION COIL Parts Diagram

21" Walk-Behind Mower, Made in USA

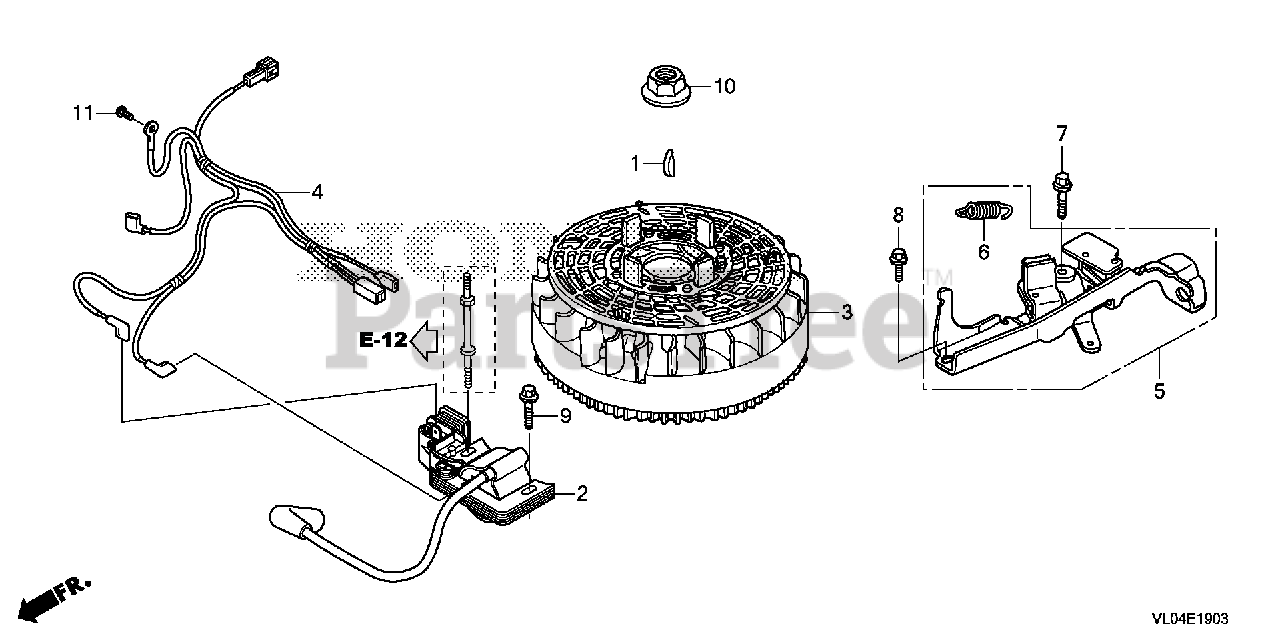

FLYWHEEL & IGNITION COIL Parts Diagram

  • Title

1

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1886101.

$6.99

$

In Stock, Qty 7

0

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use up to Engine SN 1886100.

$5.49

$

In Stock, Qty 20+

0

2

Honda 30500-Z0L-M71

COIL ASSY., IGNITION

$

$

Not available

3

Honda 31105-Z0L-821

FLYWHEEL ASSY. (PHELON) (USE FOR IGN. COIL OF PHELON) (NA USE ALT:31105-Z0Y-922)

Note: Use from Engine SN 2273648.

$

$

Currently unavailable

3

Honda 31105-Z0Y-922

SEE PART DETAILS - PRI; FLYWHEEL ASSY.

Note: Use up to Engine SN 2273647.

$77.99

$

Usually ships in 3-6 days

0

4

Honda 32223-Z0L-M70

WIRE, COMBINATION

$61.99

$

Usually ships in 3-6 days

0

5

Honda 75110-Z0L-825

BRAKE SUB-ASSY.

$16.99

$

Usually ships in 3-6 days

0

6

Honda 75113-ZM0-000

SPRING, BRAKE LEVER

$3.49

$

Usually ships in 3-6 days

0

7

Honda 90002-Z0L-820

BOLT, FLANGE (6X23) (CT200)

$0.99

$

Usually ships in 3-6 days

0

8

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, Qty 12

0

9

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90201-Z0T-800

NUT, SPECIAL (14MM)

$3.49

$

In Stock, Qty 12

0

11

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 7

0
