HRR216 K9 VLAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-8670001 - MZCG-9999999) BATTERY & MAIN HARNESS Parts Diagram

21" Walk-Behind Mower, Made in USA

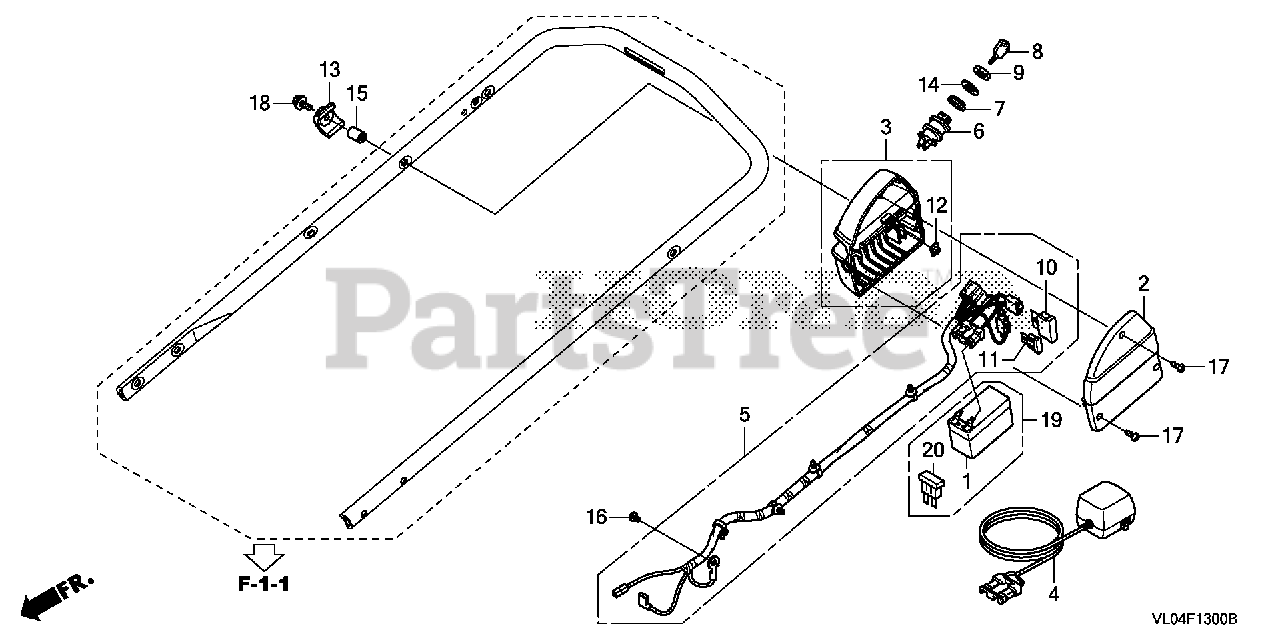

BATTERY & MAIN HARNESS Parts Diagram

  • Title

1

Honda 06315-VL0-W10

SEE PART DETAILS - PRI; BATTERY KIT (MSDS)
(Superseded to 06315-VL0-W11)

Note: Use up to Frame SN 9349370.

$60.99

$

In Stock, only 1 left!

0

1

Honda 31500-VH7-V31

BATTERY ASSY. (MSDS)
(Superseded to 31500-VH7-801)

Note: Use from Frame SN 9349371.

$48.99

$

In Stock, only 4 left!

0

1

31500-VL0-PA1

BATTERY ASSY. (MSDS)

Note: (Optional).

$

$

Not available

1

Honda 31500-VL0-W01

SEE PART DETAILS - SUP; BATTERY ASSY. (MSDS)
(Superseded to 06315-VL0-W11)

Note: Use up to Frame SN 9349370.

$60.99

$

In Stock, only 1 left!

0

1

Honda 31500-VL0-W11

SEE PART DETAILS - SUP; BATTERY KIT (MSDS)
(Superseded to 06315-VL0-W10)

Note: Use up to Frame SN 9349370.

$

$

Not available

2

Honda 31513-VH7-V00

COVER, BATTERY

Note: Use from Frame SN 9349371.

$43.99

$

In Stock, only 1 left!

0

3

Honda 31550-VH7-V00

BOX, BATTERY

Note: Use from Frame SN 9349371.

$33.99

$

Usually ships in 3-6 days

0

4

Honda 31570-VL0-W01

CHARGER ASSY., BATTERY (120V-AC/60HZ)

Note: (Optional). Use up to Frame SN 9349370.

$

$

Not available

5

Honda 32100-VL0-W00

HARNESS ASSY., MAIN

Note: Use up to Frame SN 9349370.

$31.99

$

In Stock, only 1 left!

0

5

Honda 32100-VL0-W10

HARNESS ASSY., MAIN

Note: Use from Frame SN 9349371.

$103.99

$

Usually ships in 3-6 days

0

6

Honda 35100-VL0-W01

SWITCH ASSY., MOMENT

$29.99

$

Usually ships in 3-6 days

0

7

Honda 35102-VL0-W00

BASE, MOMENT SWITCH

$12.99

$

Usually ships in 3-6 days

0

8

Honda 35111-VL0-W01

KEY

$4.99

$

Usually ships in 3-6 days

0

9

Honda 35114-VL0-W00

NUT, SWITCH

$0.99

$

In Stock, Qty 7

0

10

Honda 38201-VH7-B00

FUSE A

Note: Use up to Frame SN 9349370.

$0.99

$

In Stock, Qty 7

0

10

Honda 38201-VH7-S30

FUSE (30A)

Note: Use from Frame SN 9349371.

$3.49

$

Usually ships in 3-6 days

0

11

Honda 38206-V15-003

FUSE, BLADE (3A)

$2.49

$

In Stock, only 2 left!

0

12

Honda 61304-958-003

NUT, SPECIAL (6X7)

$4.99

$

In Stock, Qty 20+

0

13

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, Qty 6

0

14

Honda 90501-VL0-W00

WASHER, SWITCH

$0.99

$

In Stock, Qty 8

0

15

Honda 91559-VH7-B00

COLLAR, BATTERY MOUNTING

$2.49

$

In Stock, only 3 left!

0

16

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

17

Honda 93911-14480

SCREW, TAPPING (4X16)

$1.49

$

In Stock, Qty 10

0

18

Honda 95701-06035-07

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 1 left!

0

19

Honda 06315-VL0-W10

SEE PART DETAILS - PRI; BATTERY KIT (MSDS)
(Superseded to 06315-VL0-W11)

Note: (Optional).

$60.99

$

In Stock, only 1 left!

0

20

Honda 98200-33000

FUSE, BLADE (30A)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0
