HRR216 K9 VLAA/A (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-1000001 - MZCG-1140000) TRANSMISSION (2) Parts Diagram

21" Walk-Behind Mower, Made in USA

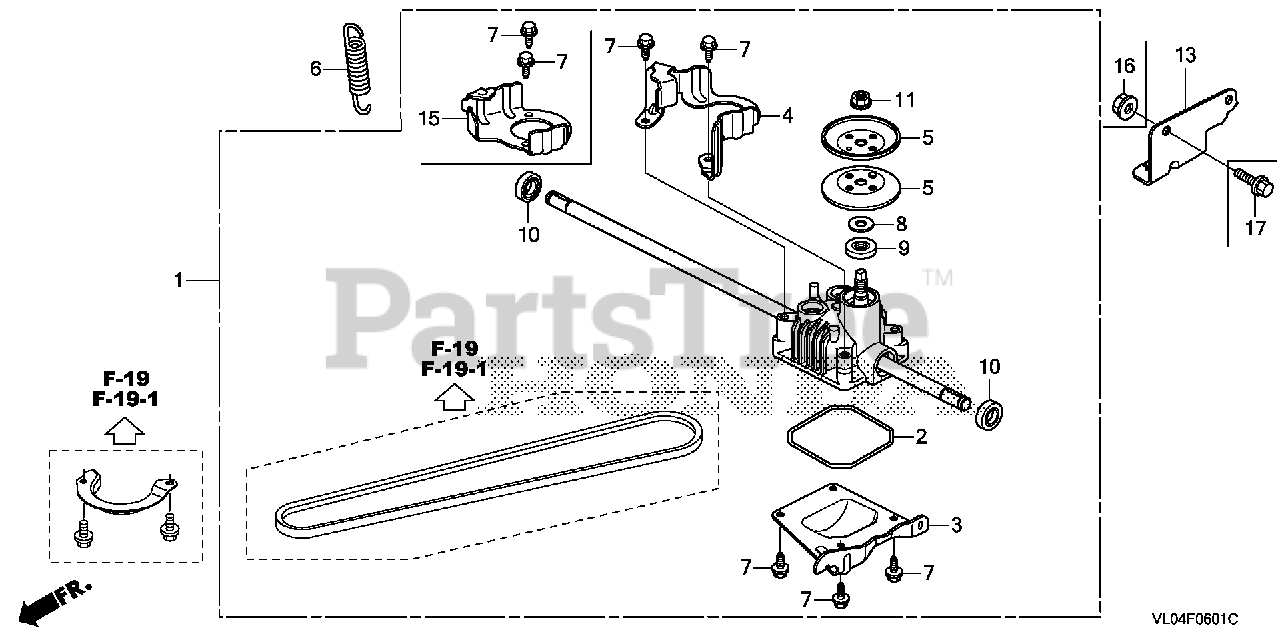

TRANSMISSION (2) Parts Diagram

  • Title

1

Honda 20001-VL0-S00

SEE PART DETAILS - PRI; TRANSMISSION ASSY.

$95.99

$

In Stock, Qty 7

0

2

Honda 21581-VL0-M00

O-RING, CASE

$8.99

$

Usually ships in 3-6 days

0

3

Honda 21611-VL0-P00

COVER, REDUCTION

$10.99

$

Usually ships in 3-6 days

0

5

Honda 23211-VL0-P00

FACE, DRIVEN

$29.99

$

In Stock, only 1 left!

0

6

Honda 24468-VL0-P00

SPRING, WHEEL TENSION

$1.49

$

In Stock, Qty 6

0

7

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

8

Honda 90504-VH7-A00

WASHER (10X24)

$0.99

$

In Stock, Qty 10

0

9

Honda 91251-VL0-B00

OIL SEAL (12.7X28.6X6.4)

$1.99

$

In Stock, Qty 5

0

10

Honda 91251-VL0-M00

OIL SEAL (12.7X22.2X6.4)

$16.99

$

In Stock, only 4 left!

0

11

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

13

Honda 53104-VL0-P01

SEE PART DETAILS - PRI; BRACKET, CABLE MOUNT

$3.49

$

Usually ships in 3-6 days

0

15

Honda 22451-VL0-S00

GUIDE, BELT

$9.49

$

In Stock, only 1 left!

0

16

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

17

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0
