HRR216 K7 VXAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-8200001 - MZCG-8399999) CARBURETOR Parts Diagram

21" Walk-Behind Mower, Made in USA

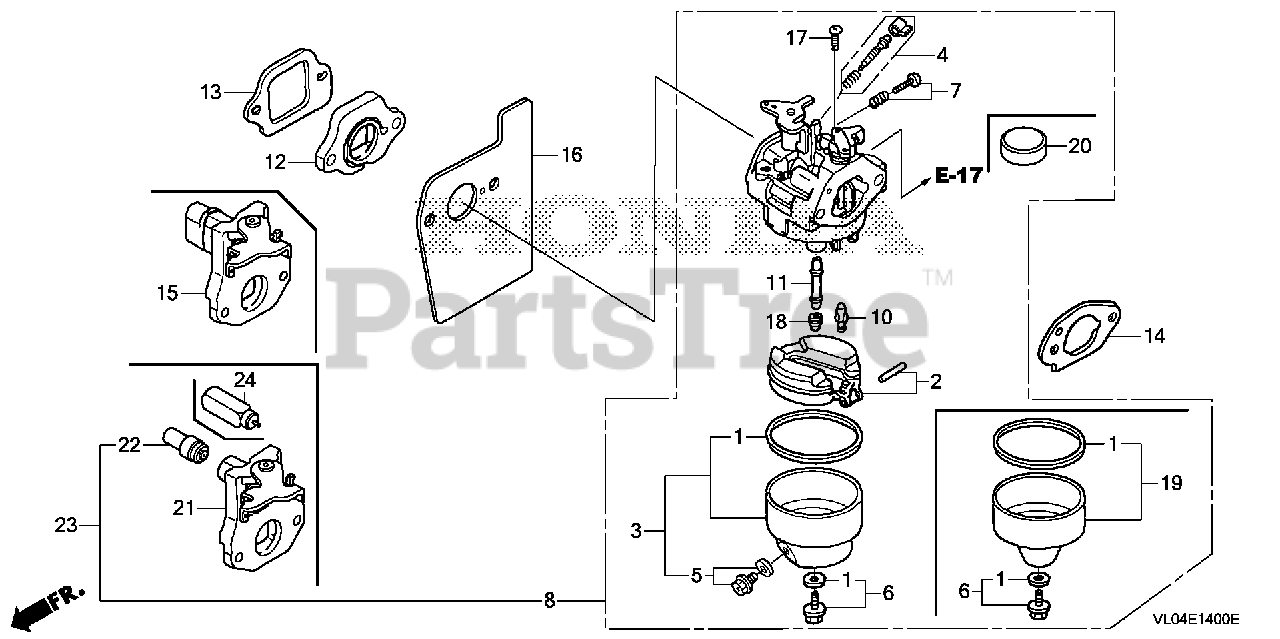

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

$12.99

$

In Stock, only 3 left!

0

2

Honda 16013-ZL1-003

FLOAT SET

$31.99

$

In Stock, only 2 left!

0

4

Honda 16016-ZG0-W00

SCREW SET (CARBURETOR NO.)

$12.99

$

Usually ships in 3-6 days

0

6

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

7

Honda 16029-ZG0-901

SCREW SET (THROTTLE STOP) (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 16100-Z0L-023

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BB62W C)

$24.99

$

In Stock, Qty 12

0

10

Honda 16155-ZM0-013

VALVE, FLOAT

$34.99

$

In Stock, only 2 left!

0

11

Honda 16166-ZM0-003

NOZZLE, MAIN

$21.99

$

In Stock, only 1 left!

0

12

Honda 16211-ZL8-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 1864263.

$4.49

$

In Stock, Qty 20+

0

12

Honda 16211-Z8B-000

INSULATOR, CARBURETOR

Note: Use from Engine SN 1864264.

$3.99

$

In Stock, only 1 left!

0

13

Honda 16212-ZL8-000

GASKET, INSULATOR

$7.99

$

In Stock, Qty 20+

0

14

Honda 16228-ZL8-000

GASKET, CARBURETOR

$2.49

$

In Stock, Qty 19

0

16

Honda 19651-Z0L-000

GUIDE, AIR

$0.99

$

In Stock, Qty 20+

0

17

Honda 93500-05006-0H

SCREW, PAN (5X6)

$0.99

$

In Stock, only 4 left!

0

18

Honda 99101-124-0620

JET, MAIN (#62) (CARBURETOR NO.)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

18

Honda 99101-124-0600

JET, MAIN (#60) (CARBURETOR NO.)

Note: (Optional).

$12.99

$

In Stock, Qty 5

0

18

Honda 99101-124-0650

JET, MAIN (#65) (CARBURETOR NO.)

$12.99

$

In Stock, only 2 left!

0

19

Honda 16015-Z0L-881

CHAMBER SET, FLOAT (CARBURETOR NO.)

$31.99

$

Usually ships in 3-6 days

0
