HRR216 K5 VXAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-7800001 - MZCG-7999999) FLYWHEEL + IGNITION COIL (CAST IRON) Parts Diagram

21" Walk-Behind Mower, Made in USA

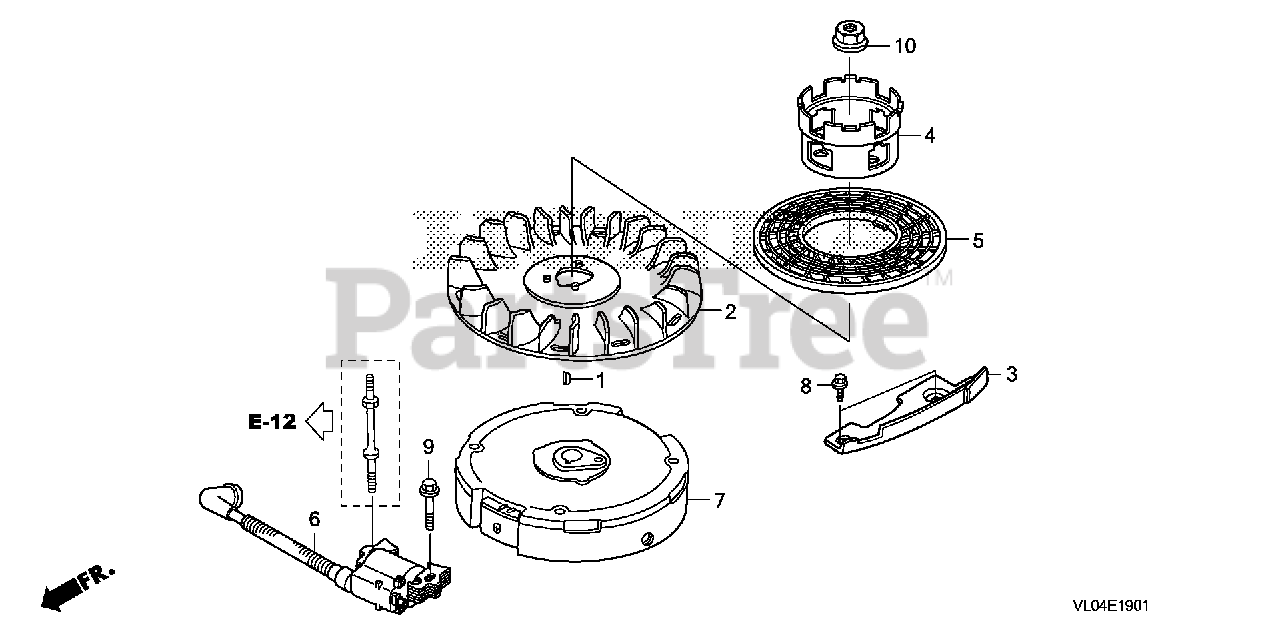

FLYWHEEL + IGNITION COIL (CAST IRON) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use up to Engine SN 1894955.

$5.49

$

In Stock, only 4 left!

0

1

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1894956.

$6.49

$

In Stock, Qty 10

0

2

Honda 19511-Z0J-900

FAN, COOLING

$17.99

$

In Stock, only 2 left!

0

3

Honda 19612-Z0L-000

PLATE, SIDE

$17.99

$

In Stock, only 1 left!

0

4

Honda 28451-Z0J-900

PULLEY, STARTER

$5.99

$

In Stock, only 1 left!

0

5

Honda 28452-Z0J-900

GRID, SCREEN

$6.49

$

In Stock, only 1 left!

0

6

Honda 30500-Z8B-912

SEE PART DETAILS - PRI; COIL ASSY., IGNITION (PHELON)

$17.99

$

In Stock, only 2 left!

0

7

Honda 31110-Z0J-004

FLYWHEEL
(Superseded to 31110-Z0J-014)

Note: Use up to Engine SN 2165932.

$66.99

$

Usually ships in 3-6 days

0

7

Honda 31110-Z0J-014

FLYWHEEL

$66.99

$

Usually ships in 3-6 days

0

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

9

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

$2.49

$

Usually ships in 3-6 days

0

10

Honda 90201-Z0T-800

NUT, SPECIAL (14MM)

$2.99

$

In Stock, only 1 left!

0
