HRR216 K4 VXA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-7700001 - MZCG-7799999) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in USA

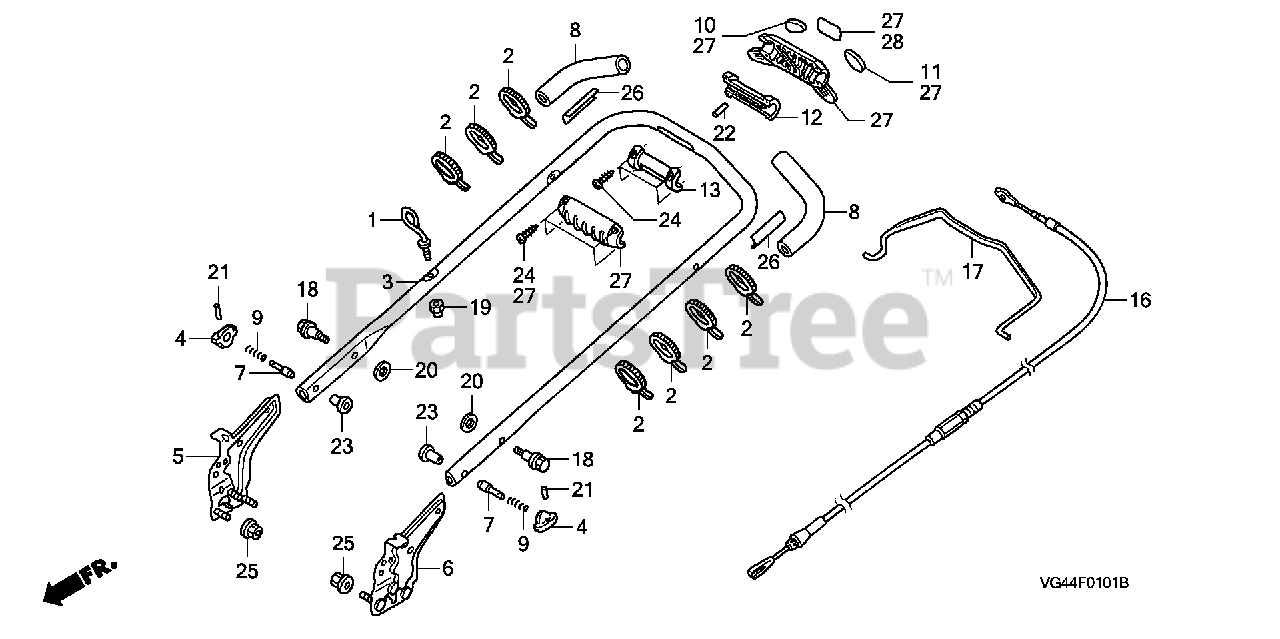

HANDLEBAR Parts Diagram

  • Title
1

Honda 28475-VE1-T00

GUIDE, ROPE

$4.99

$

Usually ships in 3-6 days

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

3

Honda 53111-VL0-B00ZA

PIPE, HANDLE *NH105* (MAT BLACK)
(Superseded to 53111-VL0-C00ZA)

$85.99

$

Usually ships in 3-6 days

0

4

Honda 53125-VL0-B00ZA

GRIP, HANDLE JOINT *NH164* (GRIP GRAY)

$5.49

$

In Stock, Qty 15

0

5

Honda 53130-VL0-B00

STAY, R. HANDLE

$21.99

$

Usually ships in 3-6 days

0

6

Honda 53135-VL0-B00

STAY, L. HANDLE

$14.99

$

Usually ships in 3-6 days

0

7

Honda 53158-VL0-B00

SEE PART DETAILS - SUP; PIN (8MM)
(Superseded to 53158-VL0-B01)

$1.49

$

In Stock, Qty 20+

0

7

Honda 53158-VL0-B01

SEE PART DETAILS - PRI; PIN (8MM)

$1.49

$

In Stock, Qty 20+

0

8

Honda 53165-VL0-B00

GRIP, HANDLE

$1.99

$

In Stock, Qty 5

0

9

Honda 53367-VL0-B00

SPRING, HANDLE ADJUSTING

$8.49

$

In Stock, Qty 20+

0

10

Honda 54421-VL0-B00

GRIP, R. PAD

Note: Use up to Frame SN 7715175.

$

$

Not available

10

Honda 54421-VL0-B01

GRIP, R. PAD

Note: Use from Frame SN 7715176.

$2.49

$

In Stock, Qty 9

0

11

Honda 54426-VL0-B01

GRIP, L. PAD

$0.99

$

In Stock, only 2 left!

0

12

Honda 54434-VL0-B00

BRACKET, GRIP (UPPER)

$3.49

$

In Stock, Qty 20+

0

13

Honda 54437-VL0-B00

BRACKET, GRIP (LOWER)

$2.99

$

In Stock, Qty 13

0

16

Honda 54510-VL0-B00

CABLE, CLUTCH

$26.99

$

In Stock, only 1 left!

0

17

Honda 75161-VL0-B01

LEVER, ROTO-STOP

$12.99

$

Usually ships in 3-6 days

0

18

Honda 90102-VL0-B00

BOLT, SPECIAL (8X32)
(Superseded to 90102-VL0-P00)

$1.99

$

In Stock, Qty 15

0

19

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 90503-VL0-B00

WASHER (25MM)

$0.99

$

In Stock, Qty 20+

0

21

Honda 90751-VL0-B00

PIN, COILED (2X12)

$0.99

$

In Stock, Qty 20+

0

22

Honda 91151-VL0-B00

ROLLER (5X37)
(Superseded to 91151-VH7-H50)

$0.99

$

In Stock, Qty 11

0

23

Honda 91551-VL0-B00

COLLAR, HANDLE HEIGHT ADJUSTING

$1.99

$

In Stock, Qty 20+

0

24

Honda 93911-14280

SCREW, TAPPING (4X12)

$0.99

$

In Stock, Qty 20+

0

25

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

26

Honda 54322-VL0-B00

HOLD, GRIP

$0.99

$

In Stock, Qty 7

0

27

Honda 04401-VL0-B00

GRIP KIT, CLUTCH

$32.99

$

Usually ships in 3-6 days

0

28

Honda 87512-VL0-B00

MARK, CLUTCH INDICATION (ENGLISH)

$2.49

$

Usually ships in 3-6 days

0
