HRR216 K4 TDA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-7700001 - MZCG-7799999) FAN COVER + FUEL TANK Parts Diagram

21" Walk-Behind Mower, Made in USA

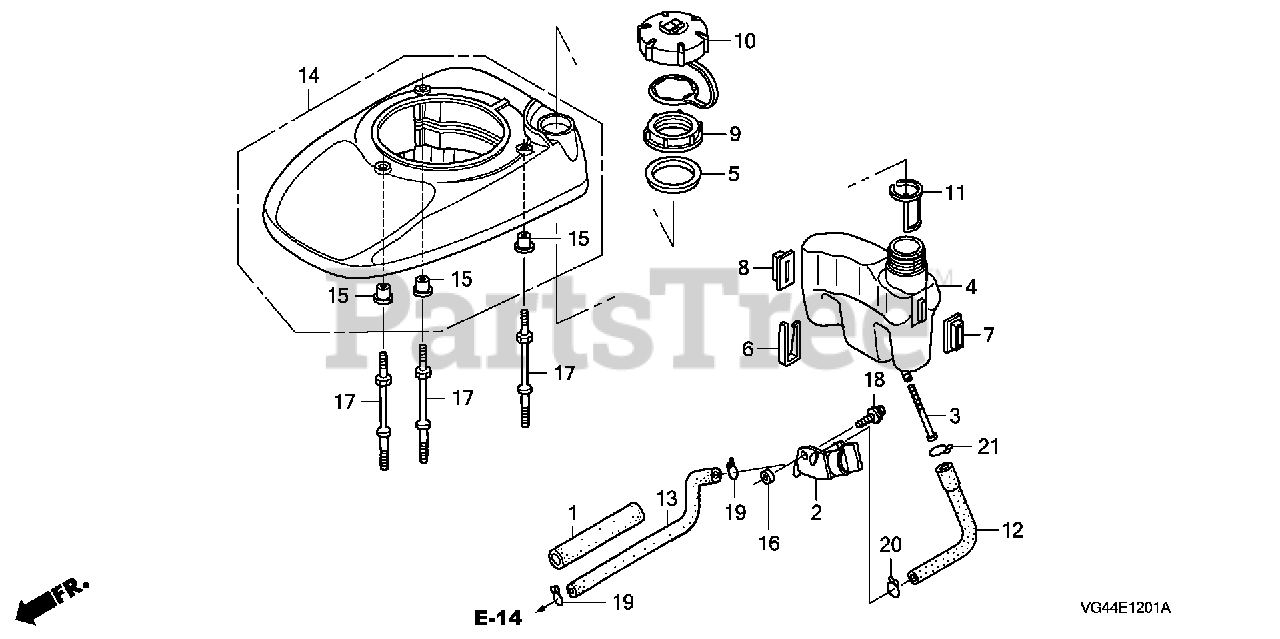

FAN COVER + FUEL TANK Parts Diagram

  • Title
1

Honda 16854-ZH8-000

RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, only 4 left!

0

2

Honda 16950-ZM0-003

PETCOCK ASSY.

$9.49

$

In Stock, Qty 13

0

3

Honda 16952-ZA8-800

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

4

Honda 17511-Z0L-000

TANK, FUEL

Note: Use up to Engine SN 6183839.

$74.99

$

Usually ships in 3-6 days

0

4

Honda 17511-Z0L-010

TANK, FUEL

Note: Use from Engine SN 6183840.

$74.99

$

Usually ships in 3-6 days

0

5

Honda 17514-Z0L-000

SEAL, FUEL FILLER NECK

$0.99

$

In Stock, Qty 10

0

6

Honda 17516-Z0L-000

CLIP, TANK MOUNTING

$0.99

$

In Stock, only 4 left!

0

7

Honda 17532-Z0L-000

RUBBER A, TANK MOUNTING

$0.99

$

In Stock, Qty 9

0

8

Honda 17533-Z0L-000

RUBBER B, TANK MOUNTING

$0.99

$

In Stock, Qty 6

0

9

Honda 17534-Z0L-000

NUT, TANK MOUNTING

$0.99

$

In Stock, Qty 10

0

10

Honda 17620-Z0J-800

CAP ASSY., FUEL TANK
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, Qty 7

0

11

Honda 17636-Z0L-000

GAUGE, FUEL LEVEL

$0.99

$

In Stock, Qty 9

0

12

Honda 17701-Z0L-810

TUBE, FUEL TANK

$3.99

$

In Stock, only 4 left!

0

13

Honda 17702-ZM0-800

TUBE, FUEL

$9.49

$

In Stock, Qty 5

0

14

Honda 19610-Z0L-850ZE

SEE PART DETAILS - SUP; COVER, FAN *R280* (POWER RED)
(Superseded to 19610-Z0L-851ZE)

$42.99

$

In Stock, only 1 left!

0

14

Honda 19610-Z0L-851ZE

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED)
(Superseded to 19611-Z0L-850ZF)

$42.99

$

In Stock, only 1 left!

0

15

Honda 19619-ZL8-300

COLLAR, FAN COVER

$1.49

$

In Stock, Qty 20+

0

16

Honda 33609-GK4-620

COLLAR, FR. TURN SIGNAL

$3.49

$

In Stock, only 1 left!

0

17

Honda 90043-ZL8-000

BOLT, STUD (H=42.5MM)

$4.49

$

In Stock, Qty 6

0

18

Honda 93891-05010-08

SCREW-WASHER (5X10)

$1.49

$

In Stock, Qty 5

0

19

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

20

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0

21

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0
