HRR216 K3 VXA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-7200001 - MZCG-7599999) ROTARY BLADE Parts Diagram

21" Walk-Behind Mower, Made in USA

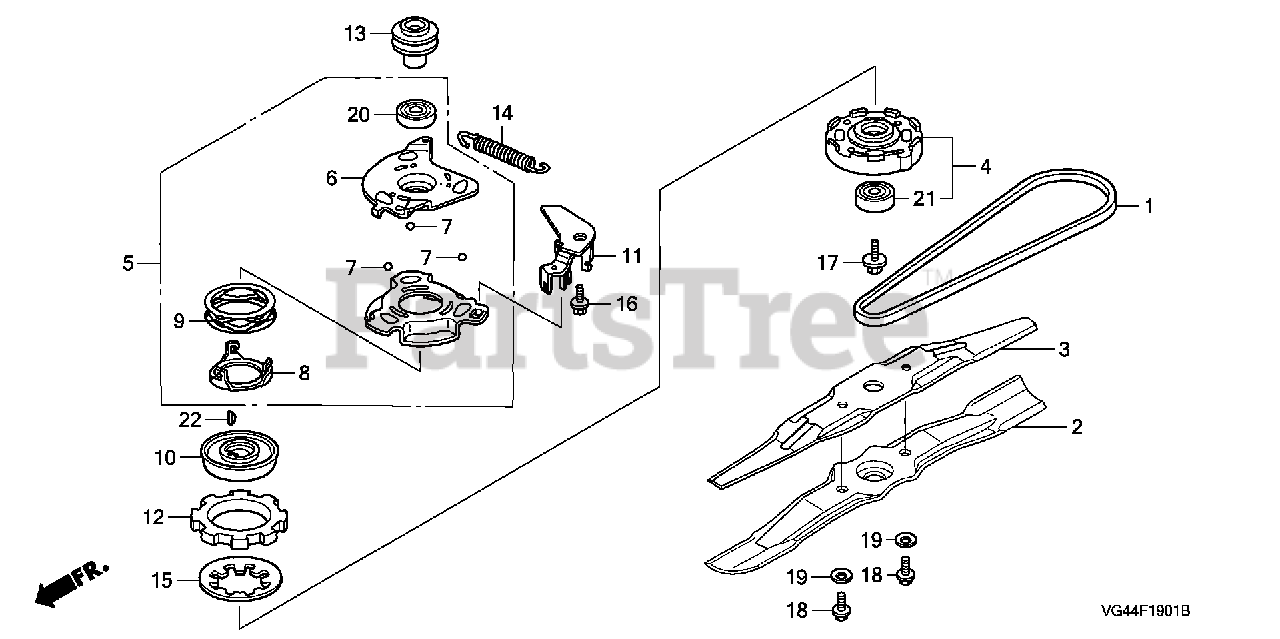

ROTARY BLADE Parts Diagram

  • Title

1

Honda 22431-VL0-B00

V-BELT (3L-37)

$9.99

$

In Stock, only 1 left!

0

2

Honda 72511-VE1-020

SEE PART DETAILS - PRI; BLADE, ROTARY

$21.99

$

In Stock, only 4 left!

0

3

Honda 72531-VE2-020

SEE PART DETAILS - PRI; BLADE, ROTARY (UPPER) (PCD=88MM)

$20.99

$

In Stock, only 2 left!

0

4

Honda 72600-VE1-G00

HOLDER ASSY., BLADE

$37.99

$

In Stock, only 1 left!

0

5

Honda 75110-VE1-R00

PLATE ASSY., BALL CONTROL

$95.99

$

Usually ships in 3-6 days

0

6

Honda 75111-VE1-G01

PLATE, BALL CONTROL

$8.49

$

In Stock, Qty 6

0

7

Honda 75117-VE1-G00

BALL, STEEL

$14.99

$

In Stock, Qty 10

0

8

Honda 75127-VE1-G00

PLATE, SPRING HOOK

$25.99

$

In Stock, only 1 left!

0

9

Honda 75132-VE1-G00

SPRING, BALL PLATE

$51.99

$

In Stock, only 1 left!

0

10

Honda 75141-VE1-G00

DISK, DRIVE

$28.99

$

In Stock, only 1 left!

0

11

Honda 75140-VL0-B00

HOOK, RETURN SPRING

$63.99

$

Usually ships in 3-6 days

0

12

Honda 75150-VE1-G02

DISK, DRIVEN

$37.99

$

In Stock, only 1 left!

0

13

Honda 75162-Z0L-000

PULLEY, DRIVE

$157.99

$

Usually ships in 3-6 days

0

14

Honda 75185-VE1-G00

SPRING ASSY., CLUTCH RETURN

$7.49

$

In Stock, only 1 left!

0

15

Honda 75183-VE1-G01

SPRING, CLUTCH

$29.99

$

In Stock, only 3 left!

0

16

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

17

Honda 90101-VE1-G00

BOLT, FLANGE (10X24)

$1.49

$

In Stock, Qty 7

0

18

Honda 90105-960-710

BOLT, HEX. (10X20)

$2.49

$

In Stock, Qty 20+

0

19

Honda 90502-VG3-000

WASHER, SPRING (10MM)

$1.49

$

In Stock, Qty 20+

0

20

Honda 91051-VE1-G00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6006) (SST)

$31.99

$

In Stock, only 1 left!

0

20

Honda 91051-VE1-R00

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6006) (TSB)
(Superseded to 91051-VE1-G00)

$31.99

$

In Stock, only 1 left!

0

21

Honda 91102-VA4-013

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$25.99

$

In Stock, only 4 left!

0

22

Honda 94401-16150

KEY, WOODRUFF (16X15)

$1.99

$

In Stock, only 4 left!

0
