HRR216 K2 PDAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-6700001 - MZCG-7199999) CYLINDER Parts Diagram

21" Walk-Behind Mower, Made in USA

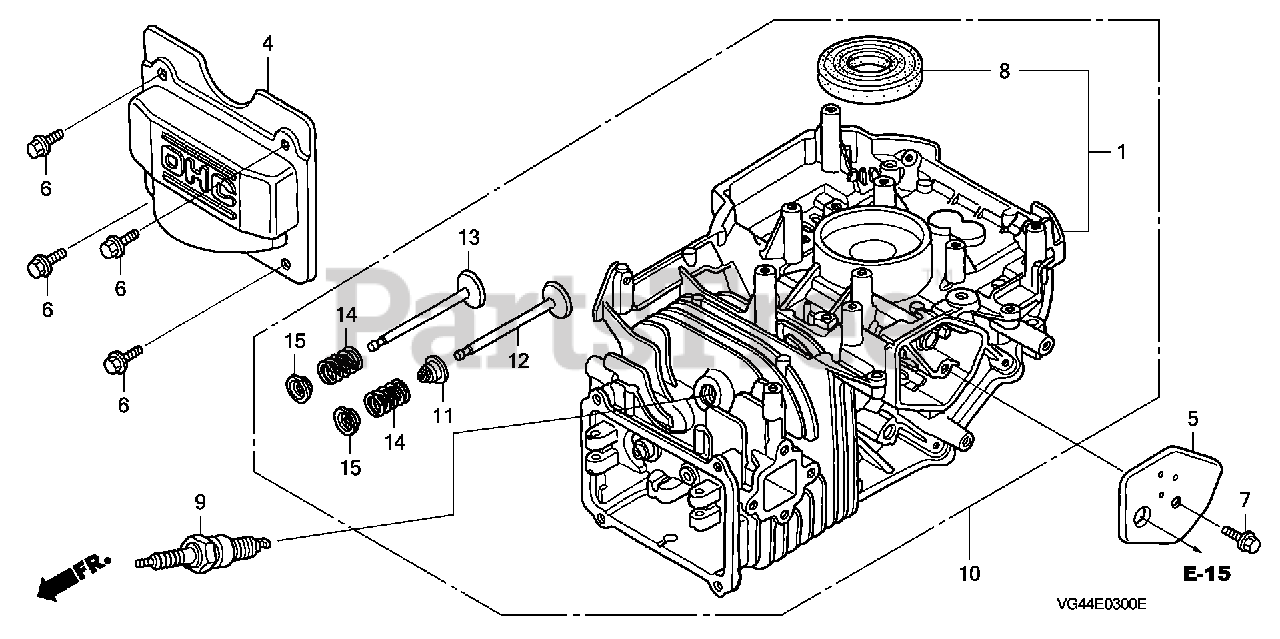

CYLINDER Parts Diagram

  • Title

4

Honda 12310-Z0J-000

SEE PART DETAILS - SUP; COVER, CYLINDER HEAD
(Superseded to 12310-Z8A-000)

$33.99

$

In Stock, only 2 left!

0

4

Honda 12310-Z8A-000

SEE PART DETAILS - PRI; COVER, CYLINDER HEAD

$33.99

$

In Stock, only 2 left!

0

4

Honda 12311-ZL8-000

SEE PART DETAILS - SUP; COVER, HEAD
(Superseded to 12310-Z8A-000)

$33.99

$

In Stock, only 2 left!

0

5

Honda 12355-ZL8-000

COVER, BREATHER (BREATHER VALVE ASSY.)

$9.49

$

In Stock, Qty 5

0

6

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

7

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 3 left!

0

8

Honda 91201-ZL8-003

OIL SEAL (25.4X62X6)

$7.99

$

In Stock, Qty 13

0

9

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

10

Honda 12000-Z0L-505

SEE PART DETAILS - PRI; CYLINDER ASSY.
(Superseded to 12000-Z8B-000)

$92.99

$

Usually ships in 3-6 days

0

11

Honda 12209-ZM0-003

SEAL, VALVE STEM

$9.49

$

In Stock, Qty 5

0

12

Honda 14711-Z0J-000

SEE PART DETAILS - SUP; VALVE, IN. (ROCKNEL)
(Superseded to 14711-ZL8-000)

$68.99

$

In Stock, only 4 left!

0

13

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX. (L8E)

$58.99

$

In Stock, Qty 9

0

13

Honda 14721-Z8B-000

SEE PART DETAILS - PRI; VALVE, EX. (C8E)
(Superseded to 14721-ZL8-000)

$58.99

$

In Stock, Qty 9

0

14

Honda 14751-ZL8-000

SPRING, VALVE

$0.99

$

In Stock, Qty 10

0

15

Honda 14771-ZE1-000

SEE PART DETAILS - SUP; RETAINER, IN. VALVE SPRING
(Superseded to 14771-Z0T-900)

$1.49

$

In Stock, Qty 14

0

15

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING

$1.49

$

In Stock, Qty 14

0
