HRR216 K11 VLAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-1660001 - MZCG-1760000) FLYWHEEL@IGNITION COIL (4) Parts Diagram
21" Walk-Behind Mower, Made in USA

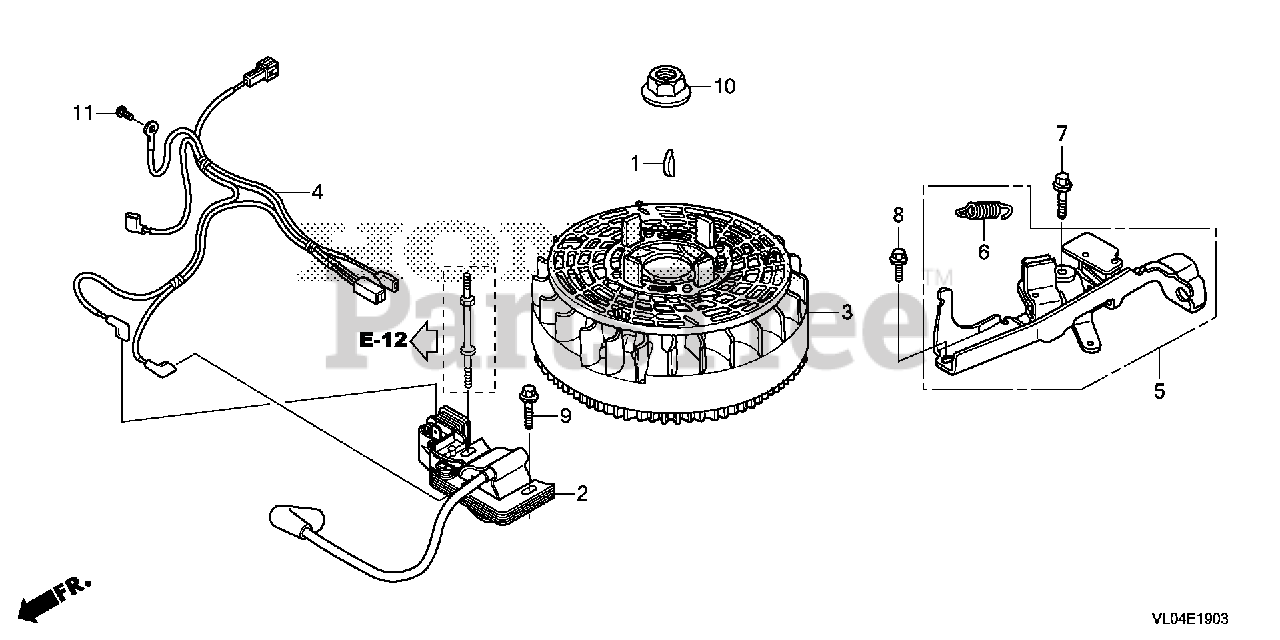

FLYWHEEL@IGNITION COIL (4) Parts Diagram
Honda 13331-Z8B-900
KEY, SPECIAL WOODRUFF (25X18)
$6.49
$
In Stock, Qty 10
Honda 30500-Z0L-M71
COIL ASSY., IGNITION
$
$
Not available
Honda 30500-Z0L-M72
COIL ASSY., IGNITION
$43.99
$
Usually ships in 3-6 days
Honda 31105-Z0Y-922
FLYWHEEL ASSY.
$73.99
$
Usually ships in 3-6 days
Honda 32223-Z0L-M70
WIRE, COMBINATION
$58.99
$
Usually ships in 3-6 days
Honda 75110-Z0L-825
BRAKE SUB-ASSY.
$15.99
$
Usually ships in 3-6 days
Honda 75113-ZM0-000
SPRING, BRAKE LEVER (Honda Code 5580790).
$3.49
$
Usually ships in 3-6 days
Honda 90002-Z0L-820
BOLT, FLANGE (6X23) (CT200)
$0.99
$
Usually ships in 3-6 days
Honda 90014-952-000
BOLT, FLANGE (6X14) (Honda Code 0803619).
$3.49
$
In Stock, only 3 left!
Honda 90018-ZE1-000
BOLT, FLANGE (6X23) (Honda Code 1725050).
$2.49
$
In Stock, only 2 left!
Honda 90201-Z0T-800
NUT, SPECIAL (14MM) (Honda Code 7348378).
$2.99
$
In Stock, only 1 left!
Honda 93500-05008-0A
SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0145540).
$1.49
$
In Stock, Qty 8
