HRR216 K11 VLAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-1660001 - MZCG-1760000) BATTERY@MAIN HARNESS Parts Diagram

21" Walk-Behind Mower, Made in USA

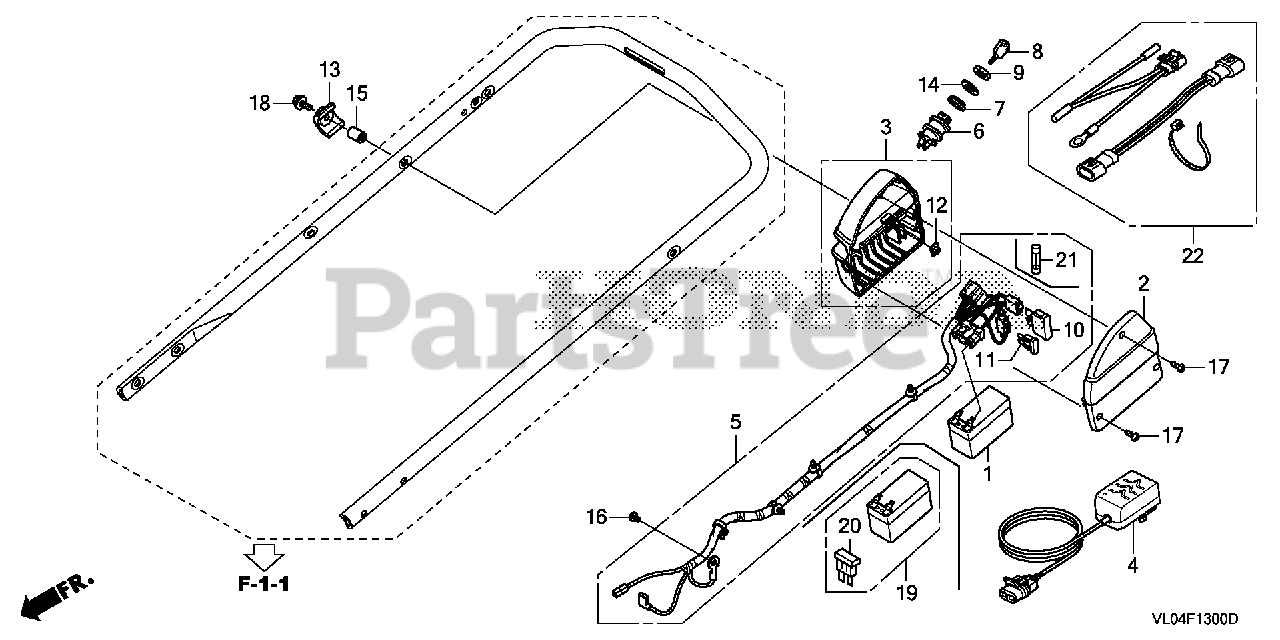

BATTERY@MAIN HARNESS Parts Diagram

  • Title

1

Honda 31500-VH7-801

BATTERY ASSY. (MSDS)

$48.99

$

In Stock, only 4 left!

0

2

Honda 31513-VH7-V00

COVER, BATTERY

$43.99

$

In Stock, only 1 left!

0

3

Honda 31550-VH7-V00

BOX, BATTERY

$33.99

$

Usually ships in 3-6 days

0

4

Honda 06320-VH7-UA2

CHARGER ASSY., BATTERY (FLOAT-CHG)

Note: (Optional).

$257.99

$

In Stock, only 1 left!

0

5

Honda 32100-VL0-W10

HARNESS ASSY., MAIN

$103.99

$

Usually ships in 3-6 days

0

6

Honda 35100-VL0-W01

SWITCH ASSY., MOMENT

$29.99

$

Usually ships in 3-6 days

0

7

Honda 35102-VL0-W00

BASE, MOMENT SWITCH

$12.99

$

Usually ships in 3-6 days

0

8

Honda 35111-VL0-W01

KEY

$4.99

$

Usually ships in 3-6 days

0

9

Honda 35114-VL0-W00

NUT, SWITCH

$0.99

$

In Stock, Qty 7

0

11

Honda 38206-V15-003

FUSE, BLADE (3A)

$2.49

$

In Stock, only 2 left!

0

12

Honda 61304-958-003

NUT, SPECIAL (6X7)

$4.99

$

In Stock, Qty 20+

0

13

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, Qty 6

0

14

Honda 90501-VL0-W00

WASHER, SWITCH

$0.99

$

In Stock, Qty 8

0

15

Honda 91559-VH7-B00

COLLAR, BATTERY MOUNTING

$2.49

$

In Stock, only 3 left!

0

16

Honda 93500-05008-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X8) (Honda Code 0145540).

$1.49

$

In Stock, Qty 8

0

17

Honda 93911-14480

SCREW, TAPPING (4X16)

$1.49

$

In Stock, Qty 10

0

18

Honda 95701-06035-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 1 left!

0

21

Honda 38201-VH7-S30

FUSE A (30A) (SLO-BLO)

$3.49

$

Usually ships in 3-6 days

0
