HRR216 K11 PKAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-1660001 - MZCG-1760000) HANDLEBAR (4) Parts Diagram

21" Walk-Behind Mower, Made in USA

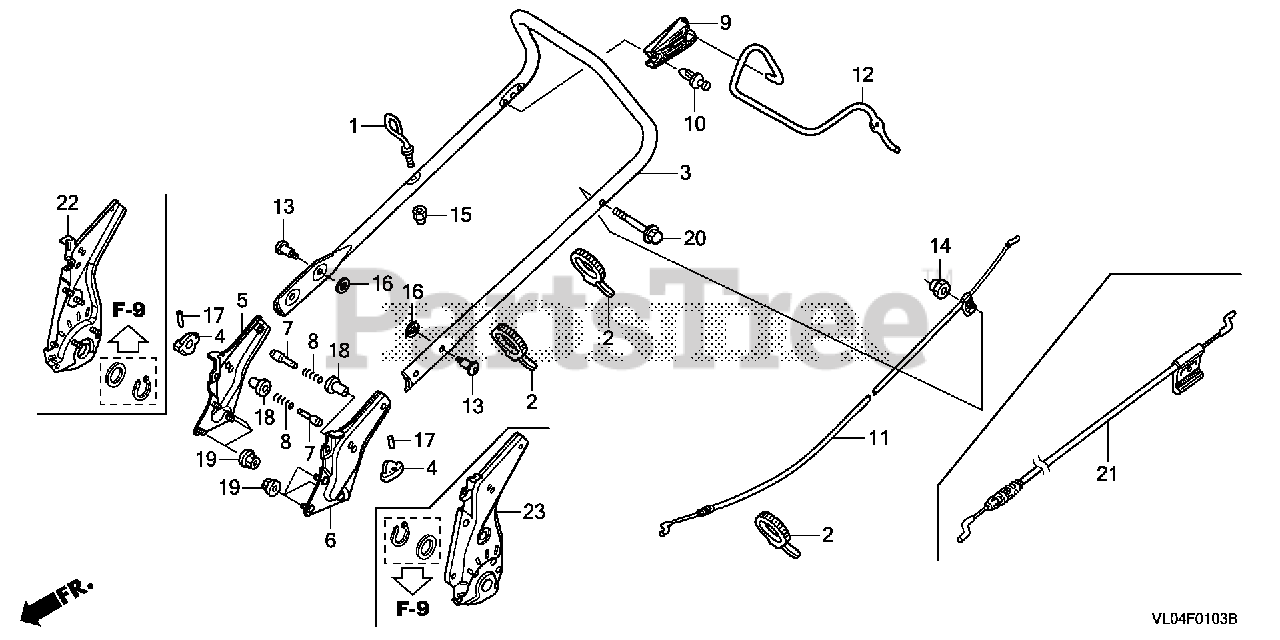

HANDLEBAR (4) Parts Diagram

  • Title

1

Honda 28475-VL0-S00

GUIDE, ROPE

$35.99

$

Usually ships in 3-6 days

0

2

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

3

Honda 53111-VL0-F00ZA

PIPE, HANDLE *NH105* (MAT BLACK)

$68.99

$

Usually ships in 3-6 days

0

4

Honda 53125-VL0-B00ZA

GRIP, HANDLE JOINT *NH164* (GRIP GRAY)

$5.49

$

In Stock, Qty 11

0

7

Honda 53158-VL0-B01

SEE PART DETAILS - PRI; PIN (8MM)

$1.49

$

In Stock, Qty 20+

0

8

Honda 53367-VL0-B00

SPRING, HANDLE ADJUSTING

$8.49

$

In Stock, Qty 5

0

9

Honda 54315-VH7-K00

STOPPER, LEVER

$1.49

$

In Stock, Qty 9

0

10

Honda 54316-VH7-K00

PIN, LOCK

$0.99

$

In Stock, Qty 16

0

12

Honda 75191-VH7-K00ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$14.99

$

Usually ships in 3-6 days

0

13

Honda 90102-VL0-P00

SEE PART DETAILS - PRI; BOLT, SPECIAL (8X32)

$1.99

$

In Stock, Qty 8

0

14

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 14

0

15

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 90503-VL0-B00

WASHER (25MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 90751-VL0-B00

PIN, COILED (2X12)

$0.99

$

In Stock, Qty 20+

0

18

Honda 91551-VL0-B00

COLLAR, HANDLE HEIGHT ADJUSTING

$1.99

$

In Stock, Qty 20+

0

19

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 17

0

20

Honda 95701-06045-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2410967).

$2.99

$

In Stock, Qty 10

0

21

Honda 54530-VL0-S01

CABLE, BRAKE

$18.99

$

In Stock, only 1 left!

0

22

Honda 53130-VL0-T00

STAY, R. HANDLE

$26.99

$

Usually ships in 3-6 days

0

23

Honda 53135-VL0-T00

STAY, L. HANDLE

$26.99

$

Usually ships in 3-6 days

0
