HRR216 K10 VKAA (MZCG) - Honda 21" Walk-Behind Mower, Made in USA (SN: MZCG-1140001 - MZCG-1660000) FLYWHEEL@IGNITION COIL (3) Parts Diagram

21" Walk-Behind Mower, Made in USA

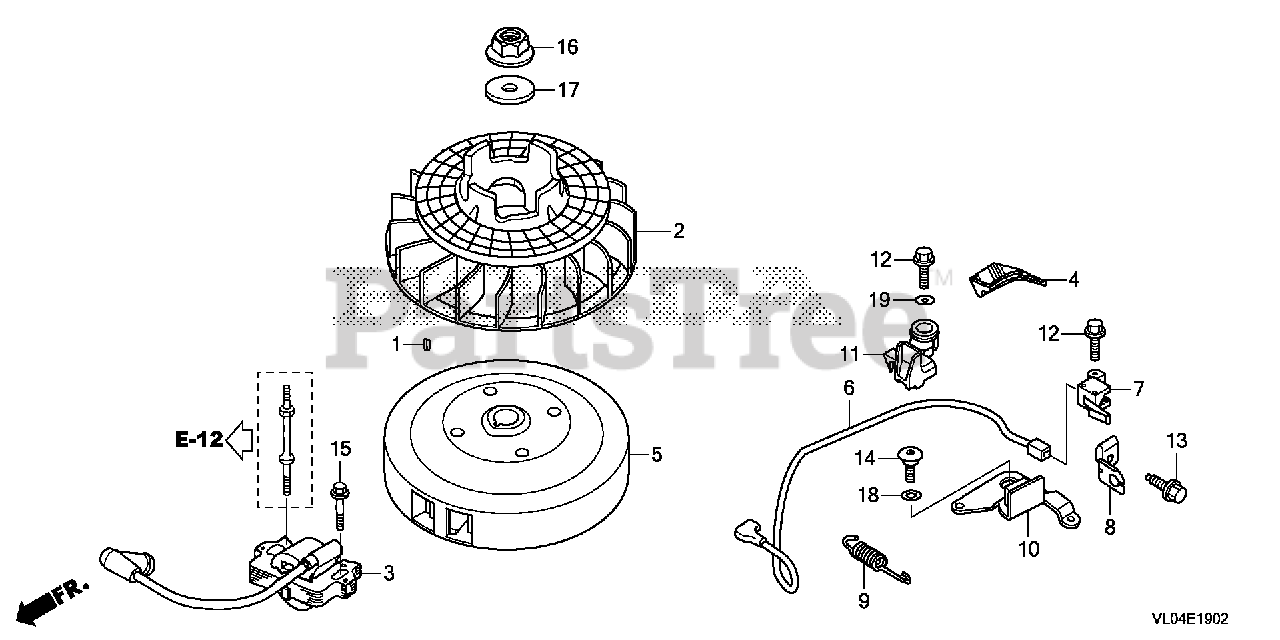

FLYWHEEL@IGNITION COIL (3) Parts Diagram

  • Title

1

Honda 13331-Z8B-900

KEY, SPECIAL WOODRUFF (25X18)

$6.49

$

In Stock, Qty 10

0

2

Honda 19511-Z8B-900

FAN, COOLING

$14.99

$

In Stock, only 1 left!

0

3

Honda 30500-Z8B-902

COIL ASSY., IGN

$18.99

$

In Stock, only 1 left!

0

3

Honda 30500-Z8B-903

COIL ASSY., IGNITION (PHELON)

$22.99

$

Usually ships in 3-6 days

0

4

Honda 30549-Z8B-900

CLAMP, WIRE

$6.99

$

Usually ships in 3-6 days

0

5

Honda 31110-Z0Y-003

SEE PART DETAILS - PRI; FLYWHEEL (FENGLONG)

$44.99

$

In Stock, only 1 left!

0

6

Honda 32195-Z8B-901

WIRE, STOP SWITCH

$12.99

$

In Stock, only 1 left!

0

7

Honda 35120-Z8B-902

SWITCH ASSY., ENGINE STOP

$6.49

$

Usually ships in 3-6 days

0

8

Honda 43416-Z8B-900

BRACKET, BRAKE CABLE

$13.99

$

Usually ships in 3-6 days

0

9

Honda 75113-Z8B-900

SPRING, BRAKE LEVER

$18.99

$

Usually ships in 3-6 days

0

10

Honda 75120-Z8B-901

ARM, BRAKE

$90.99

$

Usually ships in 3-6 days

0

11

Honda 75573-Z8B-901

SPRING, TENSIONER

$6.99

$

In Stock, only 1 left!

0

12

Honda 90001-Z8B-900

BOLT, SPECIAL (5X16)

$1.49

$

In Stock, Qty 10

0

13

Honda 90007-Z8B-900

BOLT, FLANGE (6X14)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 90009-Z8B-900

BOLT, SPECIAL

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (Honda Code 1725050).

$2.49

$

In Stock, only 2 left!

0

16

Honda 90201-Z0T-800

NUT, SPECIAL (14MM) (Honda Code 7348378).

$2.99

$

In Stock, only 1 left!

0

17

Honda 90401-Z8B-900

WASHER (14X45)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 90402-Z8B-900

WASHER, SPECIAL

$0.99

$

Usually ships in 3-6 days

0

19

Honda 94103-05800

WASHER, PLAIN (5MM) (Honda Code 0795971).

$1.49

$

Usually ships in 3-6 days

0
