HRN216 VYAA (MANA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MANA-1000001 - MANA-9999999) CONTROL Parts Diagram

21" Walk-Behind Mower, Made in USA

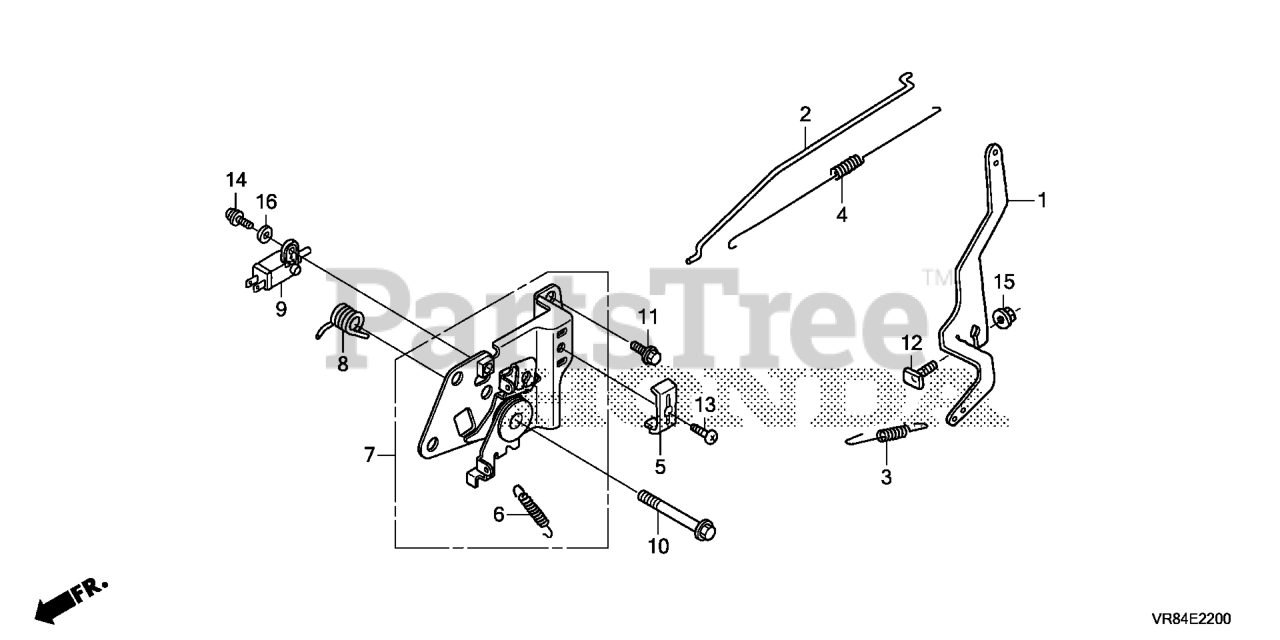

CONTROL Parts Diagram

  • Title

1

Honda 16551-Z9L-000

ARM, GOVERNOR

$6.99

$

Usually ships in 3-6 days

0

2

Honda 16555-Z9L-000

ROD, GOVERNOR

$3.99

$

In Stock, only 2 left!

0

3

Honda 16561-Z9L-000

SPRING, GOVERNOR

$2.99

$

Usually ships in 3-6 days

0

4

Honda 16562-Z9L-000

SPRING, THROTTLE RETURN

$2.99

$

In Stock, only 2 left!

0

5

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

$4.99

$

Usually ships in 3-6 days

0

6

Honda 16576-ZE7-300

SPRING, LEVER

$4.99

$

In Stock, only 1 left!

0

7

Honda 16580-Z9M-870

BASE, CONTROL

$21.99

$

Usually ships in 3-6 days

0

8

Honda 16593-Z0L-000

SPRING, CONTROL LEVER RETURN

$27.99

$

Usually ships in 3-6 days

0

9

Honda 35120-Z9L-811

SWITCH ASSY., ENGINE STOP

$10.99

$

In Stock, Qty 6

0

10

Honda 90014-888-000

BOLT, FLANGE (6X50) (Honda Code 0671537).

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

12

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

$3.49

$

In Stock, only 3 left!

0

13

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

$1.49

$

In Stock, Qty 7

0

14

Honda 93892-04012-00

SCREW-WASHER (4X12) (Honda Code 0485946).

$0.99

$

In Stock, Qty 8

0

15

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

16

Honda 94103-04000

WASHER, PLAIN (4MM) (Honda Code 1510361).

$0.99

$

In Stock, Qty 7

0
