HRN216 VYA (MANA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MANA-1000001 - MANA-9999999) TRANSMISSION Parts Diagram

21" Walk-Behind Mower, Made in USA

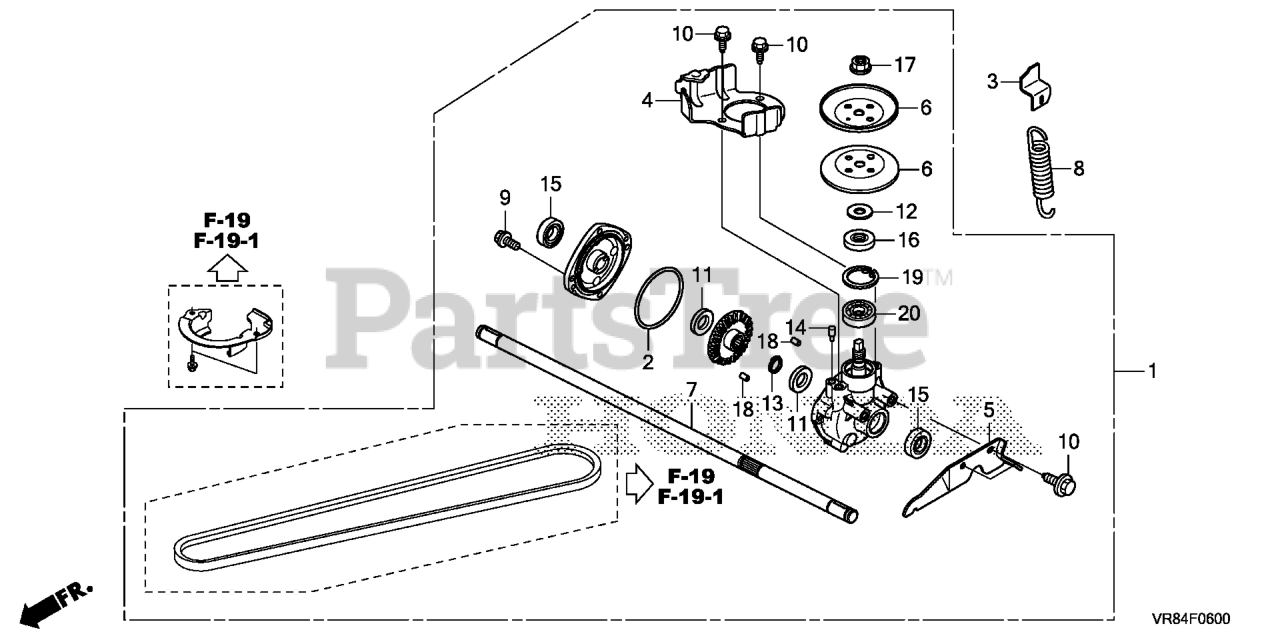

TRANSMISSION Parts Diagram

  • Title

1

Honda 20001-VR8-N01

TRANSMISSION ASSY.
(Superseded to 20001-VR8-N02)

$77.99

$

In Stock, only 1 left!

0

2

Honda 21581-VR8-N00

O-RING, CASE

$1.99

$

Usually ships in 3-6 days

0

3

Honda 22348-VR8-N00

BRACKET, CLUTCH SPRING

$0.99

$

In Stock, only 2 left!

0

4

Honda 22451-VR8-N00

GUIDE, BELT
(Superseded to 22451-VR8-N01)

$5.49

$

In Stock, only 1 left!

0

5

Honda 22455-VR8-N00

STAY, TENSIONER SPRING

$25.99

$

Usually ships in 3-6 days

0

6

Honda 23211-VR8-N00

FACE, DRIVEN

$2.49

$

In Stock, Qty 7

0

7

Honda 23251-VR8-N01

SHAFT, FINAL

$15.99

$

Usually ships in 3-6 days

0

8

Honda 24468-VL0-P00

SPRING, WHEEL TENSION

$1.49

$

In Stock, Qty 6

0

9

Honda 90012-892-000

BOLT, FLANGE (5X16) (Honda Code 0941096).

$1.99

$

In Stock, only 4 left!

0

10

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

11

Honda 90501-VR8-N00

WASHER, PLAIN (12.7X20X0.8)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 90504-VH7-A00

WASHER (10X24)

$0.99

$

In Stock, Qty 10

0

13

Honda 90651-VE2-800

CIRCLIP (OUTER) (12.7MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 90851-VR8-N00

PLUG, SEALING

$2.99

$

Usually ships in 3-6 days

0

15

Honda 91251-VL0-M00

OIL SEAL (12.7X22.2X6.4)

$16.99

$

In Stock, only 4 left!

0

16

Honda 91251-VR8-N00

OIL SEAL (12X28X6)

$2.49

$

In Stock, Qty 5

0

17

Honda 94050-10080

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0623405).

$3.99

$

In Stock, Qty 20+

0

18

Honda 94303-05080

SEE PART DETAILS - PRI; PIN, DOWEL (5X8) (Honda Code 0876862).

$2.99

$

Usually ships in 3-6 days

0

19

Honda 94520-28000

CIRCLIP (INNER) (28MM)

$1.99

$

In Stock, Qty 5

0

20

Honda 96100-60013-00

BEARING, RADIAL BALL (6001)

$14.99

$

Usually ships in 3-6 days

0
