HRN216 VYA (MANA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MANA-1000001 - MANA-9999999) FUEL TANK Parts Diagram

21" Walk-Behind Mower, Made in USA

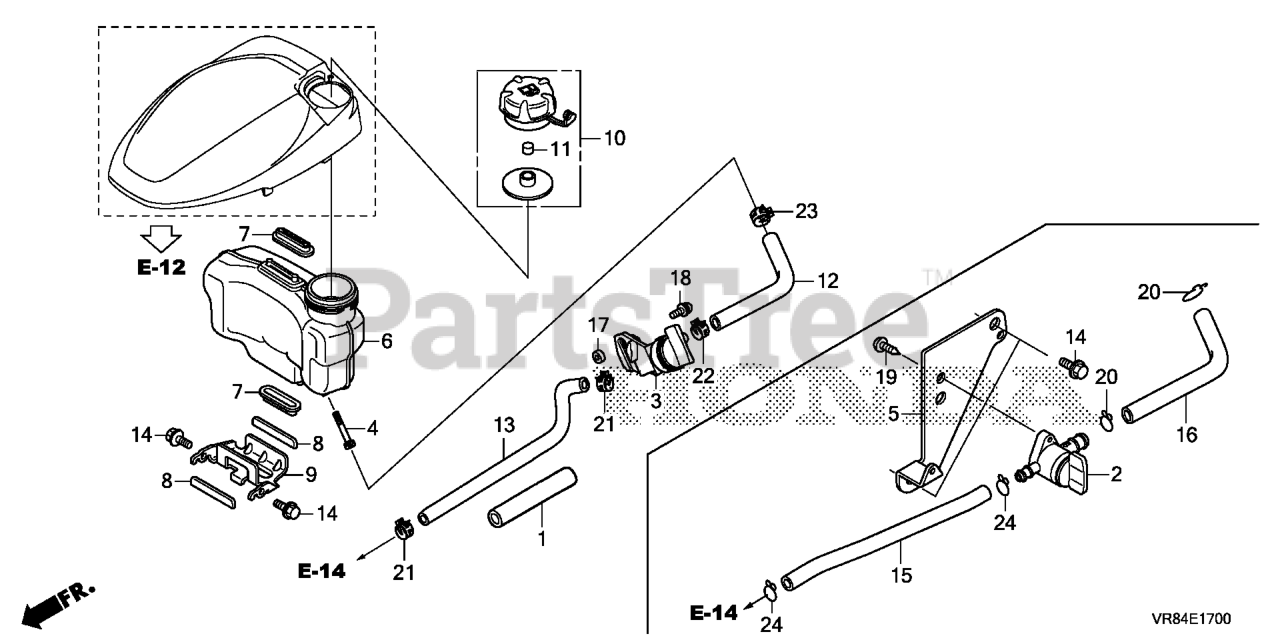

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$5.49

$

In Stock, Qty 12

0

3

Honda 16950-ZM0-003

PETCOCK ASSY. (Honda Code 7425770).

$9.99

$

In Stock, Qty 12

0

4

Honda 16952-Z9R-000

FILTER, FUEL

$7.99

$

In Stock, Qty 9

0

6

Honda 17511-Z9L-000

TANK, FUEL

$39.99

$

Usually ships in 3-6 days

0

7

Honda 17532-Z9L-000

RUBBER A, TANK MOUNTING

$5.99

$

In Stock, only 1 left!

0

8

Honda 17533-Z9L-000

RUBBER B, TANK MOUNTING

$3.49

$

Usually ships in 3-6 days

0

9

Honda 17561-Z9L-000

STAY, FUEL TANK

$3.99

$

Usually ships in 3-6 days

0

10

Honda 17620-Z9L-010

CAP ASSY., FUEL TANK

$44.99

$

In Stock, only 1 left!

0

11

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

12

Honda 17701-Z9L-812

TUBE, FUEL TANK (FKM)

$15.99

$

Usually ships in 3-6 days

0

13

Honda 17702-Z8B-801

TUBE, FUEL (FKM)
(Superseded to 17702-Z8B-802)

$22.99

$

In Stock, only 3 left!

0

14

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$3.49

$

In Stock, only 3 left!

0

17

Honda 91501-Z0L-800

COLLAR, FUEL PETCOCK (Honda Code 6978399).

$1.99

$

In Stock, only 1 left!

0

18

Honda 93891-05010-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X10) (Honda Code 0671636).

$1.49

$

In Stock, Qty 5

0

21

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

22

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

Usually ships in 3-6 days

0

23

Honda 95002-41200-08

CLAMP, TUBE (D12)

$3.49

$

In Stock, only 2 left!

0
