HRN216 VKA (MANA) - Honda 21" Walk-Behind Mower, Made in USA (SN: MANA-1000001 - MANA-9999999) HANDLEBAR Parts Diagram

21" Walk-Behind Mower, Made in USA

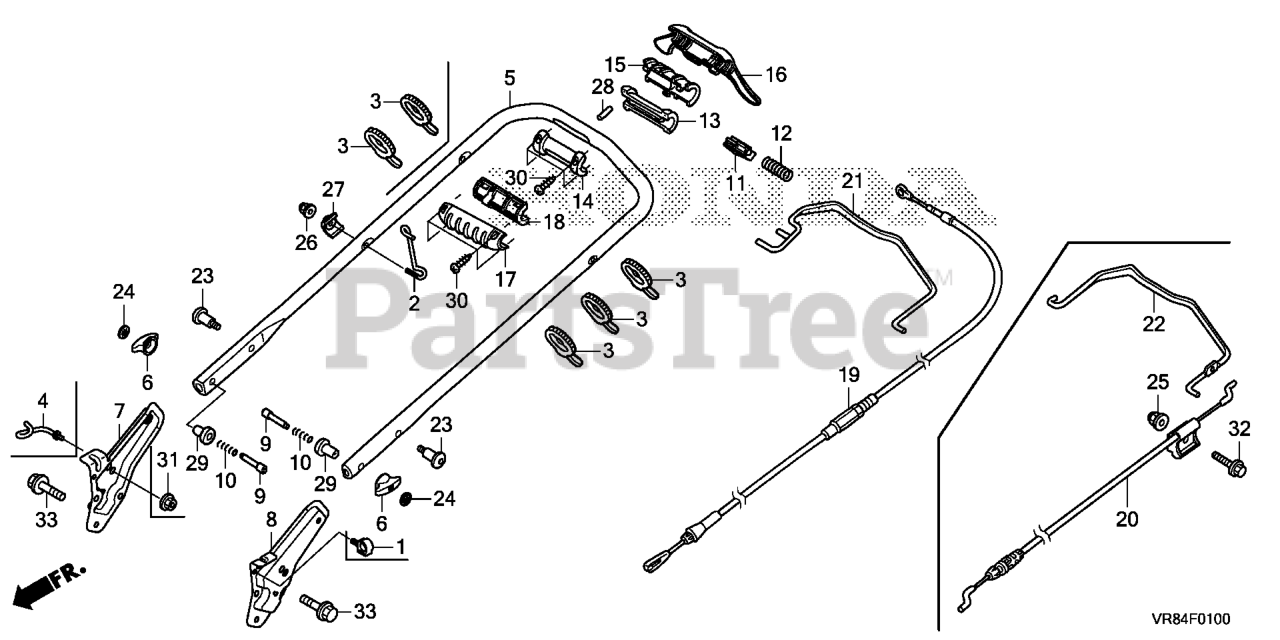

HANDLEBAR Parts Diagram

  • Title

2

Honda 28475-VR8-N00

GUIDE, ROPE

$3.99

$

In Stock, Qty 11

0

3

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

5

Honda 53111-VR8-N00ZA

PIPE, HANDLE *NH105* (MAT BLACK)

$338.99

$

In Stock, only 4 left!

0

6

Honda 53125-VR8-N00ZA

GRIP, HANDLE JOINT *NH164* (GRIP GRAY)

$2.49

$

In Stock, Qty 9

0

7

Honda 53130-VR8-N00

STAY, R. HANDLE

$11.99

$

In Stock, only 1 left!

0

8

Honda 53135-VR8-N00

STAY, L. HANDLE

$36.99

$

In Stock, only 1 left!

0

9

Honda 53158-VR8-N00

PIN (8MM)

$0.99

$

In Stock, Qty 20+

0

10

Honda 53367-VR8-N00

SPRING, HANDLE ADJUSTING

$0.99

$

In Stock, Qty 20+

0

11

Honda 54315-VR8-N00

LEVER, SELECT

$2.49

$

In Stock, only 1 left!

0

12

Honda 54411-VH7-L00

SPRING, SELECT LEVER

$0.99

$

In Stock, Qty 20+

0

13

Honda 54434-VL0-B00

BRACKET, GRIP (UPPER)

$3.49

$

In Stock, Qty 20+

0

14

Honda 54437-VL0-B00

BRACKET, GRIP (LOWER)

$2.99

$

In Stock, Qty 18

0

15

Honda 54442-VL0-P00

COVER, BRACKET (UPPER)

$2.49

$

In Stock, only 1 left!

0

16

Honda 54443-VR8-N00ZA

GRIP, CLUTCH (UPPER) *NH164* (GRIP GRAY)

$12.99

$

In Stock, only 2 left!

0

17

Honda 54446-VR8-N00ZA

GRIP, CLUTCH (LOWER) *NH164* (GRIP GRAY)

$11.99

$

In Stock, only 1 left!

0

18

Honda 54447-VL0-P00

COVER, BRACKET (LOWER)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 54510-VR8-N00

CABLE, CLUTCH

$24.99

$

In Stock, only 1 left!

0

20

Honda 54530-VR8-N00

CABLE, BRAKE
(Superseded to 04602-VR8-N00)

$50.99

$

In Stock, only 3 left!

0

22

Honda 75191-VR8-N00ZA

LEVER, BRAKE *NH105* (MAT BLACK)

$11.99

$

In Stock, only 2 left!

0

23

Honda 90103-VR8-N00

BOLT, SPECIAL (8X30)

$1.49

$

In Stock, Qty 20+

0

24

Honda 90301-VR8-N01

NUT, PUSH (5MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 14

0

26

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

27

Honda 90501-V25-000

WASHER, FRAME JOINT

$0.99

$

In Stock, Qty 6

0

28

Honda 91151-VH7-H50

ROLLER (5X37.3)

$0.99

$

In Stock, Qty 17

0

29

Honda 91552-VR8-N00

COLLAR, HANDLE HEIGHT ADJUSTING

$1.99

$

In Stock, Qty 20+

0

30

Honda 93911-14280

SCREW, TAPPING (4X12)

$0.99

$

In Stock, Qty 20+

0

32

Honda 95701-06045-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2410967).

$2.99

$

In Stock, Qty 10

0

33

Honda 95701-08014-07

BOLT, FLANGE (8X14)

$1.49

$

In Stock, only 4 left!

0
