HRM520 K2 EAA (MBDF) - Honda Autonomous Mower, Made in France (SN: MBDF-1000001 - MBDF-2015062) WHEEL Parts Diagram

Autonomous Mower, Made in France

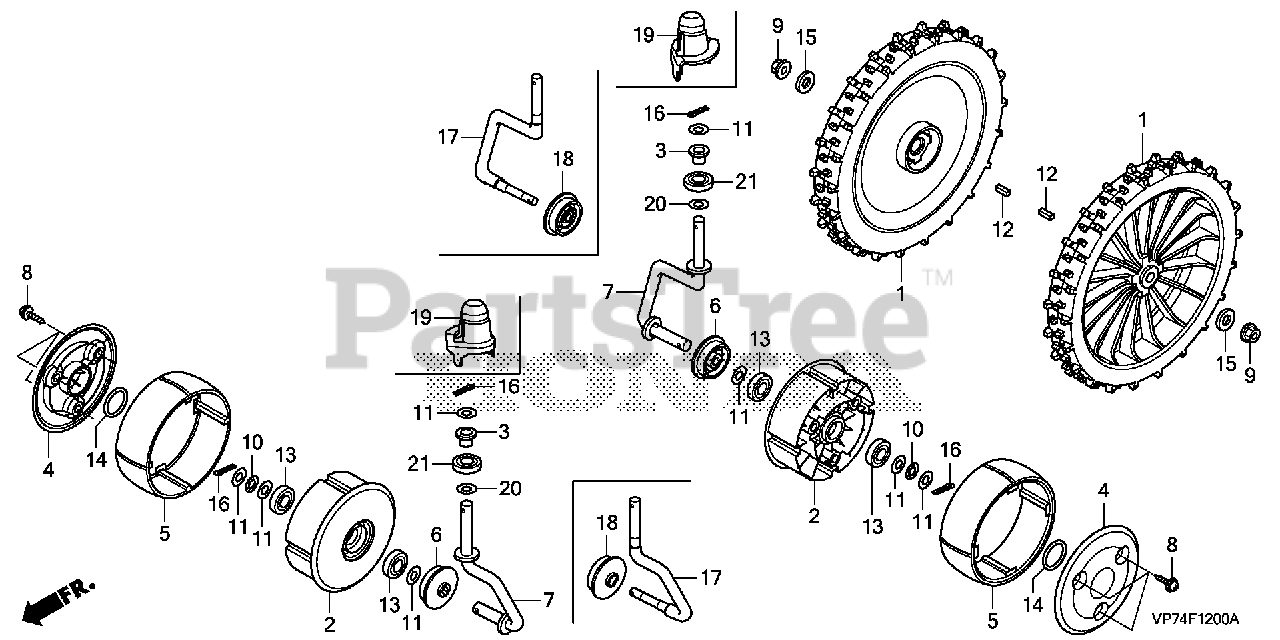

WHEEL Parts Diagram

  • Title

1

Honda 42710-VP7-A01

WHEEL COMP, RR.

$24.99

$

Usually ships in 3-6 days

0

2

Honda 44713-VP9-000

CASTER, FR.

$7.49

$

Usually ships in 3-6 days

0

3

Honda 44714-VP7-003

BUSH, FR. CASTER

$1.99

$

Usually ships in 3-6 days

0

4

Honda 44717-VP7-000

COVER, CASTER

$3.99

$

Usually ships in 3-6 days

0

5

Honda 44718-VP7-000

TIRE, CASTER

$8.49

$

Usually ships in 3-6 days

0

8

Honda 90104-VP7-000

SCREW, TAPPING (5X16)

$0.99

$

Usually ships in 3-6 days

0

9

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90442-VP7-A00

WASHER, WAVE (6MM)

$0.99

$

Usually ships in 3-6 days

0

11

Honda 90505-VP7-000

WASHER, THRUST (6.2X14X1)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 90751-VP7-000

KEY FLAT (4X4X14)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 91052-VP7-003

BEARING (6X17X6)
(Superseded to 91054-VP7-004)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 91352-VP9-000

O-RING, FR. CASTER

$6.99

$

Usually ships in 3-6 days

0

15

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

16

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

17

Honda 44716-VP7-010

ROD, FR. CASTER

$55.99

$

Usually ships in 3-6 days

0

18

Honda 44719-VP7-020

CAP, FR. WHEEL

$1.49

$

Usually ships in 3-6 days

0

19

Honda 50113-VP7-000

CAP, FR. CASTER ROD

$1.49

$

Usually ships in 3-6 days

0

21

Honda 91053-VP7-003

BEARING (7X17X5)
(Superseded to 91055-VP7-004)

$5.99

$

Usually ships in 3-6 days

0
